SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

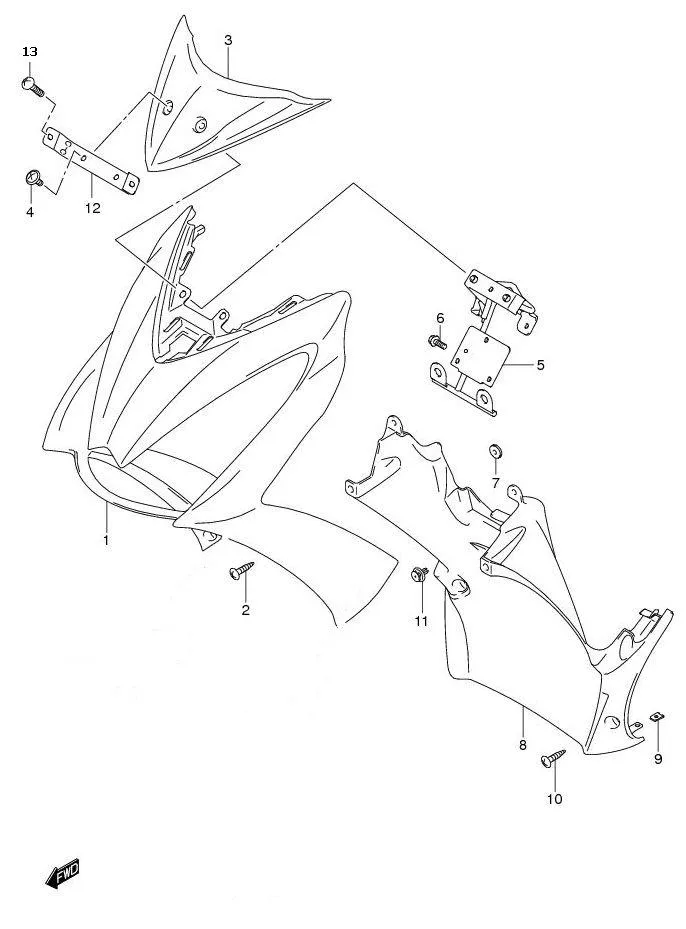

FIG.36 FRONT LEG SHIELD

FIG.36 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-2 48111-41H00-PZ5
SUB: 48111B41H00NPZ5		 SHIELD, LEG FRONT (FRASH GREEN) 1 Rp232.500
1-1 48111-41H00-PV5
SUB: 48111B41H00NPV5		 SHIELD, LEG FRONT (CELEBRATION RED) 1 Rp234.500
1-11 48111-41H00-ZRP
SUB: 48111B41H00NZRP		 SHIELD, LEG FRONT (MAT PLATINUM SILVER) 1 Rp205.000
1-10 48111-41H00-YYL
SUB: 48111B41H00NYYL		 SHIELD, LEG FRONT (MIDNIGHT ORANGE) 1 Rp223.500
1-9 48111-41H00-YYH
SUB: 48111B41H00NYYH		 SHIELD, LEG FRONT (MAT TITANIUM SILVER) 1 Rp287.000
1-8 48111-41H00-YVU
SUB: 48111B41H00NYVU		 SHIELD, LEG FRONT (TITAN BLACK) 1 Rp220.000
1-7 48111-41H00-YVE
SUB: 48111B41H00NYVE		 SHIELD, LEG FRONT (MARINE BLUE) 1 Rp287.000
1-6 48111-41H00-YUL
SUB: 48111B41H00NYUL		 SHIELD, LEG FRONT (SUMMER RED) 1 Rp276.000
1-5 48111-41H00-YUJ
SUB: 48111B41H00NYUJ		 SHIELD, LEG FRONT (MACHO BRIGHT BLUE) 1 Rp246.000
1-4 48111-41H00-YUH
SUB: 48111B41H00NYUH		 SHIELD, LEG FRONT (BRILLIANT WHITE) 1 Rp265.000
1-3 48111-41H00-YTS
SUB: 48111B41H00NYTS		 SHIELD, LEG FRONT (MAJESTIC GOLD) 1 Rp287.000
2 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 4 Rp3.500
3-11 48131-41H00-YYH
SUB: 48131B41H00NYYH		 COVER, FRONT LEG (MAT TITANIUM SILVER) 1 Rp56.500
3-10 48131-41H00-YVU
SUB: 48131B41H00NYVU		 COVER, FRONT LEG (TITAN BLACK) 1 Rp49.000
3-9 48131-41H00-YVE
SUB: 48131B41H00NYVE		 COVER, FRONT LEG (MARINE BLUE) 1 Rp49.500
3-8 48131-41H00-YVD
SUB: 48131B41H00NYVD		 COVER, FRONT LEG (DARK GRAY) 1 Rp50.000
3-5 48131-41H00-YTB
SUB: 48131B41H00NYTB		 COVER, FRONT LEG (SUMMER RED) 1 Rp56.500
3-7 48131-41H00-YUL
SUB: 48131B41H00NYUL		 COVER, FRONT LEG (SUMMER RED) 1 Rp49.000
3-6 48131-41H00-YTS
SUB: 48131B41H00NYTS		 COVER, FRONT LEG (MAJESTIC GOLD) 1 Rp56.500
3-4 48131-41H00-PZ5
SUB: 48131B41H00NPZ5		 COVER, FRONT LEG (FRASH GREEN) 1 Rp50.000
3-3 48131-41H00-PV5
SUB: 48131B41H00NPV5		 COVER, FRONT LEG (CELEBRATION RED) 1 Rp50.000
3-2 48131-41H00-PBK
SUB: 48131B41H00NPBK		 COVER, FRONT LEG (SOLARISE SILVER) 1 Rp50.000
3-1 DISCONTINUE
SUB: 48131B41H00N291		 COVER, FRONT LEG (BLACK 50% GLOSS) 1 -
4 51875-07H00-000
SUB: 51875B07H00N000		 SCREW 2 Rp9.000
5 48150-41H10-000 BRACE, LEG SHIELD 1 Rp269.000
6 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
7 09320-08028-000
SUB: 09320B08028N000		 CUSHION 2 Rp11.500
8 48137-41H00-000
SUB: 48137B41H00N000		 SHIELD, LOWER FRONT (BLACK) 1 Rp45.500
9 09148-05045-000
SUB: 09148B05045N000		 NUT 6 Rp4.000
10 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 8 Rp3.500
11 DISCONTINUE
SUB: 09409B07336N000		 CLIP 1 -
12 DISCONTINUE
SUB: 48190B41H10N000		 PLATE, LICENSE 1 -
13 02142-0645B-000
SUB: 02142B0645BN000		 SCREW 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
