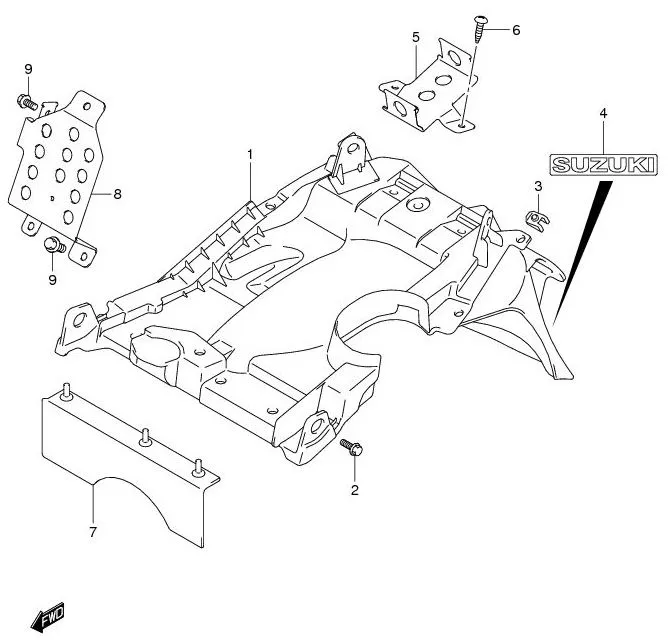

FIG.44 REAR FENDER

FIG.44 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-41H00-000
SUB: 63111B41H00N000		 FENDER, REAR 1 Rp66.000
2 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
3 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
4 68171-41H10-000
SUB: 68171B41H10N000		 EMBLEM 1 Rp3.000
5 DISCONTINUE
SUB: 63254B41H10N000		 BRACKET, UNIT 1 -
6 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
7 63411-41H00-000
SUB: 63411B41H00N000		 MUDGUARD 1 Rp44.000
8 47410-41H00-000
SUB: 47410B41H00N000		 PLATE, ELECTRIC PARTS 1 Rp18.000
9 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 3 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
