SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

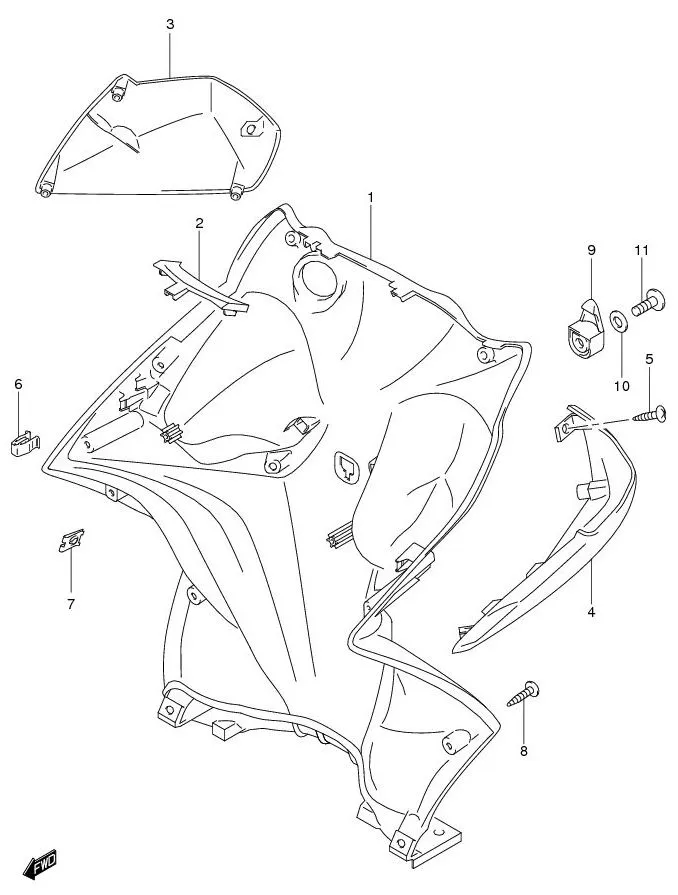

FIG.38 LEG SHIELD COVER

FIG.38 LEG SHIELD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 92111-41H00-000
SUB: 92111B41H00N000		 COVER, LEG SHIELD (BLACK) 1 Rp80.000
2 92113-41H00-000
SUB: 92113B41H00N000		 COVER, LEG UPPER (BLACK) 1 Rp80.000
3 92161-41H00-000
SUB: 92161B41H00N000		 RACK, LEG RH (BLACK) 1 Rp16.500
4 92162-41H00-000
SUB: 92162B41H00N000		 RACK, LEG LH (BLACK) 1 Rp16.500
5 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 2 Rp4.000
6 09409-08326-000
SUB: 09409B08326N000		 CLIP 2 Rp8.000
7 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
8 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 12 Rp3.500
9 92171-32G00-291 HOOK, LEG SHIELD (BLACK) 1 Rp15.500
10 09160-06153-000
SUB: 09160B06153N000		 WASHER 1 Rp5.500
11 02142-0612A-000
SUB: 02142B0612BN000		 SCREW 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
