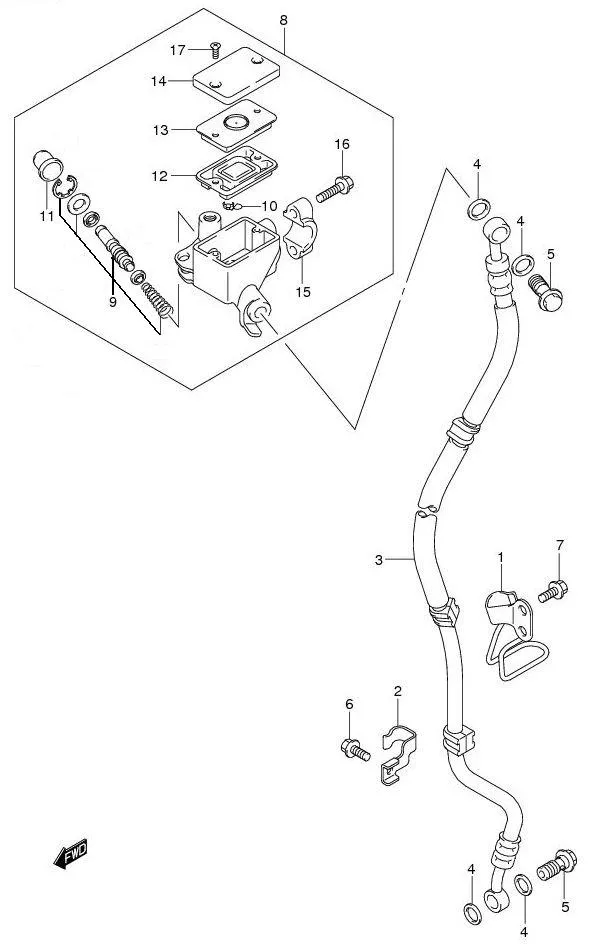

FIG.51 FRONT MASTER CYLINDER

FIG.51 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59240-41H00-000
SUB: 59240B41H00N000		 CLAMP, FR BRAKE HOSE LOWER 1 Rp25.500
2 59245B41H00N000 CLAMP, FR BRAKE HOSE LOWER 1 -
3 59480-41H20-000
SUB: 59480B41H20N000		 HOSE, FRONT BRAKE 1 Rp121.000
4 09168-10033-000
SUB: 09168B10033N000		 WASHER, BRAKE FLUID 4 Rp8.500
5 09360-10062-000
SUB: 09360B10062N000		 BOLT, BRAKE FLUID 2 Rp13.000
6 01550-0610B-000
SUB: 01550B0610BN000		 BOLT, BRAKE HOSE CLAMP 1 Rp3.000
7 01550-0612B-000 BOLT, BRAKE HOSE CLAMP 2 Rp16.500
8 59600-41H00-000
SUB: 59600B41H00N000		 CYLINDER ASSY, FRONT MASTER 1 Rp915.500
9 59600-46800-000
SUB: 59600B46800N000		 •PISTON CUP SET 1 Rp75.000
10 59664-32F00-000
SUB: 59664B32F00N000		 •PROTECTOR 1 Rp20.500
11 59666-44300-000
SUB: 59666B44300N000		 •BOOT COMP 1 Rp16.000
12 59667-44B00-000
SUB: 59667-44B00L000		 •DIAPHRAGM 1 Rp13.000
13 59668-21D20-000
SUB: 59668B21D20N000		 •PLATE DIAPHRAGM 1 Rp3.000
14 59669-21D20-000
SUB: 59669B21D20N000		 •CAP, BODY M/C 1 Rp40.000
15 59671-36500-000
SUB: 59671B36500N000		 •HOLDER 1 Rp23.000
16 59675-02FA0-000
SUB: 59675B02FA0N000		 •CROWN BOLT 6X22 2 Rp9.000
17 69689-49300-000
SUB: 69689B49300N000		 •SCREW FLAT 4X12 2 Rp3.000
18 990H0-23010-P05
SUB: 99000B05BFDN000		 BRAKE FLUID 50ML 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
