SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

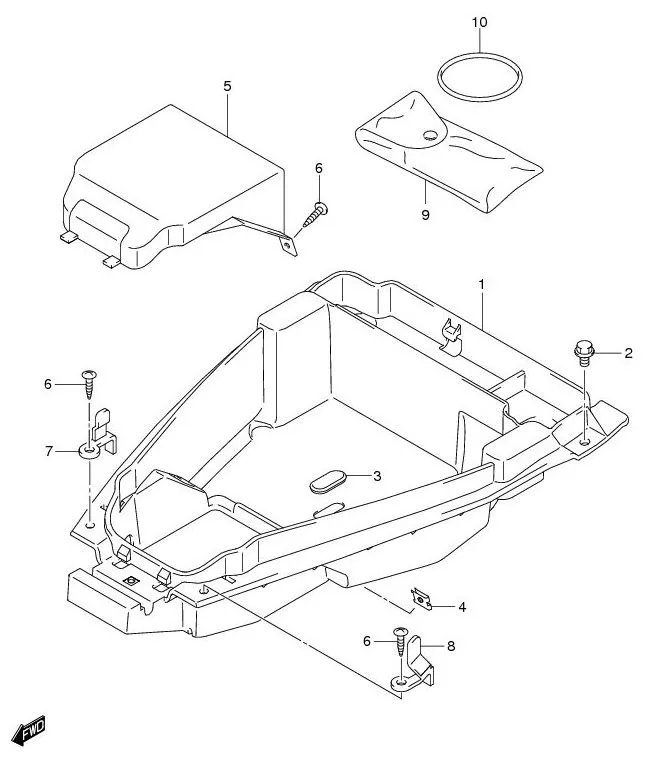

FIG.39 LUGGAGE BOX

FIG.39 LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92210-41H20-000
SUB: 92210B41H20N000		 BOX, LUGGAGE 1 Rp103.000
2 09111-06107-000
SUB: 63161B43E00N000		 BOLT 4 Rp4.000
3 92223-41H10-000
SUB: 92223B41H10N000		 PLUG 1 Rp6.000
4 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
5 DISCONTINUE
SUB: 92212B41H00N000		 LID, BATTERY 1 -
6 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 4 Rp3.500
7 DISCONTINUE
SUB: 95721B41H00N000		 HOLDER, HELMET RH 1 -
8 DISCONTINUE
SUB: 95722B41H00N000		 HOLDER, HELMET LH 1 -
9 96510-41H01-000
SUB: 96510B41H01N000		 TOOL ASSY 1 Rp32.000
10 47435-46G00-000
SUB: 47435B46G00N000		 BAND, TOOL 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
