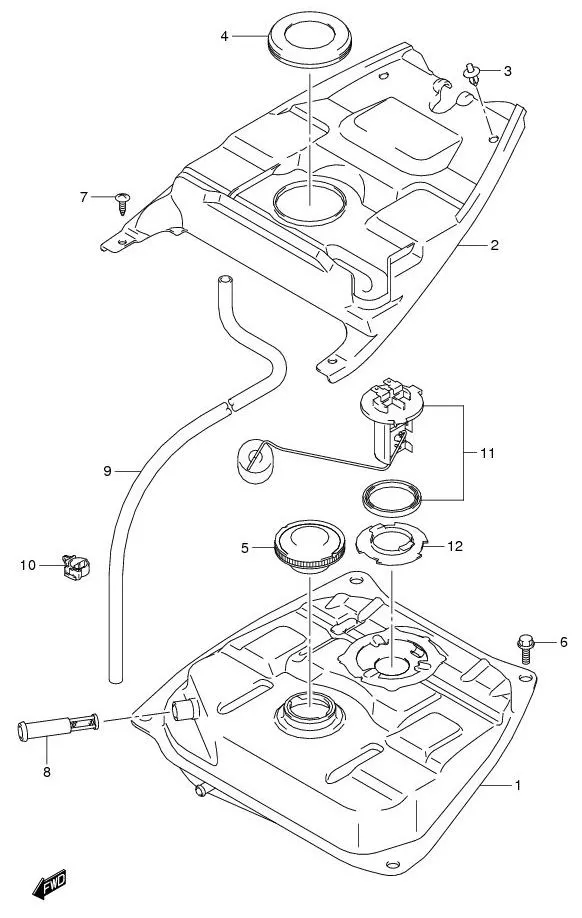

FIG.32 FUEL TANK

FIG.32 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-41H30-000
SUB: 44110B41H30N000		 TANK, FUEL 1 Rp247.000
2 44271-41H10-000
SUB: 44271B41H10N000		 COVER, TANK 1 Rp56.000
3 09409-06314-5PK CLIP (BLACK) 2 Rp3.500
4 44261-41H10-000
SUB: 44261B41H10N000		 RUBBER, TANK 1 Rp5.500
5 44210-35014AS01
SUB: 44210-35X01-000		 CAP, TANK 1 Rp21.500
6 01550B0612BN000 BOLT 4 Rp2.500
7 44322-27001-000
SUB: 44322B27001N000		 FILTER, FUEL 1 Rp16.500
8 DISCONTINUE
SUB: 44423B41H00N000		 HOSE, DRAIN 1 -
9 09403-16308-000 CLAMP 1 Rp14.000
10 34810-41H20-000
SUB: 34810B41H20N000		 GAUGE, FUEL LEVEL 1 Rp96.000
11 34886-03A00-000
SUB: 34886B03A00N000		 PLATE 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
