SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

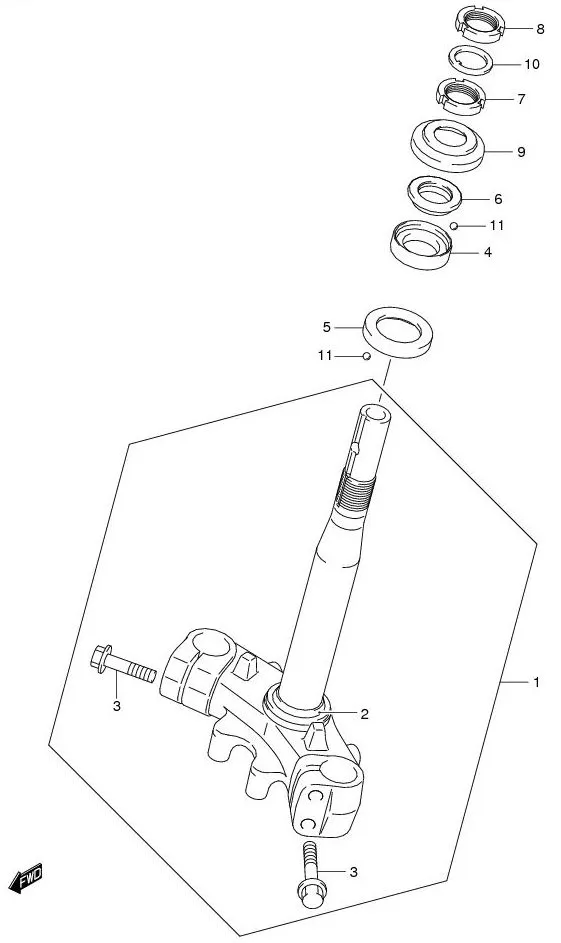

FIG.48 STEERING STEM

FIG.48 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-41H20-000
SUB: 51410B41H20N000		 BRACKET, UNDER 1 Rp581.000
2 51622-41H00-000
SUB: 51622B41H00N000		 •RACE 1 Rp56.500
3 51166-41H00-000
SUB: 51166B41H00N000		 BOLT 4 Rp7.500
4 51611-41H01-000
SUB: 51611B41H00N000		 RACE, STEERING INNER UPPER 1 Rp20.500
5 51612-41H01-000
SUB: 51612B41H00N000		 RACE, STEERING INNER LOWER 1 Rp20.500
6 51621-41H00-000
SUB: 51621B41H00N000		 RACE, STEERING OUTER UPPER 1 Rp31.000
7 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM 1 Rp20.000
8 51631-05000-000
SUB: 51631B05000N000		 NUT, STEERING STEM LOCK 1 Rp20.000
9 51643-06001-000
SUB: 51643-06001L000		 SEAL, STEERING DUST UPPER 1 Rp3.000
10 51645-41H00-000
SUB: 51645B41H00N000		 CUSHION, COVER LOWER 1 Rp3.000
11 09166-24001-000
SUB: 09166B24001N000		 WASHER STEERING STEM 1 Rp4.500
12 06111-06004-000
SUB: 06111B06003N000		 BALL, STEERING STEEL 51 Rp1.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
