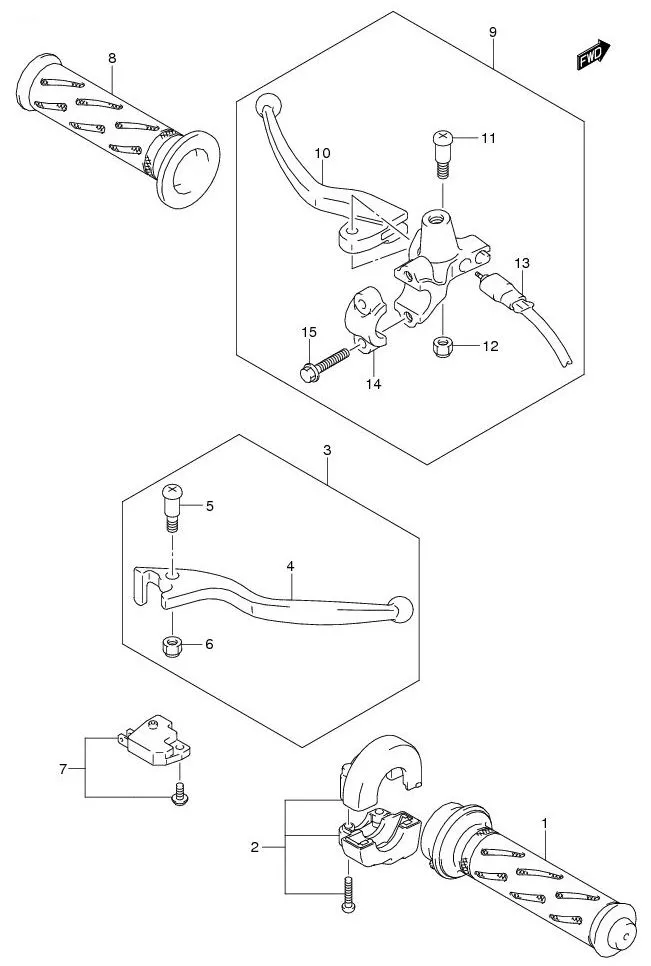

FIG.43 HANDLE LEVER

FIG.43 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-41H00-000
SUB: 57110B41H00N000		 GRIP, THROTTLE 1 Rp37.000
2 57100-09G01-000
SUB: 57100B09G01N000		 CASE ASSY, THROTTLE 1 Rp49.000
3 57300-41HB0-000
SUB: 57300B41HB0N000		 LEVER ASSY, RH 1 Rp52.000
4 57421-41HB0-000
SUB: 57421B41HB0N000		 •LEVER 1 Rp25.500
5 57431-29C20-000
SUB: 57431B29C20N000		 •BOLT, PIVOT 1 Rp5.000
6 08319-2106A-000
SUB: 08319B2106AN000		 •NUT 1 Rp5.000
7 57460-41H00-000
SUB: 57460B41H00N000		 SWITCH ASSY, STOP 1 Rp69.500
8 57211-41H00-000
SUB: 57211B41H00N000		 GRIP, LH 1 Rp22.500
9 57500-41H20-000
SUB: 57500B41H02N000		 LEVER ASSY, LH 1 Rp190.500
10 57621-46G00-000
SUB: 57621B46G00N000		 •LEVER 1 Rp125.500
11 57431-09G20-000
SUB: 57431B09G20N000		 •BOLT, LEVER 1 Rp7.000
12 08319-2106A-000
SUB: 08319B2106AN000		 •NUT 1 Rp5.000
13 57470-10J40-000
SUB: 57470B10J10N000		 •SWITCH ASSY, BRAKE 1 Rp46.500
14 DISCONTINUE
SUB: 59671B09G00N000		 •HOLDER 1 -
15 DISCONTINUE
SUB: 01550B0625AN000		 •BOLT, HOLDER 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
