SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.1A CYLINDER HEAD (FL125RCDF)FIG.2 CYLINDER (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.2A CYLINDER (FL125RCDF)FIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.6A FLYWHEEL (FL125RCDM/RMD)FIG.7 CRANK BALANCERFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETOR (FL125SC/SD/RD/RCDM/RMD)FIG.10A THROTTLE BODY (FL125RCDF)FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)FIG.11A AIR CLEANER (FL125RCDF)FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)FIG.12A MUFFLER (FL125RCDF)FIG.13 OIL PUMPFIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)FIG.14A FUEL HOSE (FL125RCDF)FIG.15 CLUTCH (FL125SDK7/SDK8/RDK8)FIG.15A CLUTCH (FL125RCDFK8)FIG.15B CLUTCH (FL125RCDMK7/RCDMK8)FIG.16 TRANSMISSIONFIG.17 GEAR SHIFTING (FL125SDK7/SDK8/RDK8/RCDFK8)FIG.17A GEAR SHIFTING (FL125RCDMK7/RCDMK8)FIG.18 KICK STARTER

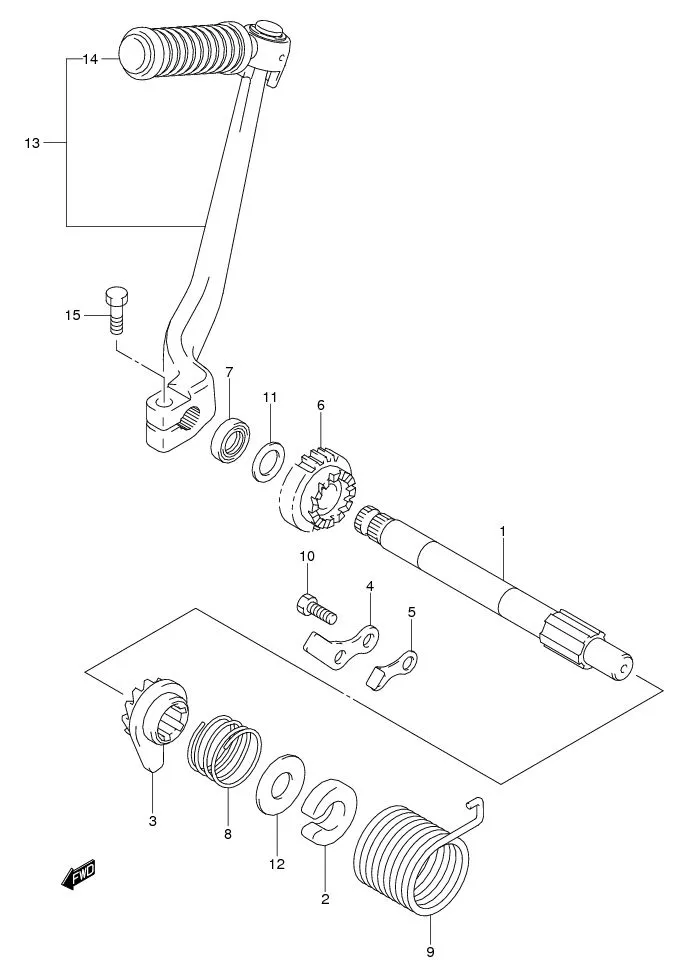

FIG.18 KICK STARTER

FIG.18 KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26211-16H00-000
SUB: 26211B16H00N000		 SHAFT, KICK STARTER 1 Rp85.500
2 DISCONTINUE
SUB: 26221B30A00N000		 GUIDE, KICK STARTER SPR 1 -
3 DISCONTINUE
SUB: 26231B09G00N000		 STARTER, KICK 1 -
4 26232-09410-000
SUB: 26232B09401N000		 GUIDE, KICK STARTER 1 Rp6.500
5 26233-09400-000
SUB: 26233B09400N000		 STOPPER, KICK STARTER 1 Rp3.000
6 DISCONTINUE
SUB: 26241B16H00N000		 GEAR, KICK STARTER DRIVE 1 -
7 09283-14013-000
SUB: 09283B14009N000		 SEAL, KICK STARTER 1 Rp5.500 14X24X6.0
8 09440-30007-000
SUB: 09440B30007N000		 SPRING, KICK STARTER 1 Rp3.000
9 09448-38004-000
SUB: 09448B38004N000		 SPRING, KICK SHAFT RETURN 1 Rp21.000
10 01500-0616A-000
SUB: 01500B0616BN000		 BOLT, KICK STARTER STOPPER 2 Rp6.500
11 09181-14167-000
SUB: 09181B14167N000		 WASHER, KICK DRIVE GEAR 1 Rp13.000 14X22X1.0
12 08211-14321-000
SUB: 08211B14321N000		 PLATE, KICK STARTER SPRING 1 Rp10.500
13-1 26300-16H61-000
SUB: 26300B16H00N000		 LEVER ASSY, KICK STARTER 1 Rp70.500 FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8
13-2 26300-16H61-000
SUB: 26300B16H60N000		 LEVER ASSY, KICK STARTER 1 Rp70.500 FL125RCDFK8
14-1 26352-16H10-000
SUB: 26352B16H10N000		 •RUBBER, KICK PEDAL 1 Rp4.500 FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8
14-2 26352-16H10-000
SUB: 26352B16H10N000		 •RUBBER, KICK PEDAL 1 Rp4.500 FL125RCDFK8
15 26314-33G00-000
SUB: 26314B33G00N000		 BOLT, KICK PEDAL 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
