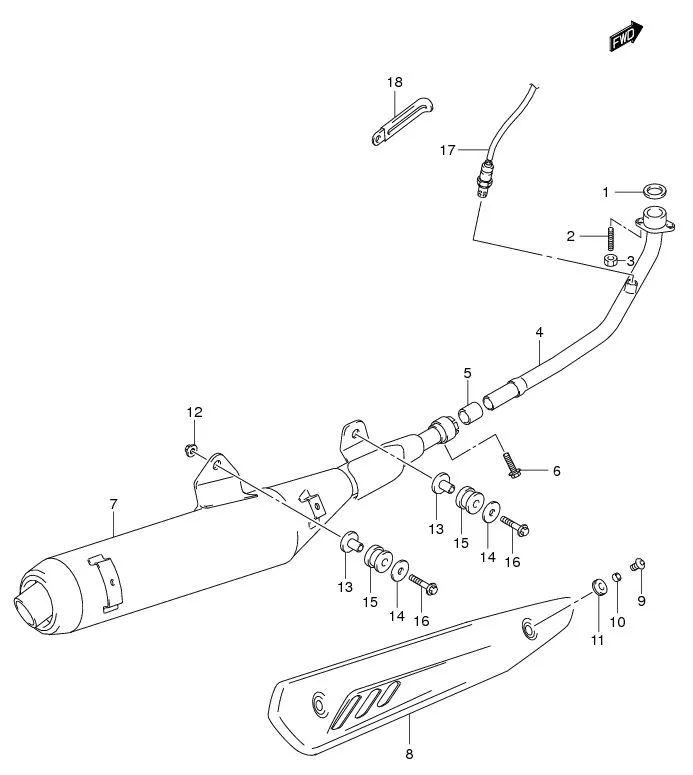

FIG.12A MUFFLER (FL125RCDF)

FIG.12A MUFFLER (FL125RCDF)
No No. Part Description Qty Price Per Pcs Remarks
1 14181-09D00-000
SUB: 14181B09D00N000		 GASKET, EXHAUST PIPE 1 Rp4.500
2 09108-08280-000
SUB: 09108B08280N000		 BOLT, STUD 2 Rp8.000
3 08316-1008A-000
SUB: 08316B1008BN000		 NUT 2 Rp3.500
4 DISCONTINUE
SUB: 14150B16HB0N000		 PIPE, EXHAUST 1 -
5 14771-26F00-000 CONNECTOR 1 Rp96.500
6 01550-0835B-000
SUB: 01550B0835BN000		 BOLT 1 Rp4.500
7 14310-16HE1-000
SUB: 14301B16HB0N000		 MUFFLER ASSY 1 Rp2.025.500
8 14780-16HB0-000
SUB: 14780B16HB0N000		 COVER, MUFFLER 1 Rp206.000
9 51875-07H00-000
SUB: 51875B07H00N000		 SCREW 2 Rp9.000
10 09180-06256-000
SUB: 09180B06256N000		 SPACER 2 Rp3.000
11 09320-08051-000
SUB: 09320B08051N000		 CUSHION 2 Rp3.000
12 08316-1008A-000
SUB: 08316B1008BN000		 NUT 1 Rp3.500
13 DISCONTINUE
SUB: 09180B08212N000		 SPACER, MUFFLER SPRT 2 -
14 09160-08149-000
SUB: 09160B08149N000		 WASHER 2 Rp6.500
15 09320-12078-000 CUSHION 2 Rp18.000
16 01550-0840B-000
SUB: 01550B0840BN000		 BOLT 2 Rp5.500
17 DISCONTINUE
SUB: 18213B16H00N000		 SENSOR, OXYGEN 1 -
18 09404-06429-000
SUB: 09404B06429N000		 CLAMP 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
