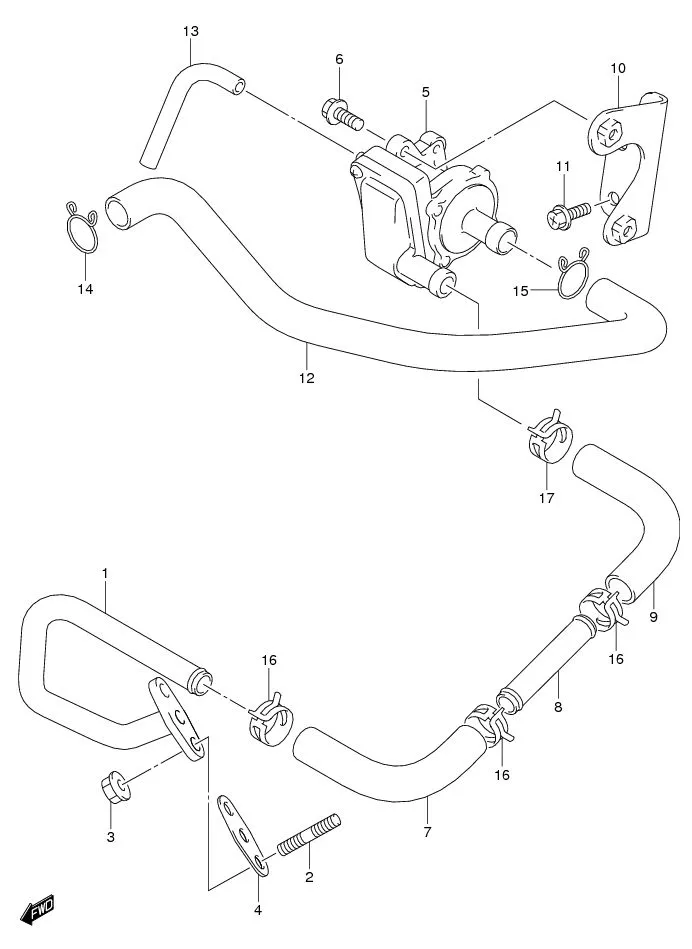

FIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)

FIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 18410B16H00N000		 PIPE, 2ND AIR 1 -
2 01421-0616A-000
SUB: 01421B0616BN000		 BOLT 2 Rp3.500
3 08316-1006A-000
SUB: 08316B1006BN000		 NUT 2 Rp2.000
4 18441-16H10-000
SUB: 18441B16H10N000		 GASKET 1 Rp5.500
5 18450-16H10-000
SUB: 18450B16H10N000		 VALVE ASSY, 2ND AIR 1 Rp176.500
6 01547-0616A-000
SUB: 01547B0616BN000		 BOLT 2 Rp6.500
7 DISCONTINUE
SUB: 18461B16H00N000		 HOSE, 2ND AIR VALVE NO.1 1 -
8 18421-16H00-000
SUB: 18421B16H00N000		 PIPE, 2ND AIR 1 Rp34.500
9 DISCONTINUE
SUB: 18462B16H00N000		 HOSE, 2ND AIR VALVE NO.2 1 -
10 18610-16H00-000
SUB: 18610B16H00N000		 BRACKET 1 Rp23.500
11 01550B0612BN000 BOLT 2 Rp2.500
12 18711-16H00-000
SUB: 18711B16H00N000		 HOSE, AIR CLEANER 1 Rp12.000
13 18762-16H00-000
SUB: 18762B16H00N000		 HOSE, VACUUM 1 Rp4.500
14 09401-13409-000
SUB: 09401B13409N000		 CLIP 1 Rp8.500
15 09401-15101-000
SUB: 09401B15101N000		 CLIP 1 Rp3.000
16 09401-17402-000 CLIP 3 Rp7.500
17 09401-18406-000
SUB: 09401B18406N000		 CLIP 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
