SHOGUN (FL125)

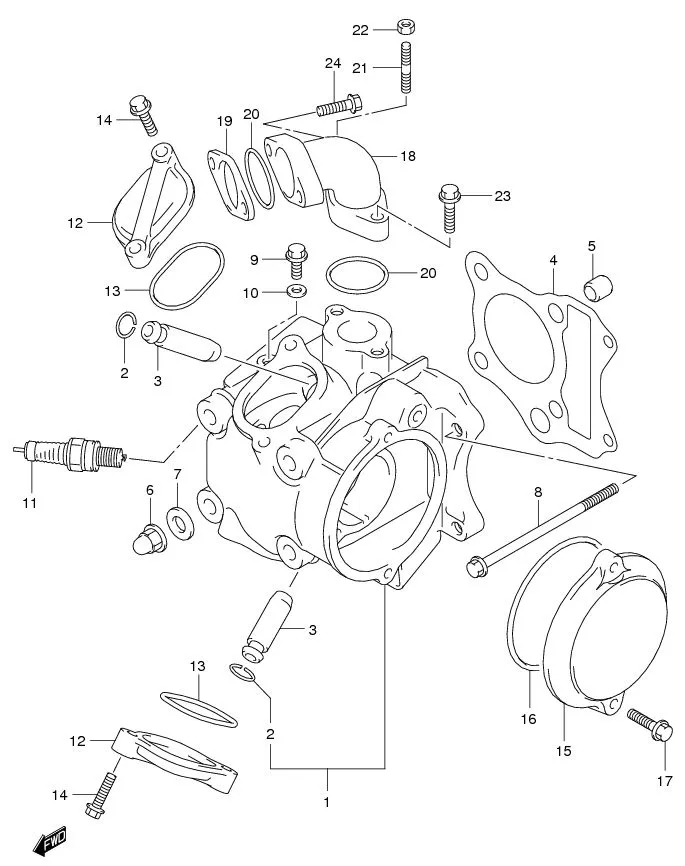

FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)

FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B16H00N000
HEAD, CYLINDER 1 -
2 09381-10004-000
SUB: 09381B10004N000
•RING 2 Rp3.000
3 11115-09G10-000
SUB: 11115B09G20N000
GUIDE, VALVE (OS:0.3) 2 Rp18.000 OPT
4 11141-16H10-000
SUB: 11141B16H10N000
GASKET, CYLINDER HEAD 1 Rp26.000
5 04211-11129-000
SUB: 04211B11129N000
PIN 2 Rp2.000
6 09159-08137-000
SUB: 09159-08049-000
NUT 4 Rp11.000
7 09168-08021-000
SUB: 09168B08021N000
GASKET 4 Rp5.000
8 09103-06501-000
SUB: 09103B06501N000
BOLT, CYLINDER HEAD 2 Rp9.000
9 01547-0610A-000
SUB: 01547B0612BN000
PLUG 1 Rp3.000
10 09168-06004-000
SUB: 09168B06004N000
GASKET 1 Rp2.500
11-1 09482-00710-000
SUB: 09482-00710L000
SPARK PLUG (NGK,C6HSA) 1 Rp24.500
11-2 09482-00810-000
SUB: 09482-00810L000
SPARK PLUG (ND,U20FS-U) 1 Rp18.500
12 DISCONTINUE
SUB: 11175B28G00N000
CAP, INSPECTION 2 -
13 09280-50007-000
SUB: 09280B50007N000
O RING, INSPECTION CAP 2 Rp4.000
14 01547-0620B-000
SUB: 01547B0620BN000
BOLT 4 Rp6.500
15 DISCONTINUE
SUB: 11121B23F01N000
COVER, CYLINDER HEAD LH 1 -
16 09280-84002-000
SUB: 09280B84002N000
O RING 1 Rp4.500
17 01547-0620B-000
SUB: 01547B0620BN000
BOLT 2 Rp6.500
18 DISCONTINUE
SUB: 13110B16H00N000
PIPE, INTAKE 1 -
19 13129-20G00-000
SUB: 13129B20G00N000
INSULATOR, CARBURETOR 1 Rp13.500
20 09280-26011-000
SUB: 09280B26011N000
O RING 2 Rp8.000
21 01421-0620A-000
SUB: 01421B0620AN000
BOLT, INTAKE HEAD STUD 1 Rp3.500
22 08310-0006A-000
SUB: 08310B0006AN000
NUT 1 Rp2.500
23 01547-0625A-000
SUB: 01547B0625AN000
BOLT, INTAKE HEAD 1 Rp6.500
24 07130-0625A-000
SUB: 07130B0625AN000
BOLT, INTAKE CARBURETOR 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
