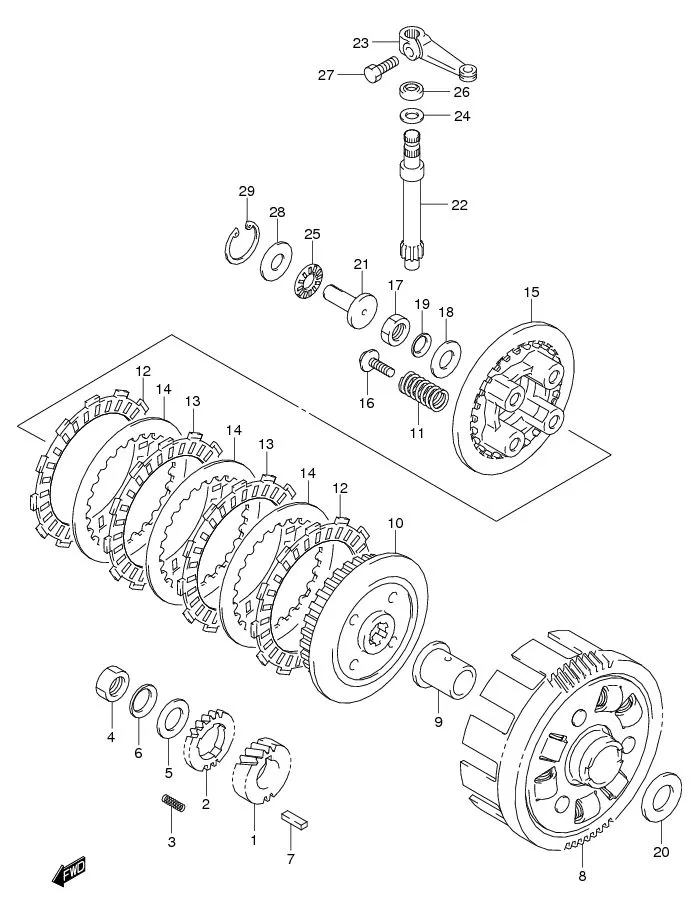

FIG.15B CLUTCH (FL125RCDMK7/RCDMK8)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 21111B20G40N0A0	GEAR, PRIMARY DRIVE	1	-
2	21112-20G70-000 SUB: 21112B20G10N000	GEAR, PRIMARY DRIVE SCISSORS	1	Rp47.000
3	21114-23F80-000 SUB: 21114B23F80N000	SPRING, PRI DRIVE GEAR	3	Rp3.000
4	09140-14022-000 SUB: 09140B14022N000	NUT, PRIMARY DRIVE GEAR	1	Rp9.000
5	09160-14046-XC0	WASHER, PRI DRIVE GEAR THR	1	Rp25.500	14X29X1.5
6	09164-14011-000 SUB: 09164B14011N000	WASHER, PRI DRIVE GEAR WAVE	1	Rp4.000
7	09421-04004-000 SUB: 09421B04004N000	KEY, PRIMARY DRIVE GEAR	1	Rp6.500
8	21200-20G20-0A0 SUB: 21200B20G20N0A0	GEAR ASSY, PRIMARY DRIVEN	1	Rp429.000
9	21251-23F20-000 SUB: 21251B23F20N000	SPACER, PRI DRIVEN GEAR	1	Rp25.000
10	21411-28G00-000 SUB: 21411B28G00N000	HUB, CLUTCH SLEEVE	1	Rp34.500
11	21413-16H00-000 SUB: 21413B16H00N000	SPRING, CLUTCH	4	Rp4.000
12	21441-16H00-000 SUB: 21441B16H00N000	PLATE, CLUTCH DRIVE NO.2	2	Rp35.000
13	21441-28G00-000 SUB: 21441B28G00N000	PLATE, CLUTCH DRIVE	2	Rp37.500
14	21451-21D40-000 SUB: 21451B21D40N000	PLATE, CLUTCH DRIVEN	3	Rp21.500
15	21462-28G10-000 SUB: 21462B28G10N000	DISC, CLUTCH PRESSURE	1	Rp26.000
16	09116-05020-000 SUB: 09116B05020N000	BOLT, CLUTCH SPRING	4	Rp3.000
17	09140-14022-000 SUB: 09140B14022N000	NUT, CLUTCH SLEEVE HUB	1	Rp9.000
18	09160-14046-XC0	WASHER, CLUTCH SLEEVE HUB	1	Rp25.500	14X29X1.5
19	09164-14011-000 SUB: 09164B14011N000	WASHER, CLUTCH SLEEVE WAVE	1	Rp4.000
20	DISCONTINUE SUB: 09180B17113N000	SPACER (17X32X6.0)	1	-
21	23165-16H00-000 SUB: 23165B16H00N000	RACK, CLUTCH RELEASE	1	Rp31.500
22	23261-16H00-000 SUB: 23261B16H00N000	PINION, CLUTCH RELEASE	1	Rp59.500
23	23271-28F10-000 SUB: 23271B28F10N000	ARM, CLUTCH RELEASE	1	Rp77.500
24	09160-12086-000 SUB: 09160B12086N000	WASHER, CLUTCH RELEASE PINION	1	Rp7.000	12.5X17X1
25	09263-10016-000 SUB: 09263B10016N000	BEARING, CLUTCH RELEASE THR	1	Rp24.500	10X24X2
26	09285-10008-000 SUB: 09285B10005N000	SEAL, CL RELEASE PINION OIL	1	Rp9.500	9.2X17X5
27	01500-0616A-000 SUB: 01500B0616BN000	BOLT, CLUTCH RELEASE ARM	1	Rp6.500
28	08211-10305-000 SUB: 08211B10305N000	WASHER, CLUTCH RELEASE THR	1	Rp20.500
29	08331-41309-000 SUB: 08331B41309N000	CIRCLIP, CLUTCH RELEASE BRG	1	Rp8.500
