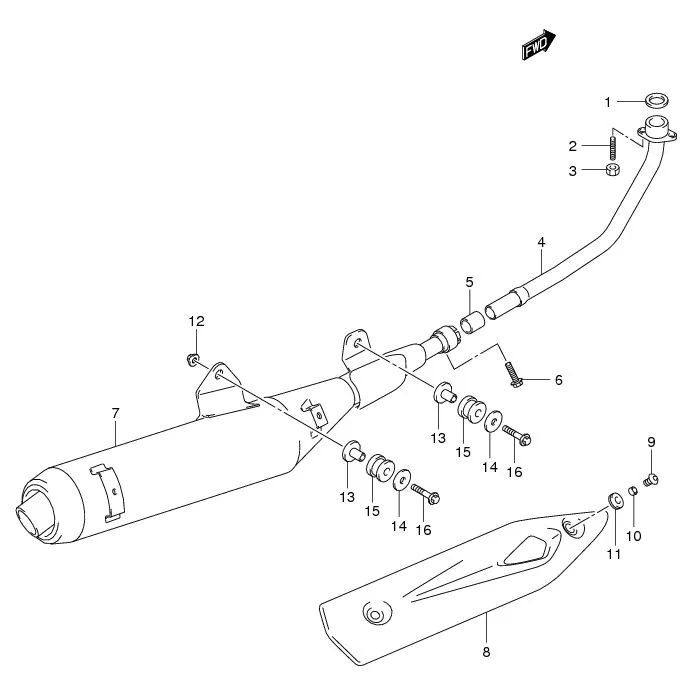

FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)

FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	14181-09D00-000 SUB: 14181B09D00N000	GASKET, EXHAUST PIPE	1	Rp4.500
2	09108-08280-000 SUB: 09108B08280N000	BOLT, STUD	2	Rp8.000
3	08316-1008A-000 SUB: 08316B1008BN000	NUT	2	Rp3.500
4	14150-16H00-000 SUB: 14150B16H00N000	PIPE, EXHAUST	1	Rp310.500
5	14771-26F00-000	CONNECTOR	1	Rp96.500
6	01550-0835B-000 SUB: 01550B0835BN000	BOLT	1	Rp4.500
7	14310-16H21-000 SUB: 14310B16H00N000	MUFFLER ASSY	1	Rp1.697.000
8	14780-16H00-000 SUB: 14780B16H00N000	COVER, MUFFLER	1	Rp171.500
9	51875-07H00-000 SUB: 51875B07H00N000	SCREW	2	Rp9.000
10	09180-06256-000 SUB: 09180B06256N000	SPACER	2	Rp3.000
11	09320-08051-000 SUB: 09320B08051N000	CUSHION	2	Rp3.000
12	08316-1008A-000 SUB: 08316B1008BN000	NUT	1	Rp3.500
13	DISCONTINUE SUB: 09180B08212N000	SPACER, MUFFLER SPRT	2	-
14	09160-08149-000 SUB: 09160B08149N000	WASHER	2	Rp6.500
15	09320-12078-000 SUB: 09320-12048-000	CUSHION	2	Rp18.000
16	01550-0840B-000 SUB: 01550B0840BN000	BOLT	2	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
