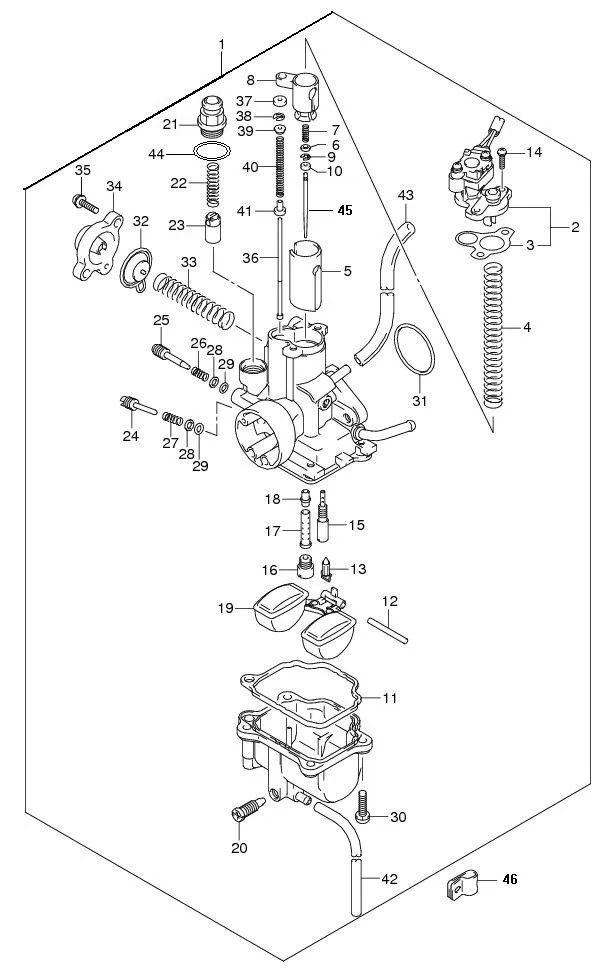

FIG.10 CARBURETOR (FL125SC/SD/RD/RCDM/RMD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	13200-16H30-000 SUB: 13200B16H30N000	CARBURETOR	1	Rp726.000	FL125RCDM/RMD
1-1	13200-16H30-000 SUB: 13200B16H20N000	CARBURETOR	1	Rp726.000	FL125SC/SD/RD
2	DISCONTINUE SUB: 13260B20G00N000	•TOP CAP ASSY	1	-
3	DISCONTINUE SUB: 13249B20G00N000	••GASKET	1	-
4	DISCONTINUE SUB: 13573B20G00N000	•SPRING	1	-
5	DISCONTINUE SUB: 13551B20G00N000	•PISTON VALVE	1	-
6	13382-23F00-000 SUB: 13382B23F00N000	•WASHER	1	Rp8.500
7	13481-23F00-000 SUB: 13481B23F00N000	•SPRING	1	Rp8.500
8	DISCONTINUE SUB: 13389B20G00N000	•HOLDER	1	-
9	13533-98410-000 SUB: 13533B98410N000	•E RING	1	Rp6.000
10	13387-23F00-000 SUB: 13387B23F00N000	•RING	1	Rp8.500
11	13258-30A00-000 SUB: 13258B30A00N000	•PACKING	1	Rp9.000
12	13254-20010-000 SUB: 13254B20010N000	•PIN	1	Rp7.500
13	DISCONTINUE SUB: 13370B20G00N000	•NEEDLE ASSY	1	-
14	DISCONTINUE SUB: 02112B34123N000	•SCREW	2	-
15	09492-12003-000 SUB: 09492B12003N000	•JET, PILOT (#12.5)	1	Rp19.000
16-1	DISCONTINUE SUB: 09491-20013-000	•JET, MAIN (#100)	1	-
16-2	09491-97009-000 SUB: 09491B97009N000	•JET, MAIN (#97.5)	1	Rp11.500	2007-6%
17	13385-09G20-000 SUB: 13385B09G10N000	•PIPE	1	Rp37.000
18	13341-09GE0-000 SUB: 13341B09GE0N000	•JET, NEEDLE	1	Rp25.500
19	13250-30D00-000 SUB: 13250B30D00N000	•FLOAT ASSY	1	Rp32.500
20	13247-09G10-000 SUB: 13247B09G10N000	•SCREW, DRAIN	1	Rp21.000
21	13418-43410-000 SUB: 13418B43410N000	•HOLDER, GUIDE	1	Rp7.500
22	13417-01010-000 SUB: 13417B01010N000	•SPRING	1	Rp6.500
23	13411-01010-000 SUB: 13411B01010N000	•PLUNGER ASSY	1	Rp13.000
24	DISCONTINUE SUB: 13267B09G20N000	•ADJUSTER	1	-
25	13267-20G20-000 SUB: 13267B20G00N000	•ADJUSTER	1	Rp9.500
26	13268-35010-000 SUB: 13268B35010N000	•SPRING	1	Rp5.500
27	DISCONTINUE SUB: 13268B09G20N000	•SPRING	1	-
28	13291-29900-000 SUB: 13291B29900N000	•WASHER	2	Rp6.500
29	13295-29900-000 SUB: 13295B29900N000	•O RING	2	Rp8.000
30	13601-04148-000 SUB: 13601B04148N000	•SCREW	4	Rp8.000
31	DISCONTINUE SUB: 13278B29C50N000	•O RING	1	-
32	13480-09G10-000 SUB: 13480B09G10N000	•DIAPHRAGM ASSY	1	Rp31.500
33	13481-09G10-000 SUB: 13481B09G10N000	•SPRING	1	Rp8.000
34	DISCONTINUE SUB: 13502B09G10N000	•DIAPHRAGM COVER	1	-
35	DISCONTINUE SUB: 13601B20G00N000	•SCREW	2	-
36	13487-20G00-000 SUB: 13487B20G00N000	•ROD	1	Rp13.000
37	13387-47010-000 SUB: 13387B47010N000	•RING	1	Rp7.500
38	13394-40D20-000 SUB: 13394B40D20N000	•E RING	1	Rp6.500
39	13387-20G00-000 SUB: 13387B20G00N000	•RING	1	Rp7.500
40	13481-20G00-000 SUB: 13481B20G00N000	•SPRING	1	Rp9.000
41	13331-20G00-000 SUB: 13331B20G00N000	•RING	1	Rp36.000
42	09355-25001-600 SUB: 09355-25705-600	•HOSE	1	Rp51.000	L:600!225
43	09352-40703-230 SUB: 09352B40703N600	•HOSE	1	Rp11.000	L:600!350
44	13278-47090-000 SUB: 13278B47090N000	•O RING	1	Rp5.500
45	13383-16H00-000 SUB: 13383B16H00N000	•NEEDLE, JET	1	Rp26.000
46-1	DISCONTINUE SUB: 09403-06404-000	CLAMP	1	-
46-2	DISCONTINUE SUB: 13827B09G00N000	CLAMP	1	-
