SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.1A CYLINDER HEAD (FL125RCDF)FIG.2 CYLINDER (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.2A CYLINDER (FL125RCDF)FIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.6A FLYWHEEL (FL125RCDM/RMD)FIG.7 CRANK BALANCERFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETOR (FL125SC/SD/RD/RCDM/RMD)FIG.10A THROTTLE BODY (FL125RCDF)FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)FIG.11A AIR CLEANER (FL125RCDF)FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)FIG.12A MUFFLER (FL125RCDF)FIG.13 OIL PUMPFIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)FIG.14A FUEL HOSE (FL125RCDF)FIG.15 CLUTCH (FL125SDK7/SDK8/RDK8)FIG.15A CLUTCH (FL125RCDFK8)FIG.15B CLUTCH (FL125RCDMK7/RCDMK8)FIG.16 TRANSMISSIONFIG.17 GEAR SHIFTING (FL125SDK7/SDK8/RDK8/RCDFK8)FIG.17A GEAR SHIFTING (FL125RCDMK7/RCDMK8)FIG.18 KICK STARTER

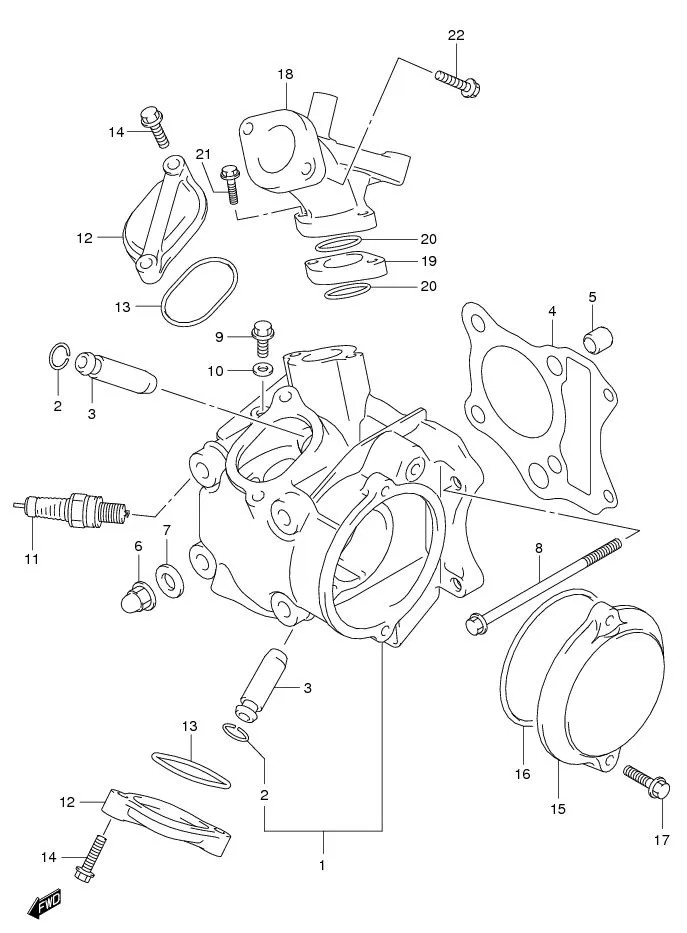

FIG.1A CYLINDER HEAD (FL125RCDF)

FIG.1A CYLINDER HEAD (FL125RCDF)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B16HA0N000		 HEAD, CYLINDER 1 -
2 09381-10004-000
SUB: 09381B10004N000		 •RING 2 Rp3.000
3 11115-09G10-000
SUB: 11115B09G20N000		 GUIDE, VALVE (OS:0.3) 2 Rp18.000 OPT
4 11141-16H10-000
SUB: 11141B16H10N000		 GASKET, CYLINDER HEAD 1 Rp26.000
5 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
6 09159-08137-000
SUB: 09159-08049-000		 NUT 4 Rp11.000
7 09168-08021-000
SUB: 09168B08021N000		 GASKET 4 Rp5.000
8 09103-06501-000
SUB: 09103B06501N000		 BOLT, CYLINDER HEAD 2 Rp9.000
9 01547-0610A-000
SUB: 01547B0612BN000		 PLUG 1 Rp3.000
10 09168-06004-000
SUB: 09168B06004N000		 GASKET 1 Rp2.500
11-2 DISCONTINUE
SUB: 09482B00815N000		 SPARK PLUG (ND,U20FSR-U) 1 -
11-1 09482-00406-000
SUB: 09482B00406N000		 SPARK PLUG (NGK,CR6HSA) 1 Rp25.500
12 DISCONTINUE
SUB: 11175B28G00N000		 CAP, INSPECTION 2 -
13 09280-50007-000
SUB: 09280B50007N000		 O RING, INSPECTION CAP 2 Rp4.000
14 01547-0620B-000
SUB: 01547B0620BN000		 BOLT 4 Rp6.500
15 DISCONTINUE
SUB: 11121B23F01N000		 COVER, CYLINDER HEAD LH 1 -
16 09280-84002-000
SUB: 09280B84002N000		 O RING 1 Rp4.500
17 01547-0620B-000
SUB: 01547B0620BN000		 BOLT 2 Rp6.500
18 DISCONTINUE
SUB: 13111-16HA0-000		 PIPE, INTAKE 1 -
19 13128-28G00-000 INSULATOR 1 Rp103.500
20 09280-26011-000
SUB: 09280B26011N000		 O RING 2 Rp8.000
21 01547-0620B-000
SUB: 01547B0620AN000		 BOLT, INTAKE HEAD 2 Rp6.500
22 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
