SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.1A CYLINDER HEAD (FL125RCDF)FIG.2 CYLINDER (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.2A CYLINDER (FL125RCDF)FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.6A FLYWHEEL (FL125RCDM/RMD)FIG.7 CRANK BALANCER FIG.8 CAM SHAFT/VALVE FIG.9 CAM CHAIN FIG.10 CARBURETOR (FL125SC/SD/RD/RCDM/RMD)FIG.10A THROTTLE BODY (FL125RCDF)FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)FIG.11A AIR CLEANER (FL125RCDF)FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)FIG.12A MUFFLER (FL125RCDF)FIG.13 OIL PUMP FIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)FIG.14A FUEL HOSE (FL125RCDF)FIG.15 CLUTCH (FL125SDK7/SDK8/RDK8)FIG.15A CLUTCH (FL125RCDFK8)FIG.15B CLUTCH (FL125RCDMK7/RCDMK8)FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING (FL125SDK7/SDK8/RDK8/RCDFK8)FIG.17A GEAR SHIFTING (FL125RCDMK7/RCDMK8)FIG.18 KICK STARTER

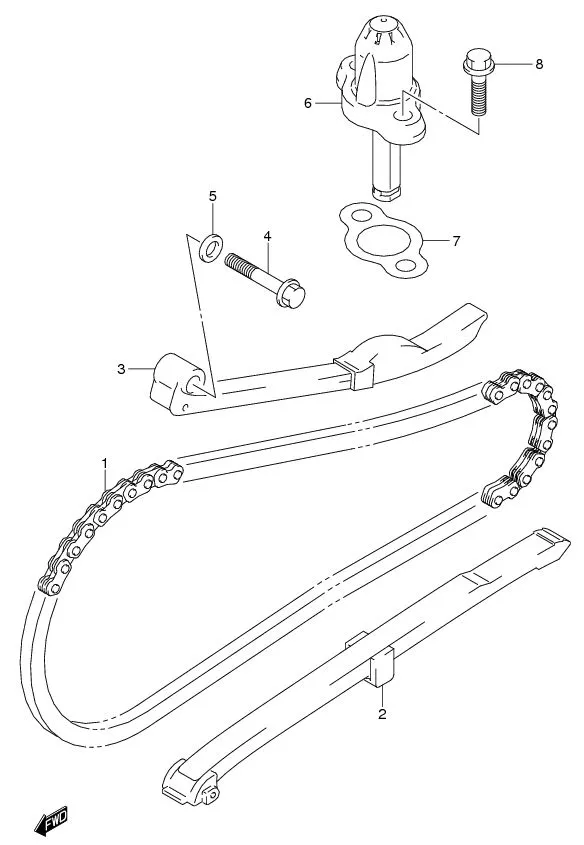

FIG.9 CAM CHAIN

FIG.9 CAM CHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12760-20G11-000 SUB: 12760B20G00N000	CHAIN, CAM SHAFT DRIVE	1	Rp100.000
2	12771-33G10-000 SUB: 12771-33GA0-000	GUIDE, CAM CHAIN	1	Rp63.000
3	12811-28G10-000	TENSIONER, CAM CHAIN	1	Rp65.000
4	09103-06247-000 SUB: 09103B06247N000	BOLT, CAM CHAIN TENSIONER	1	Rp4.000
5	09168-06004-000 SUB: 09168B06004N000	GASKET	1	Rp2.500
6	12830-09G00-000 SUB: 12830B09G00N000	ADJUSTER ASSY, TENSIONER	1	Rp253.000
7	12837-16H00-000 SUB: 12837B16H00N000	GASKET, TENSIONER ADJUSTER	1	Rp5.000
8	01547-0620B-000 SUB: 01547B0620BN000	BOLT (6X20)	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
