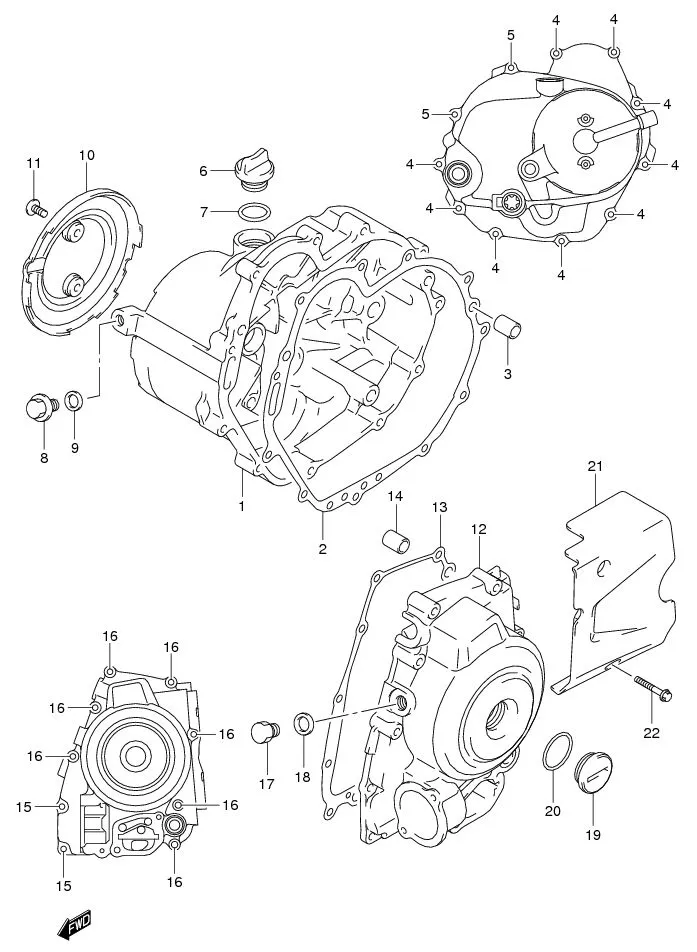

FIG.4 CRANKCASE COVER

FIG.4 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 11341B16H10N000		 COVER, CLUTCH 1 - FL125RCDM/RMD
1-1 DISCONTINUE
SUB: 11340B16H00N000		 COVER, CLUTCH 1 - FL125SC/SD/RD/RCDF
2 11482-16H10-000
SUB: 11482B16H10N000		 GASKET, CLUTCH COVER 1 Rp29.000
3 04211-09149-000
SUB: 04211B09149N000		 PIN 2 Rp3.000
4 01547-0630A-000
SUB: 01547B0630AN000		 SCREW 9 Rp6.500
5 01547-0640B-000
SUB: 01547B0640AN000		 SCREW 2 Rp7.000
6 11342-25G00-000
SUB: 11342B25G00N000		 PLUG, OIL LEVEL GAUGE 1 Rp19.000
7 09280-17003-000
SUB: 09280-17003L000		 O RING 1 Rp2.000
8 01550-0812A-000
SUB: 01550B0812AN000		 PLUG, OIL CHECK 1 Rp3.500
9 09168-08015-000
SUB: 09168B08015N000		 GASKET 1 Rp2.000
10 DISCONTINUE
SUB: 11383B16H00N000		 CAP, CLUTCH COVER 1 -
11 02142-0508A-000
SUB: 02142B0508AN000		 SCREW, CAP 2 Rp3.500
12-1 DISCONTINUE
SUB: 11351B16H00N000		 COVER, MAGNETO 1 - FL125SC/SD/RD/RCDM/RMD
12-2 DISCONTINUE
SUB: 11351B16H50N000		 COVER, MAGNETO 1 - FL125RCDF
13 11483-16H10-000
SUB: 11483B16H10N000		 GASKET, MAGNETO COVER 1 Rp24.000
14 04211-09149-000
SUB: 04211B09149N000		 PIN 2 Rp3.000
15 01547-0620B-000
SUB: 01547B0620AN000		 SCREW 2 Rp6.500
16 01547-0635A-000
SUB: 01547B0635AN000		 SCREW 7 Rp6.500
17 09247-12104-000 PLUG, TOP (12X10) 1 Rp17.500
18 09168-12002-000
SUB: 09168B12002N000		 GASKET (12.1X16.2X1.2) 1 Rp10.000
19 DISCONTINUE
SUB: 09259B26014N000		 PLUG, HOLE 1 -
20 09280-22008-000
SUB: 09280-22008L000		 O RING 1 Rp3.500
21 DISCONTINUE
SUB: 11361B16H00N000		 COVER, ENGINE SPROCKET 1 -
22 01547-0630A-000
SUB: 01547B0630AN000		 SCREW 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
