SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.1A CYLINDER HEAD (FL125RCDF)FIG.2 CYLINDER (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.2A CYLINDER (FL125RCDF)FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.6A FLYWHEEL (FL125RCDM/RMD)FIG.7 CRANK BALANCER FIG.8 CAM SHAFT/VALVE FIG.9 CAM CHAIN FIG.10 CARBURETOR (FL125SC/SD/RD/RCDM/RMD)FIG.10A THROTTLE BODY (FL125RCDF)FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)FIG.11A AIR CLEANER (FL125RCDF)FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)FIG.12A MUFFLER (FL125RCDF)FIG.13 OIL PUMP FIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)FIG.14A FUEL HOSE (FL125RCDF)FIG.15 CLUTCH (FL125SDK7/SDK8/RDK8)FIG.15A CLUTCH (FL125RCDFK8)FIG.15B CLUTCH (FL125RCDMK7/RCDMK8)FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING (FL125SDK7/SDK8/RDK8/RCDFK8)FIG.17A GEAR SHIFTING (FL125RCDMK7/RCDMK8)FIG.18 KICK STARTER

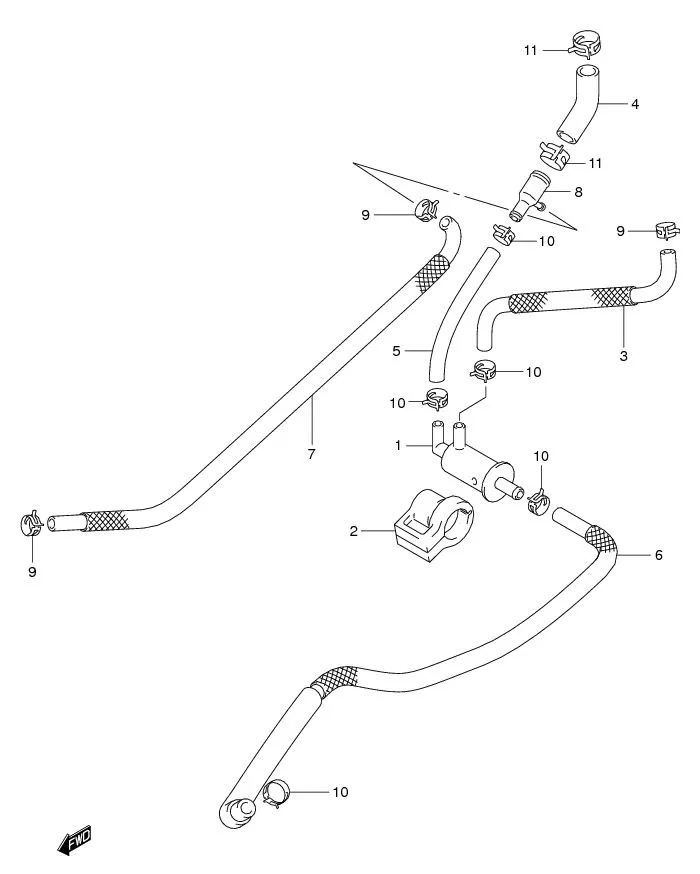

FIG.14A FUEL HOSE (FL125RCDF)

FIG.14A FUEL HOSE (FL125RCDF)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15411-16HB0-000 SUB: 15411B16HB0N000	FILTER, FUEL	1	Rp98.000
2	DISCONTINUE SUB: 15418B12F00N000	HOLDER	1	-
3	DISCONTINUE SUB: 15811-16HA0-000	HOSE, FUEL TANK & FILTER	1	-
4	DISCONTINUE SUB: 15812-16HA0-000	HOSE, UNION & TANK	1	-
5	DISCONTINUE SUB: 15813-16HA0-000	HOSE, FILTER & UNION	1	-
6	DISCONTINUE SUB: 15810-16HA0-000	HOSE, FILTER & INJECTOR	1	-
7	15815-16HA0-000	HOSE, INJECTOR & UNION	1	Rp244.000
8	DISCONTINUE SUB: 15831-32G10-000	UNION, 3 WAY	1	-
9	09401M11419-000	CLIP	3	Rp6.000
10	09401-13414-000	CLIP	5	Rp18.000
11	09401-18406-000 SUB: 09401B18406N000	CLIP	2	Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
