SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.1A CYLINDER HEAD (FL125RCDF)FIG.2 CYLINDER (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.2A CYLINDER (FL125RCDF)FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.6A FLYWHEEL (FL125RCDM/RMD)FIG.7 CRANK BALANCER FIG.8 CAM SHAFT/VALVE FIG.9 CAM CHAIN FIG.10 CARBURETOR (FL125SC/SD/RD/RCDM/RMD)FIG.10A THROTTLE BODY (FL125RCDF)FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)FIG.11A AIR CLEANER (FL125RCDF)FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)FIG.12A MUFFLER (FL125RCDF)FIG.13 OIL PUMP FIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)FIG.14A FUEL HOSE (FL125RCDF)FIG.15 CLUTCH (FL125SDK7/SDK8/RDK8)FIG.15A CLUTCH (FL125RCDFK8)FIG.15B CLUTCH (FL125RCDMK7/RCDMK8)FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING (FL125SDK7/SDK8/RDK8/RCDFK8)FIG.17A GEAR SHIFTING (FL125RCDMK7/RCDMK8)FIG.18 KICK STARTER

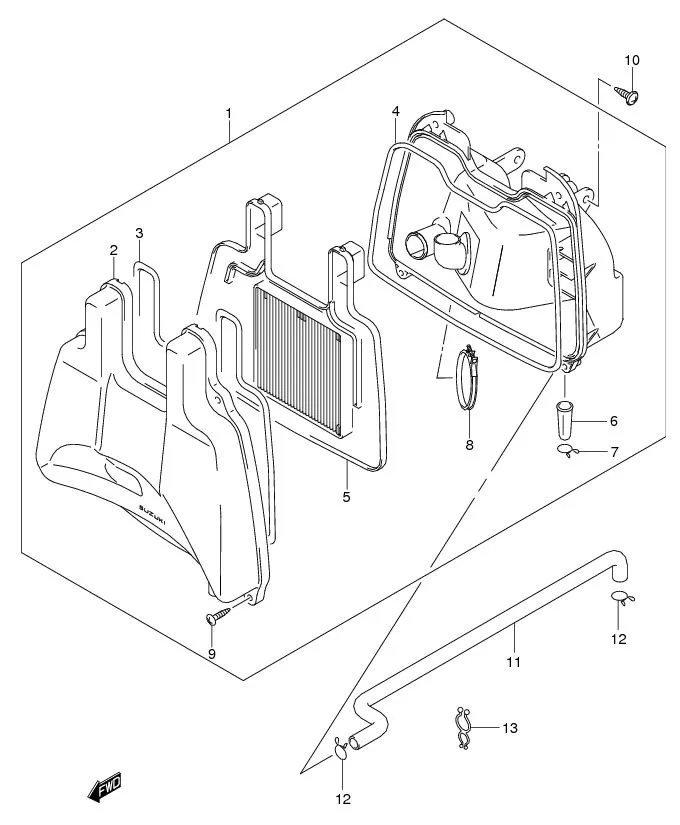

FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)

FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13700-20G81-000 SUB: 13700B20G80N000	CLEANER ASSY, AIR	1	Rp183.500
2	DISCONTINUE SUB: 13740B20G60N000	•CAP, AIR CLEANER	1	-
3	DISCONTINUE SUB: 13746B09G00N000	••GASKET, AIR CLEANER CAP	1	-
4	DISCONTINUE SUB: 13756B09G00N000	•GASKET	1	-
5	13780-09G60-000 SUB: 13780B09G60N000	•FILTER, AIR CLEANER	1	Rp46.000
6	13871-09G00-000 SUB: 13871B09G00N000	•PLUG, DRAIN	1	Rp4.000
7	13824-18910-000 SUB: 13824B18910N000	•CLIP	1	Rp3.500
8	09402-40208-000 SUB: 09402B40208N000	•CLAMP	1	Rp9.000
9	03541-0520A-000 SUB: 03541B05203N000	•SCREW	4	Rp3.500
10	09136-06062-000 SUB: 09136B06017N000	SCREW, AIR CLEANER	2	Rp7.000
11	13853-16H00-000 SUB: 13853B16H00N000	HOSE, BREATHER	1	Rp10.000
12	09401-10401-000 SUB: 09401B10401N000	CLIP	2	Rp5.500
13	DISCONTINUE SUB: 44427B46G00N000	CLIP	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
