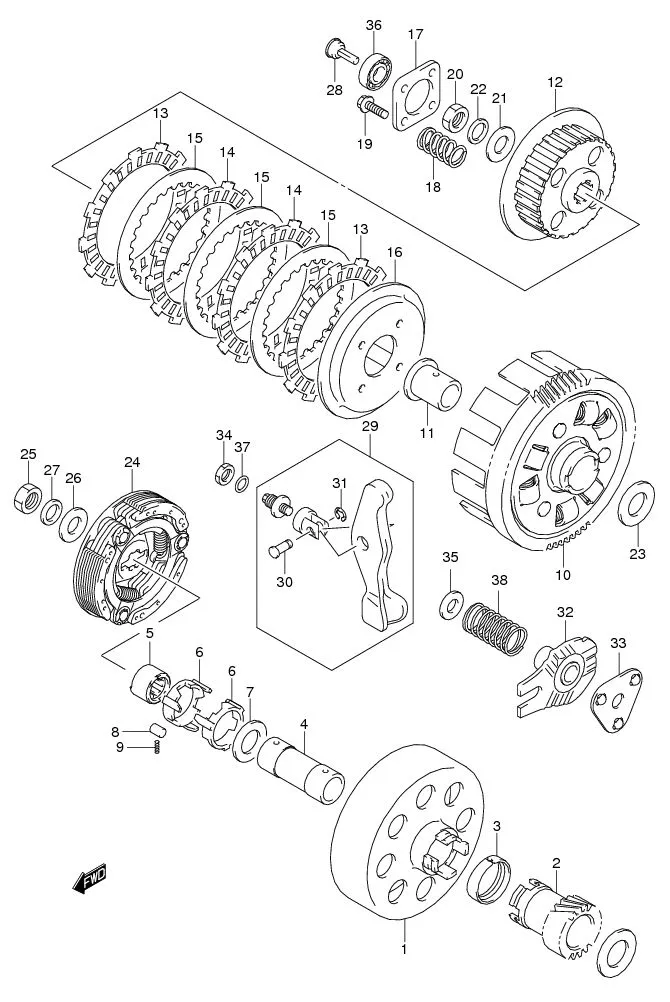

FIG.15A CLUTCH (FL125RCDFK8)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21102-23FB0-000 SUB: 21102B23F60N000	HOUSING, CLUTCH 1ST	1	Rp222.000
2	DISCONTINUE SUB: 21111B20G00N000	GEAR, PRIMARY DRIVE	1	-
3	21114-23F00-000 SUB: 21114B23F00N000	RING, PRIMARY DRIVE GEAR	1	Rp34.500
4	DISCONTINUE SUB: 21119B23F30N000	SPACER, PRIMARY DRIVE	1	-
5	21631-21D02-000 SUB: 21631B21D02N000	RACE, ONE WAY CLUTCH INR	1	Rp66.500
6	21652-23F00-000 SUB: 21652B23F00N000	RETAINER, ONE WAY CLUTCH	2	Rp8.500
7	DISCONTINUE SUB: 09181B18002N000	WASHER, PRI DRIVE GEAR	2	-
8	09261-07006-000 SUB: 09261B07006N000	ROLLER, ONE WAY CLUTCH	3	Rp4.000
9	09440-02002-000 SUB: 09440B02002N000	SPRING, ONE WAY CLUTCH	3	Rp3.000
10	21200-20G00-000 SUB: 21200B20G00N000	GEAR ASSY, PRIMARY DRIVEN	1	Rp450.000
11	21251-23F20-000 SUB: 21251B23F20N000	SPACER, PRI DRIVEN GEAR	1	Rp25.000
12	21411-20G00-000 SUB: 21411B09G00N000	HUB, CLUTCH SLEEVE	1	Rp60.000
13	21441-16H00-000 SUB: 21441B16H00N000	PLATE, CLUTCH DRIVE NO.1	2	Rp35.000
14	21441-28G00-000 SUB: 21441B28G00N000	PLATE, CLUTCH DRIVE NO.2	2	Rp37.500
15	21451-21D40-000 SUB: 21451B21D40N000	PLATE, CLUTCH DRIVEN	3	Rp21.500
16	21461-09G00-000 SUB: 21461B09G00N000	DISK, CLUTCH PRESSURE	1	Rp35.000
17	21465-09G00-000 SUB: 21465B09G00N000	PLATE, RELEASE	1	Rp3.000
18	09440-18035-000 SUB: 09440B18031N000	SPRING, CLUTCH	4	Rp6.000
19	21482-09G00-000 SUB: 21482B09G00N000	BOLT, CLUTCH SPRING	4	Rp3.000
20	09140-14022-000 SUB: 09140B14022N000	NUT, CLUTCH SLEEVE HUB	1	Rp9.000
21	09160-14046-XC0	WASHER, CLUTCH SLEEVE HUB	1	Rp25.500	14X29X1.5
22	09164-14011-000 SUB: 09164B14011N000	WASHER, CLUTCH SLEEVE WAVE	1	Rp4.000
23	DISCONTINUE SUB: 09180B17113N000	SPACER (17X32X6.0)	1	-
24	21501-20G90-000 SUB: 21501B20G90N000	CLUTCH ASSY, SHOE	1	Rp202.000
25	09140-14022-000 SUB: 09140B14022N000	NUT, SHOE CLUTCH	1	Rp9.000
26	09160-14046-XC0	WASHER	1	Rp25.500
27	09164-14011-000 SUB: 09164B14011N000	WASHER	1	Rp4.000
28	23121-09G01-000 SUB: 23121B09G00N000	PIECE, CLUTCH PUSH	1	Rp11.500
29	23220-16H00-000 SUB: 23220B16H00N000	ARM, CLUTCH RELEASE	1	Rp146.500
30	09208-07005-000 SUB: 09208B07005N000	•PIN	1	Rp9.500
31	08332-1105A-000	•E RING	1	Rp11.500
32	23230-16H00-000 SUB: 23230B16H00N000	GUIDE, RELEASE BALL OUTER	1	Rp21.000
33	23250-20G00-000 SUB: 23250B20G00N000	BALL, CLUTCH RELEASE	1	Rp17.000
34	09140-12051-000 SUB: 09140B12051N000	NUT, CLUTCH RELEASE ADJUST	1	Rp10.000
35	09160-10506-000 SUB: 09160-10039-000	WASHER, RELEASE ARM	1	Rp6.000	10.5X22X2.3
36	09262-15032-000 SUB: 09262B15032N000	BEARING, PUSH PIECE THRUST	1	Rp40.500	15X32X8
37	09280-12004-000 SUB: 09280B12004N000	O RING (D:1.9,ID:11.8)	1	Rp2.500
38	09440-19012-000 SUB: 09440B19012N000	SPRING, RELEASE ARM	1	Rp4.000
39	21231-20G90-000 SUB: 21231B20G90N000	DAMPER CLUTCH SHOE	3	Rp7.500	DRAWING NOT SHOWN
