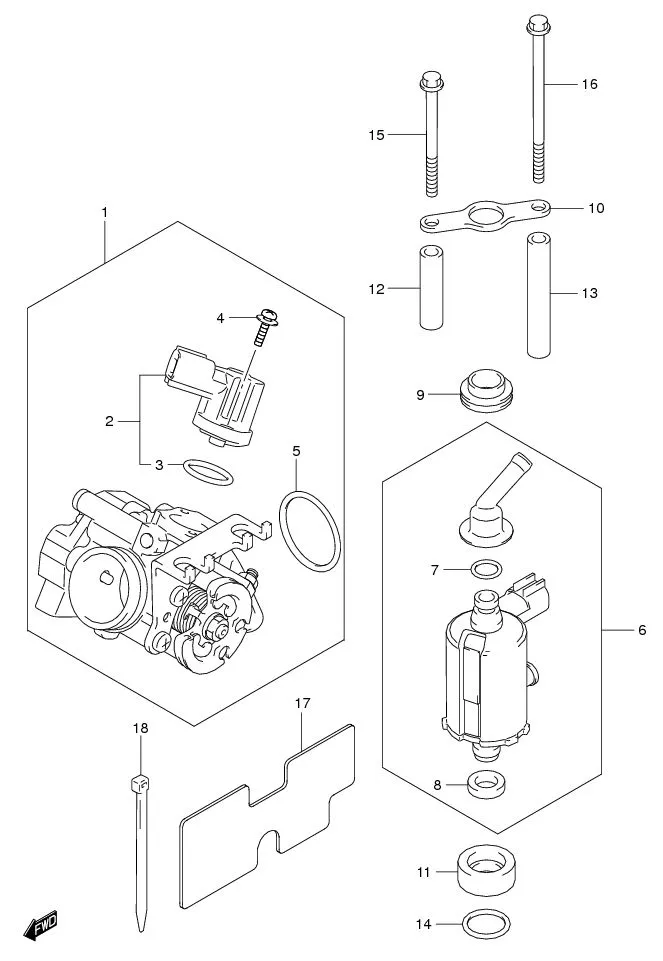

FIG.10A THROTTLE BODY (FL125RCDF)

FIG.10A THROTTLE BODY (FL125RCDF)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13400-16HB1-000	BODY ASSY, THROTTLE	1	Rp1.886.500
2	13420-16HA1-000 SUB: 13420-16HA0-000	•SOLENOID ASSY	1	Rp889.500
3	DISCONTINUE SUB: 13425-33G00-000	••O RING	1	-
4	DISCONTINUE SUB: 13601-13G00-000	•BOLT	2	-
5	13295-16HA0-000 SUB: 13295B16HA0N000	•O RING	1	Rp5.000
6	15710-16HA1-000	INJECTOR ASSY, FUEL	1	Rp1.546.500
7	DISCONTINUE SUB: 13374-32G00-000	•O RING	1	-
8	15712-32G00-000	•SEAL	1	Rp42.500
9	DISCONTINUE SUB: 15713-32G00-000	CUSHION	1	-
10	DISCONTINUE SUB: 15714-16HA0-000	HOLDER	1	-
11	15715-32G00-000	INSULATOR	1	Rp65.000
12	DISCONTINUE SUB: 15716-16HA0-000	SPACER, FR	1	-
13	DISCONTINUE SUB: 15717-16HA0-000	SPACER, RR	1	-
14	09280-15014-000 SUB: 09280-15014L000	O RING	1	Rp7.000
15	01547-0655A-000 SUB: 01547-0655B-000	BOLT, HOLDER FR	1	Rp7.500
16	01547-0675A-000 SUB: 01547B0675BN000	BOLT, HOLDER RR	1	Rp7.500
17	DISCONTINUE SUB: 15718-16HA0-000	SHEET, INJECTOR	1	-
18	DISCONTINUE SUB: 13671-02F00-000	CLAMP	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
