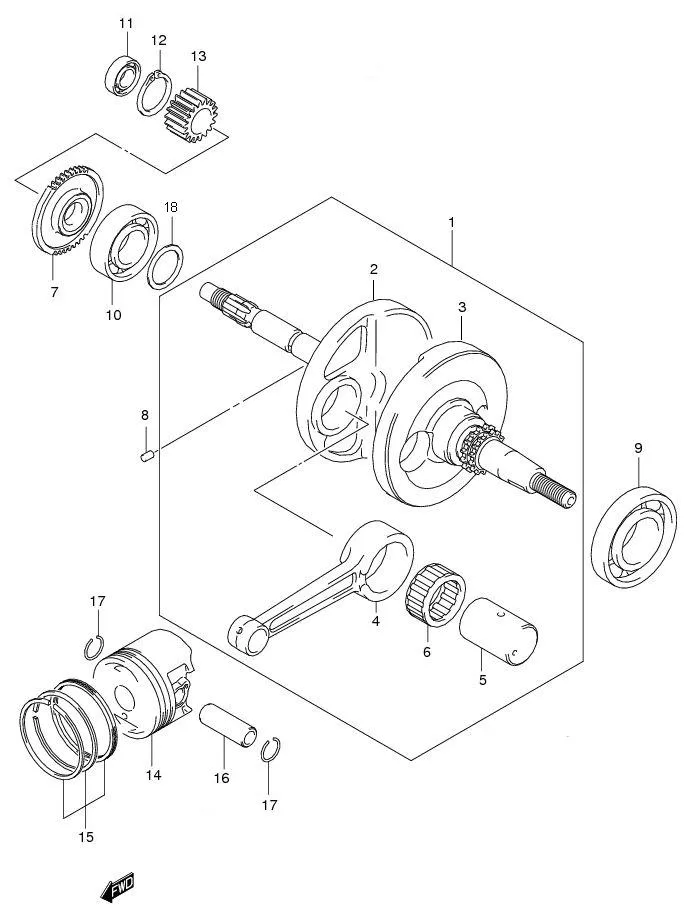

FIG.5 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 12200B16H20N000	CRANKSHAFT ASSY	1	-	FL125RCDM/RMD
1-1	DISCONTINUE SUB: 12200B16H30N000	CRANKSHAFT ASSY	1	-	FL125SC/SD/RD/RCDF
2-2	DISCONTINUE SUB: 12021B16H10N000	•CRANKSHAFT SET RH	1	-	FL125RCDM/RMD
2-1	12021-16H00-000 SUB: 12021B16H00N000	•CRANKSHAFT SET RH	1	Rp235.500	FL125SC/SD/RD/RCDF
3	12061-16H10-000 SUB: 12061B16H10N000	•CRANKSHAFT SET LH	1	Rp206.500
4	12161-46G50-001 SUB: 12161B46G50N001	•ROD, CONNECTING	1	Rp87.000
5	12211-20G00-0A0 SUB: 12211B20G00N0A0	•PIN, CRANK	1	Rp56.500
6	09263-28034-0B0 SUB: 09263B28034N0B0	•BEARING	1	Rp43.000
7	DISCONTINUE SUB: 12661B16H10N000	GEAR, CRANK BALANCER DRIVE	1	-
8	04221-03059-000	PIN	1	Rp10.500
9	09262-35088-000 SUB: 09262B35079N000	BEARING, LH	1	Rp88.500
10	09262-25L02-000 SUB: 09262B25159N000	BEARING, MIDDLE	1	Rp73.500
11	09262-12004-000 SUB: 09262B12004N000	BEARING, RH	1	Rp39.000
12	08331-41289-000 SUB: 08331-41286-000	CIRCLIP	1	Rp4.000
13	16321-16H10-000	GEAR, OIL PUMP DRIVE	1	Rp17.500
14-1	12111-28G31-0F0 SUB: 12111B28G31N0F0	PISTON (STD)	1	Rp107.500	FL125SC/SD/RD
14-2	DISCONTINUE SUB: 12111B28G21N0F0	PISTON (STD)	1	-	FL125RCDM/RMD
14-3	12111-16H01-0F0 SUB: 12111B16H01N0F0	PISTON	1	Rp69.500	FL125RCDF
15-3	12140-23F50-050 SUB: 12140B23F50N050	RING SET, PISTON (OS:0.5)	1	Rp78.000	FL125SC/SD/RD/RCDM/RMD
15-2	12140-46G10-000 SUB: 12140B46G10N000	RING SET, PISTON	1	Rp42.500	FL125RCDF
15-1	12140-23F50-000 SUB: 12140B23F50N000	RING SET, PISTON	1	Rp65.500	FL125SC/SD/RD/RCDM/RMD
16	12151-20G00-000 SUB: 12151B20G00N000	PIN, PISTON	1	Rp18.000
17	09381-14001-000 SUB: 09381B14001N000	CIRCLIP	2	Rp2.500
18-15	DISCONTINUE SUB: 09181-25181-000	SHIM (T:1.30)	1	-
18-14	09181-25179-000	SHIM (T:1.25)	1	Rp24.500
18-13	DISCONTINUE SUB: 09181-25063-000	SHIM (T:1.20)	1	-
18-12	09181-25062-000	SHIM (T:1.15)	1	Rp19.500
18-11	09181-25061-000	SHIM (T:1.10)	1	Rp19.000
18-10	09181-25060-000	SHIM (T:1.05)	1	Rp18.500
18-9	09181-25167-000 SUB: 09181-25059-000	SHIM (T:1.00)	1	Rp18.000
18-8	09181-25058-000	SHIM (T:0.95)	1	Rp18.000
18-7	09181-25164-000 SUB: 09181-25057-000	SHIM (T:0.90)	1	Rp19.500
18-6	09181-25056-000	SHIM (T:0.85)	1	Rp18.500
18-5	09181-25162-000 SUB: 09181-25055-000	SHIM (T:0.80)	1	Rp17.000
18-4	09181-25054-000	SHIM (T:0.75)	1	Rp18.000
18-3	09181-25160-000 SUB: 09181-25053-000	SHIM (T:0.70)	1	Rp19.500
18-2	09181-25052-000	SHIM (T:0.65)	1	Rp18.000
18-1	09181-25051-000	SHIM (T:0.60)	1	Rp17.000
