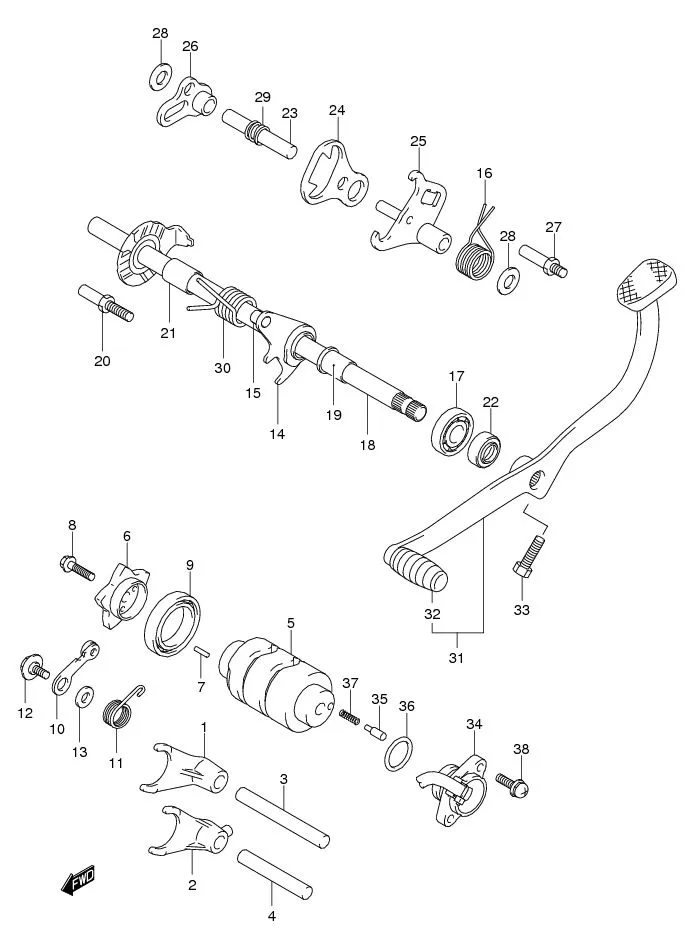

FIG.17 GEAR SHIFTING (FL125SDK7/SDK8/RDK8/RCDFK8)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 25211B16H00N000	FORK, GEAR SHIFT NO.1	1	-
2	DISCONTINUE SUB: 25221B16H00N000	FORK, GEAR SHIFT NO.2	1	-
3	DISCONTINUE SUB: 25421B14A02N000	SHAFT, SHIFT FORK NO.1	1	-
4	DISCONTINUE SUB: 25421B35403N000	SHAFT, SHIFT FORK NO.2	1	-
5	DISCONTINUE SUB: 25311B16H10N000	CAM, GEAR SHIFT	1	-
6	DISCONTINUE SUB: 25380-16H00-000	PLATE, GEAR SHIFT	1	-
7	09261-03002-000 SUB: 09261B03002N000	PIN, CAM STOPPER (3X9.8)	2	Rp2.500
8	01547-0620B-000 SUB: 01547B0620BN000	BOLT, SHIFT CAM PIN	1	Rp6.500
9	08110-69050-000 SUB: 08113B69050N000	BEARING, GEAR SHIFT CAM	1	Rp53.000
10	DISCONTINUE SUB: 25350B16H10N000	STOPPER, SHIFT CAM	1	-
11	25355-16H00-000 SUB: 25355B16H00N000	SPRING.SHIFT CAM	1	Rp3.500
12	09111-06041-000 SUB: 09111B06041N000	BOLT, SHIFT CAM (6X14.3)	1	Rp4.000
13	08211-06121-000 SUB: 08211B06121N000	WASHER, SHIFT CAM	1	Rp7.500
14	25520-16H00-000 SUB: 25520B16H00N000	ARM, GEAR SHIFT LINK NO.1	1	Rp40.500
15	25529-16H00-000 SUB: 25529B16H00N000	ROLLER, GEAR SHIFT ARM	1	Rp10.500
16	DISCONTINUE SUB: 09444B24002N000	SPRING, SHIFT ARM RETURN	1	-
17	08113-60010-000 SUB: 09262-12001L000	BEARING, GEAR SHIFT SHAFT	1	Rp34.000
18	25510-16H00-000 SUB: 25510B16H00N000	SHAFT, GEAR SHIFT NO.1	1	Rp80.000
19	DISCONTINUE SUB: 25516B16H00N000	SPACER, GEAR SHIFT SHAFT	1	-
20	DISCONTINUE SUB: 25671B16H00N000	PIN, GEAR SHIFT SPRING	1	-
21	DISCONTINUE SUB: 09180B12155N000	SPACER, SHIFT ARM (12X16X20)	1	-
22	09283-12010-000 SUB: 09283B12010N000	SEAL, SHIFT SHAFT OIL	1	Rp10.000	12X22X9
23	DISCONTINUE SUB: 25411B13A10N000	SHAFT, GEAR SHIFT NO.2	1	-
24	DISCONTINUE SUB: 25512B16H10N000	PLATE, GEAR SHIFT CAM DRIVE	1	-
25	25540-16H01-000 SUB: 25540B16H01N000	ARM, GEAR SHIFT	1	Rp57.000
26	25550-16H00-000 SUB: 25550B16H00N000	ARM, GEAR SHIFT LINK NO.2	1	Rp29.000
27	DISCONTINUE SUB: 25671B16H10N000	STOPPER, GEAR SHIFT ARM	1	-
28	09181-10167-000	WASHER, GEAR SHIFT NO.2	2	Rp11.500
29	DISCONTINUE SUB: 09440B16021N000	SPRING, GEAR SHIFT RETURN	1	-
30	25518-16H10-000 SUB: 25518B16H10N000	SPRING, GEAR SHIFT RETURN	1	Rp6.500
31-1	#N/A	LEVER ASSY, GEAR SHIFT	1	-	FL125SDK7/SDK8/RDK8
31-2	#N/A	LEVER ASSY, GEAR SHIFT	1	-	FL125RCDFK8
32-1	25652-16H11-000 SUB: 25652-16500L000	•RUBBER, GEAR SHIFT PEDAL	1	Rp3.500	FL125SDK7/SDK8/RDK8
32-2	25652-16H11-000 SUB: 25652B16H10N000	•RUBBER, GEAR SHIFT PEDAL	1	Rp3.500	FL125RCDFK8
33	01500-0620B-000 SUB: 01500B0620BN000	BOLT, LEVER	1	Rp3.000
34	37720-16H60-000 SUB: 37720B16H60N000	BASE ASSY, GEAR SHIFT TERM	1	Rp40.000
35	09209-05011-000 SUB: 09209B05011N000	CONTACT, GEAR POSITION	1	Rp5.500
36	09280-21008-000 SUB: 09280-21008L000	O RING, GEAR SHIFT	1	Rp2.500	D:2.5,ID:21.0
37	09440-04010-000 SUB: 09440B04010N000	SPRING, GEAR SHIFT	1	Rp3.000
38	09138-05018-000 SUB: 09138B05018N000	SCREW, GEAR SHIFT (5X16)	2	Rp7.000
