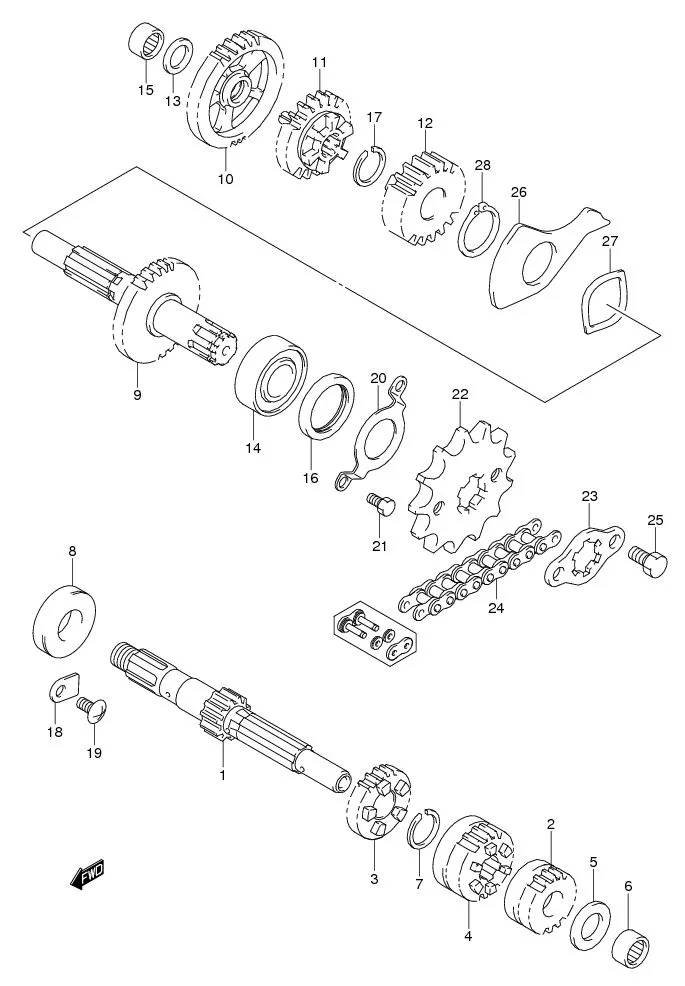

FIG.16 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	24120-16H50-000 SUB: 24120B16H50N000	SHAFT, COUNTER (NT:11)	1	Rp150.500	FL125RCDMK7/RCDMK8
1-1	24120-16H10-000 SUB: 24120B16H00N000	SHAFT, COUNTER (NT:11)	1	Rp303.000	FL125SDK7/SDK8/RDK8/RCDFK8
2	24221-16H20-000 SUB: 24221B16H00N000	GEAR, 2ND DRIVE (NT:14)	1	Rp56.500
3	24231-16H00-000 SUB: 24231B16H00N000	GEAR, 3RD DRIVE (NT:17)	1	Rp82.000	FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8
3A	24231-16H00-000 SUB: 24231B16H10N000	GEAR, 3RD DRIVE (NT:17)	1	Rp82.000	FL125RCDFK8
4	24241-16H00-000 SUB: 24241B16H00N000	GEAR, 4TH DRIVE (NT:19)	1	Rp60.500
5	DISCONTINUE SUB: 09160B13006N000	WASHER, 2ND DRIVE	1	-	13X24X1
6	09263-13003-000 SUB: 09263B13003N000	BEARING, COUNTER LH	1	Rp27.000	13X19X14
7	09380-17007-000 SUB: 09380B17007N000	CIRCLIP, 3RD DRIVE	1	Rp11.000
8	08110-62030-000 SUB: 08110-62030L000	BEARING, COUNTER RH	1	Rp33.500
9-1	DISCONTINUE SUB: 24130B16H00N000	SHAFT, DRIVE (NT:25)	1	-	FL125SDK7/SDK8/RDK8/RCDFK8
9-2	DISCONTINUE SUB: 24130B16H50N000	SHAFT, DRIVE (NT:25)	1	-	FL125RCDMK7/RCDMK8
10	24311-16H10-000 SUB: 24311B16H00N000	GEAR, 1ST DRIVEN (NT:32)	1	Rp66.000
11	DISCONTINUE SUB: 24331B16H00N000	GEAR, 3RD DRIVEN (NT:22)	1	-
12	24341-16H00-000 SUB: 24341B16H00N000	GEAR, 4TH DRIVEN (NT:20)	1	Rp85.000
13	DISCONTINUE SUB: 09160B13006N000	WASHER, 1ST DRIVEN	1	-	13X24X1
14	08123-62030-000 SUB: 08123B62030N000	BEARING, DRIVE SHAFT LH	1	Rp42.000
15	09263-13002-000 SUB: 09263B13002N000	BEARING, DRIVE SHAFT RH	1	Rp28.500	13X19X14
16	09283-17025-000 SUB: 09283-17025L000	SEAL, DRIVE SHAFT	1	Rp7.000	17X30X7
17	09380-17007-000 SUB: 09380B17007N000	CIRCLIP, 4TH DRIVEN	1	Rp11.000
18	24741-20A10-000 SUB: 24741B20A10N000	RETAINER, COUNTERSHAFT BRG	1	Rp3.500
19	02112-0612A-000 SUB: 02112B0612BN000	SCREW, COUNTER SHAFT	1	Rp3.500
20	DISCONTINUE SUB: 24751B16H00N000	RETAINER, DRIVE SHAFT OIL SEAL	1	-
21	01500-0610A-000 SUB: 01500B0610BN000	BOLT, RTNR	2	Rp6.500
22	27511-09G10-000 SUB: 27511B09G00N000	SPROCKET, ENGINE (NT:14)	1	Rp53.500
23	27512-09G00-000 SUB: 27512B09G00N000	PLATE, ENGINE SPROCKET	1	Rp8.500
24	27600-20940-100 SUB: 27600B20940N100	DRIVE CHAIN (FSCM 428-100)	1	Rp82.000
25	01500-0610A-000 SUB: 01500B0610BN000	BOLT, ENGINE SPROCKET	2	Rp6.500
26	25361-16H00-000 SUB: 25361B16H00N000	PLATE, ROTARY STOP	1	Rp18.000	FL125SDK7/SDK8/RDK8/RCDFK8
27	DISCONTINUE SUB: 09164B25002N000	WASHER, ROTARY WAVE	1	-	FL125SDK7/SDK8/RDK8/RCDFK8
28	DISCONTINUE SUB: 08331-3125A-000	CIRCLIP	1	-	FL125SDK7/SDK8/RDK8/RCDFK8
