SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.1A CYLINDER HEAD (FL125RCDF)FIG.2 CYLINDER (FL125SC/SD/RD/RCDF/RCDM/RMD)FIG.2A CYLINDER (FL125RCDF)FIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.6A FLYWHEEL (FL125RCDM/RMD)FIG.7 CRANK BALANCERFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 CARBURETOR (FL125SC/SD/RD/RCDM/RMD)FIG.10A THROTTLE BODY (FL125RCDF)FIG.11 AIR CLEANER (FL125SC/SD/RD/RCDM/RMD)FIG.11A AIR CLEANER (FL125RCDF)FIG.12 MUFFLER (FL125SC/SD/RD/RCDM/RMD)FIG.12A MUFFLER (FL125RCDF)FIG.13 OIL PUMPFIG.14 2ND AIR (FL125SC/SD/RD/RCDM/RMD)FIG.14A FUEL HOSE (FL125RCDF)FIG.15 CLUTCH (FL125SDK7/SDK8/RDK8)FIG.15A CLUTCH (FL125RCDFK8)FIG.15B CLUTCH (FL125RCDMK7/RCDMK8)FIG.16 TRANSMISSIONFIG.17 GEAR SHIFTING (FL125SDK7/SDK8/RDK8/RCDFK8)FIG.17A GEAR SHIFTING (FL125RCDMK7/RCDMK8)FIG.18 KICK STARTER

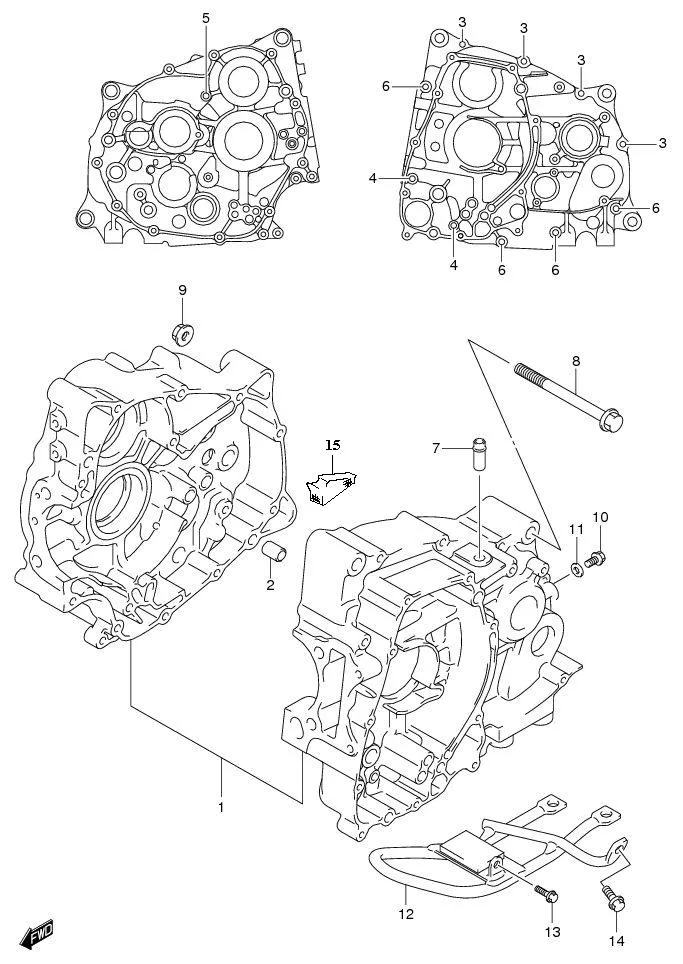

FIG.3 CRANKCASE

FIG.3 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11300B16H10N000		 CRANKCASE ASSY 1 -
2 04211-11169-000
SUB: 04211B11169N000		 •PIN 2 Rp2.000
3 01547-0650A-000
SUB: 01547B0650BN000		 •SCREW 4 Rp7.000
4 DISCONTINUE
SUB: 01547-06557-000		 •SCREW 2 -
5 01547-0665A-000
SUB: 01547B0665BN000		 •SCREW 1 Rp7.500
6 01547-0675A-000
SUB: 01547B0675BN000		 •SCREW 4 Rp7.500
7 DISCONTINUE
SUB: 09364B08005N000		 UNION, BREATHER HOSE 1 -
8 09103-10110-000
SUB: 09103B10110N000		 BOLT (L:100) 3 Rp11.500
9 08319-3110A-000
SUB: 08319B3110AN000		 NUT 3 Rp4.500
10 01547-0610A-000
SUB: 01547B0612BN000		 PLUG, OIL GALLERY 1 Rp3.000
11 09168-06004-000
SUB: 09168B06004N000		 GASKET (6.2X11X1.2) 1 Rp2.500
12 DISCONTINUE
SUB: 11470B16H10N000		 GUARD, ENGINE 1 -
13 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 1 Rp3.000
14 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 3 Rp6.000
15 DISCONTINUE
SUB: 11186B16H00N000		 SEPARATOR, OIL BREATHER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
