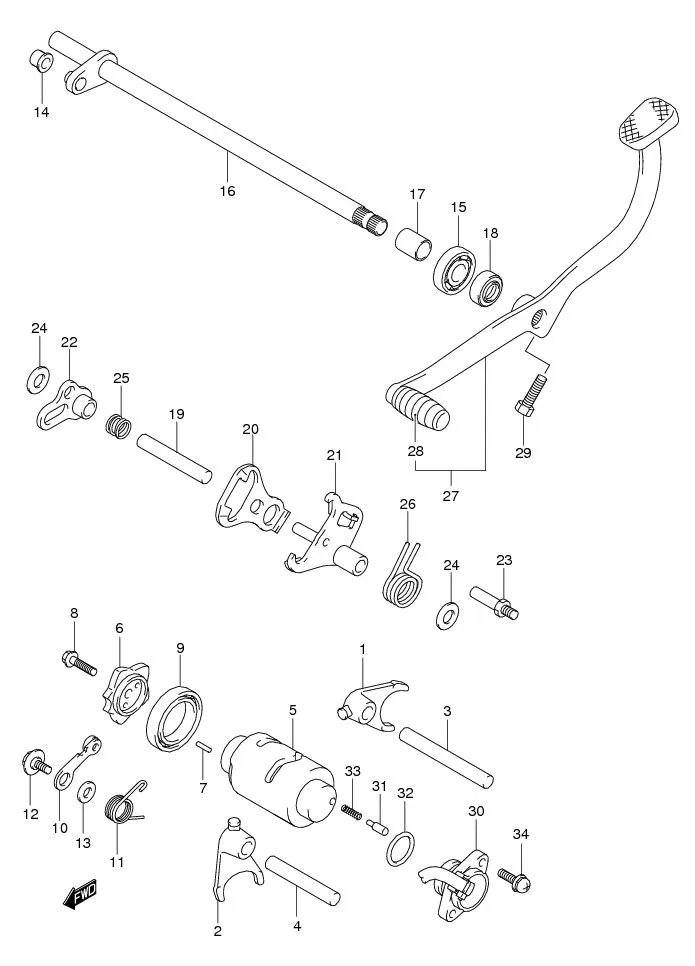

FIG.17A GEAR SHIFTING (FL125RCDMK7/RCDMK8)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 25211B16H00N000	FORK, GEAR SHIFT NO.1	1	-
2	DISCONTINUE SUB: 25221B16H00N000	FORK, GEAR SHIFT NO.2	1	-
3	DISCONTINUE SUB: 25421B14A02N000	SHAFT, SHIFT FORK NO.1	1	-
4	DISCONTINUE SUB: 25421B35403N000	SHAFT, SHIFT FORK NO.2	1	-
5	DISCONTINUE SUB: 25311B16H50N000	CAM, GEAR SHIFT	1	-
6	DISCONTINUE SUB: 25380-16H50-000	PLATE, GEAR SHIFT	1	-
7	09261-03002-000 SUB: 09261B03002N000	PIN, CAM STOPPER (3X9.8)	2	Rp2.500
8	01547-0620B-000 SUB: 01547B0620BN000	BOLT, SHIFT CAM PIN	1	Rp6.500
9	08110-69050-000 SUB: 08113B69050N000	BEARING, GEAR SHIFT CAM	1	Rp53.000
10	DISCONTINUE SUB: 25350B16H00N000	STOPPER, SHIFT CAM	1	-
11	DISCONTINUE SUB: 25355B16H50N000	SPRING.SHIFT CAM	1	-
12	09111-06041-000 SUB: 09111B06041N000	BOLT, SHIFT CAM (6X14.3)	1	Rp4.000
13	08211-06121-000 SUB: 08211B06121N000	WASHER, SHIFT CAM	1	Rp7.500
14	25529-16H00-000 SUB: 25529B16H00N000	ROLLER, GEAR SHIFT ARM	1	Rp10.500
15	08113-60010-000 SUB: 09262-12001L000	BEARING, GEAR SHIFT SHAFT	1	Rp34.000
16	25510-16H50-000 SUB: 25510B16H50N000	SHAFT, GEAR SHIFT NO.1	1	Rp80.000
17	DISCONTINUE SUB: 25516B16H50N000	SPACER, GEAR SHIFT SHAFT	1	-
18	09283-12010-000 SUB: 09283B12010N000	SEAL, SHIFT SHAFT OIL	1	Rp10.000	12X22X9
19	DISCONTINUE SUB: 25411B13A10N000	SHAFT, GEAR SHIFT NO.2	1	-
20	DISCONTINUE SUB: 25512B16H00N000	PLATE, GEAR SHIFT CAM DRIVE	1	-
21	25540-16H01-000 SUB: 25540B16H01N000	ARM, GEAR SHIFT	1	Rp57.000
22	25550-16H00-000 SUB: 25550B16H00N000	ARM, GEAR SHIFT LINK NO.2	1	Rp29.000
23	DISCONTINUE SUB: 25671B16H10N000	STOPPER, GEAR SHIFT ARM	1	-
24	09181-10167-000	WASHER, GEAR SHIFT NO.2	2	Rp11.500
25	09440-17009-000	SPRING, GEAR SHIFT RETURN	1	Rp13.000
26	25518-16H50-000 SUB: 25518B16H50N000	SPRING, GEAR SHIFT ARM	1	Rp7.500
27	25610-16H01-000 SUB: 25610B16H01N000	LEVER ASSY, GEAR SHIFT	1	Rp98.000
28	25652-16H11-000 SUB: 25652-16500L000	•RUBBER, GEAR SHIFT PEDAL	1	Rp3.500
29	01500-0620B-000 SUB: 01500B0620BN000	BOLT, LEVER	1	Rp3.000
30	37720-16H60-000 SUB: 37720B16H60N000	BASE ASSY, GEAR SHIFT TERM	1	Rp40.000
31	09209-05011-000 SUB: 09209B05011N000	CONTACT, GEAR POSITION	1	Rp5.500
32	09280-21008-000 SUB: 09280-21008L000	O RING, GEAR SHIFT	1	Rp2.500	D:2.5,ID:21.0
33	09440-04010-000 SUB: 09440B04010N000	SPRING, GEAR SHIFT	1	Rp3.000
34	09138-05018-000 SUB: 09138B05018N000	SCREW, GEAR SHIFT (5X16)	2	Rp7.000
