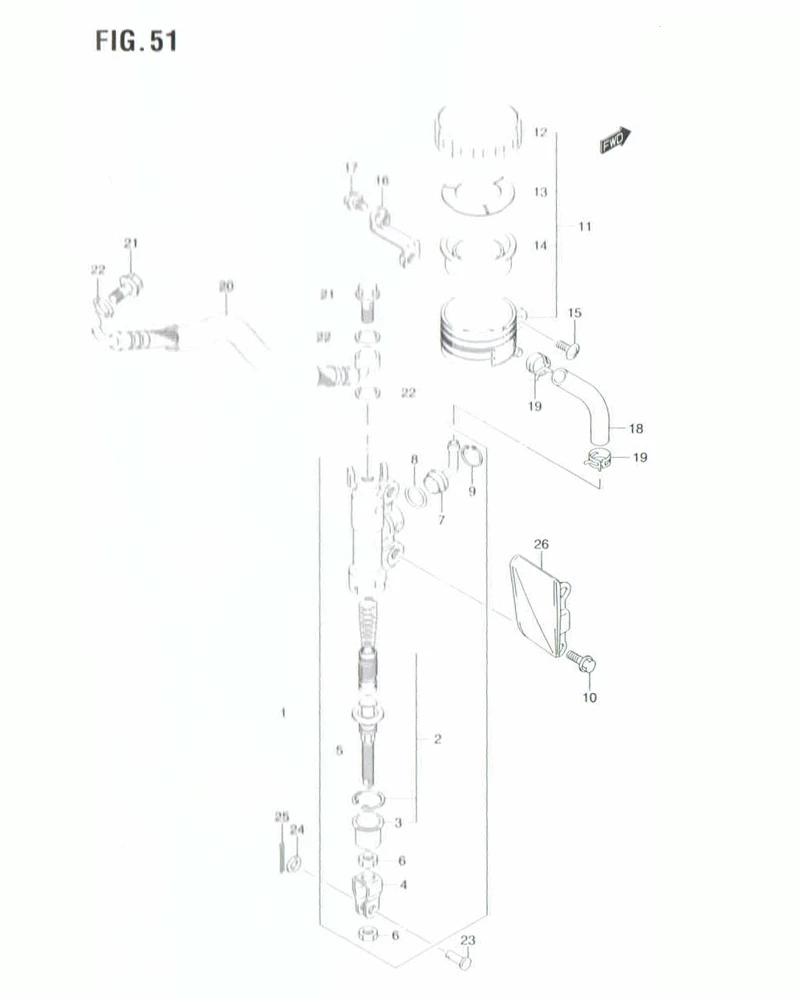

FIG. 51 REAR MASTER CYLINDER

FIG. 51 REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 69600-21D00-000
SUB: 69600-21D00L000		 CYLINDER ASSY, REAR MASTER 1 Rp327.000
2 69600-21810-000
SUB: 69600B21810N000		 .PISTON/CUP SET 1 Rp76.500
3 69691-00A00-000
SUB: 69691B00A00N000		 ..BOOT 1 Rp13.500
4 69692-27A30-000
SUB: 69692B27A30N000		 .YOKE 1 Rp43.000
5 69670-00B21-000
SUB: 69670-00B21L000		 .ROD, PUSH 1 Rp39.500
6 69693-05A00-000
SUB: 69693-05A00L000		 .NUT 2 Rp5.500
7 69672-00B20-000
SUB: 69672B00B20N000		 .CONNECTOR 1 Rp18.000
8 69686-34200-000
SUB: 69686B34200N000		 .0 RING 1 Rp8.000
9 DISCONTINUE
SUB: 69674-00B20L000		 .CIRCLIP 1 -
10 01550-06257-000
SUB: 01550B06257N000		 BOLT 2 Rp3.500
11 69740-20G00-000
SUB: 69740B20G00N000		 TANK ASSY, RESERVOIR 1 Rp82.500
12 69668B20G00N000 .CAP 1 -
13 59668-18441-000
SUB: 59668B18441N000		 .PLATE 1 Rp3.000
14 59667-18441-000
SUB: 59667B18441N000		 .DIAPHGRAM 1 Rp13.500
15 02142-0612A-000
SUB: 02142B0612BN000		 SCREW, RESERVOIR TANK 1 Rp4.000
16 69750-25G00-000
SUB: 69750B25G00N000		 BRACKET, RESERVOIR TANK 1 Rp23.000
17 01550-0610B-000
SUB: 01550B0610BN000		 BOLT, TANK BRACKET 1 Rp3.000
18 69731-25G10-000
SUB: 69731B25G10N000		 HOSE, RESERVOIR TANK 1 Rp30.500
19-1 69735-38D00-000
SUB: 69735B38D00N000		 CLAMP, HOSE 2 Rp9.000
19-2 69735-25G10-000
SUB: 69735B25G10N000		 CLAMP, HOSE 2 Rp7.000
19-3 69735-25G10-000
SUB: 69735B25G10N000		 CLAMP, HOSE 2 Rp7.000
20 69480-25G00-000
SUB: 69480B25G00N000		 OSE, REAR BRAKE 1 Rp122.000
21-1 59623B23F00N000 BOLT 2 -
21-2 09360-10062-000
SUB: 09360B10062N000		 BOLT 2 Rp13.000
22 09168-10033-000
SUB: 09168B10033N000		 WASHER 4 Rp8.500
23 09200-06037-000
SUB: 09200-06068-000		 PIN 1 Rp3.500
24 08322-0106B-000
SUB: 08322B0106BN000		 WASHER 1 Rp6.000
25 04111-2015A-000
SUB: 04111B2015AN000		 PIN, COTTER 1 Rp4.500
26-1 DISCONTINUE
SUB: 69641-25G00-000		 COVER, MASTER CYLINDER 1 -
26-2 DISCONTINUE
SUB: 69641B25G10N000		 COVER, MASTER CYLINDER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
