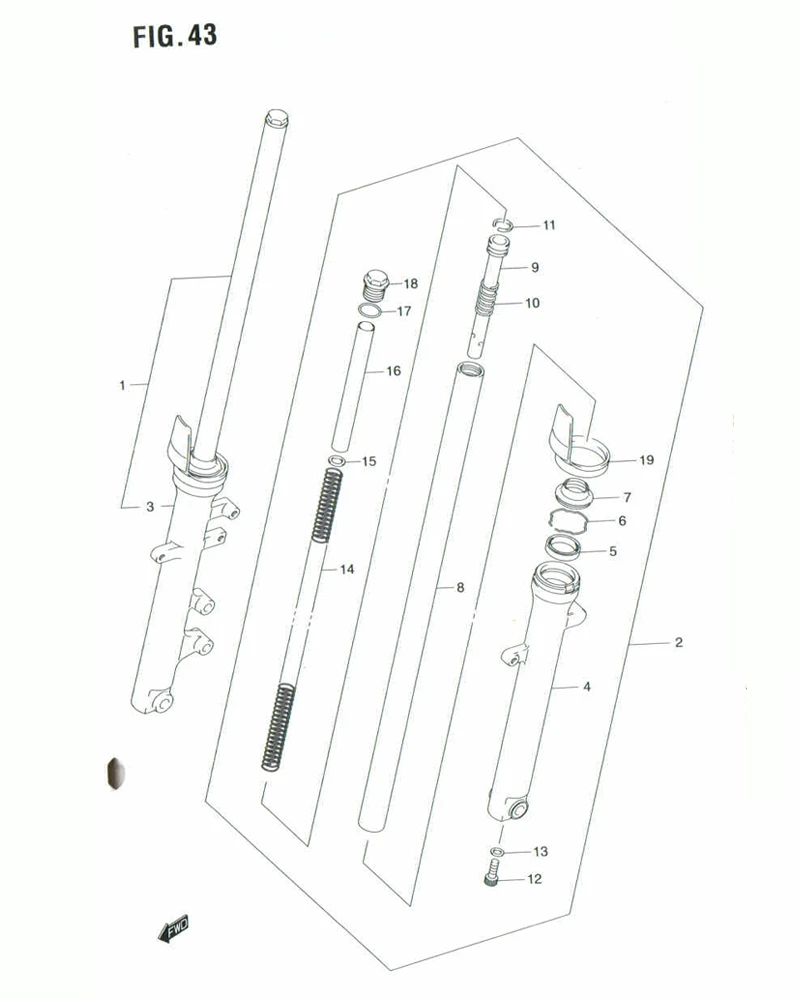

FIG. 43 FRONT DAMPER

FIG. 43 FRONT DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51103-25G50-YSW
SUB: 51103B25G20N000		 DAMPER ASSY, FRONT FORK RH 1 Rp853.500
1-1 DISCONTINUE
SUB: 51103-25G00-000		 DAMPER ASSY, FRONT FORK RH 1 -
2-1 DISCONTINUE
SUB: 51104-25G00-000		 DAMPER ASSY, FRONT FORK LH 1 -
2-2 51105B25G20N000 DAMPER ASSY, FRONT FORK LH 1 -
3-1 DISCONTINUE
SUB: 51130-25G00-000		 .TUBE, OUTER RH 1 -
3-2 51130-25G50-YSW
SUB: 51130B25G20N000		 .TUBE, OUTER RH 1 Rp495.500
4-1 DISCONTINUE
SUB: 51140-25G00-000		 .TUBE, OUTER LH 1 -
4-2 51140-25G50-YSW
SUB: 51140B25G20N000		 .TUBE, OUTER LH 1 Rp495.500
5 51153B23F00N000 .SEAL, OIL 2 Rp18.000
6 51156-43010-000
SUB: 51156B43010N000		 .RING, OIL SEAL 2 Rp6.000
7 51173-23F00-000
SUB: 51173B23F00N000		 .SEAL, DUST 2 Rp41.500
8 51110-25G00-000
SUB: 51110B25G00N000		 .TUBE, INNER 2 Rp431.000
9 51146-31CBL-000 .CYLINDER 2 -
10 51177B35400N000 .SPRING, REBOUND 2 Rp7.000
11 51196-39140-000
SUB: 51196B39140N000		 .RING, PISTON 2 Rp7.500
12 51147-16510-000
SUB: 51147-16510L000		 .BOLT 2 Rp10.500
13 51148-41310-000
SUB: 51148B41310N000		 .GASKET 2 Rp8.500
14 51176-25G00-000 .SPRING, FRONT 2 Rp58.000
15 51172-27510-000 .WASHER 2 Rp5.000
16 DISCONTINUE
SUB: 51176-23330-000		 .SPACER 2 -
17 51181-37B00-000
SUB: 09280B17002N000		 .O RING 2 Rp5.000
18 51351-25G00-000 .CAP 2 Rp47.000
19 51201-25G00-000 .PROTECTOR 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
