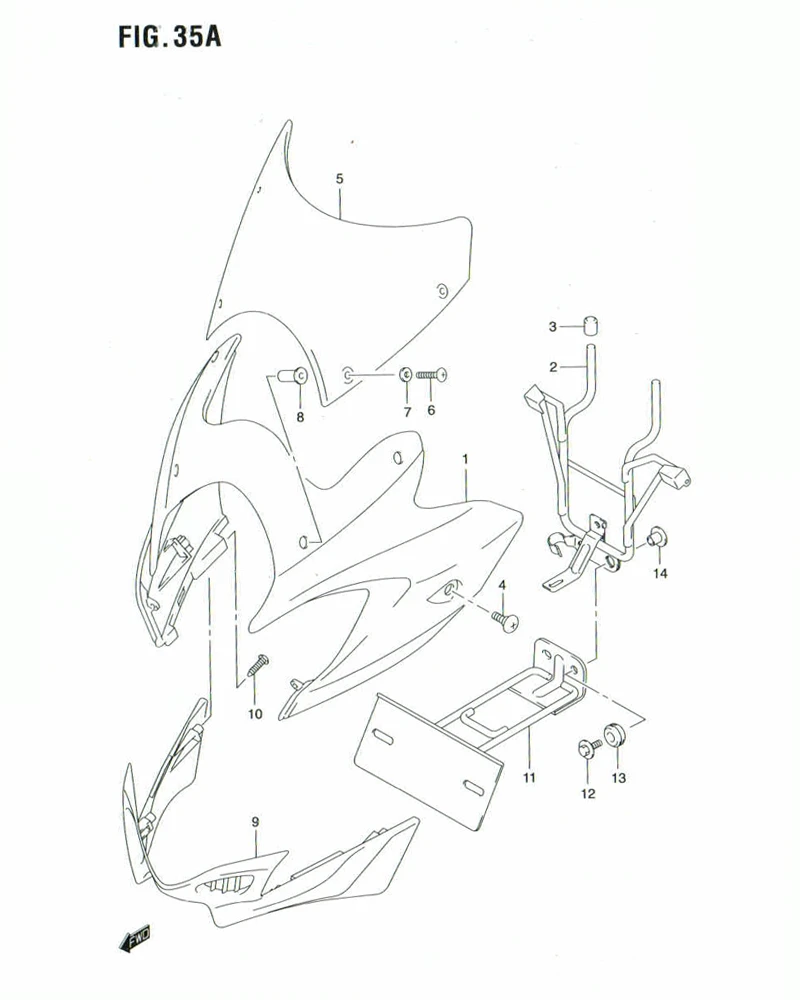

FIG. 35A HEADLAMP HOUSING (MODEL K9)

FIG. 35A HEADLAMP HOUSING (MODEL K9)
No No. Part Description Qty Price Per Pcs Remarks
1 51811B25G10N000 HOUSING, HEADLAMP 1 -
2 51850-25G20-000
SUB: 51850B25G10N000		 BRACE, HOUSING 1 Rp58.000
3 51831-25G00-000 CUSHION 2 Rp14.500
4 09139-06145-000
SUB: 09139B06145N000		 SCREW 2 Rp6.500
5 94611-25G00-000
SUB: 94611B25G00N000		 WINDSCREEN 1 Rp151.000
6 94619-28G00-000
SUB: 94619B28G00N000		 SCREW 4 Rp4.000
7 DISCONTINUE
SUB: 94494N28G00N000		 WASHER 4 -
8 09159-05019-000 NUT 4 Rp41.500
9 51833B25G00N000 COVER, LOWER 1 -
10 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 6 Rp3.500
11 48190-25G01-000
SUB: 48190B25G00N000		 PLATE, LICENSE 1 Rp45.000
12 09116-06152-000 BOLT, BRACE 2 Rp15.000
13 09320-09026-000
SUB: 09320B09026N000		 CUSHION 2 Rp12.500
14 51832-25G00-000
SUB: 51832B25G00N000		 SPACER 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
