Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

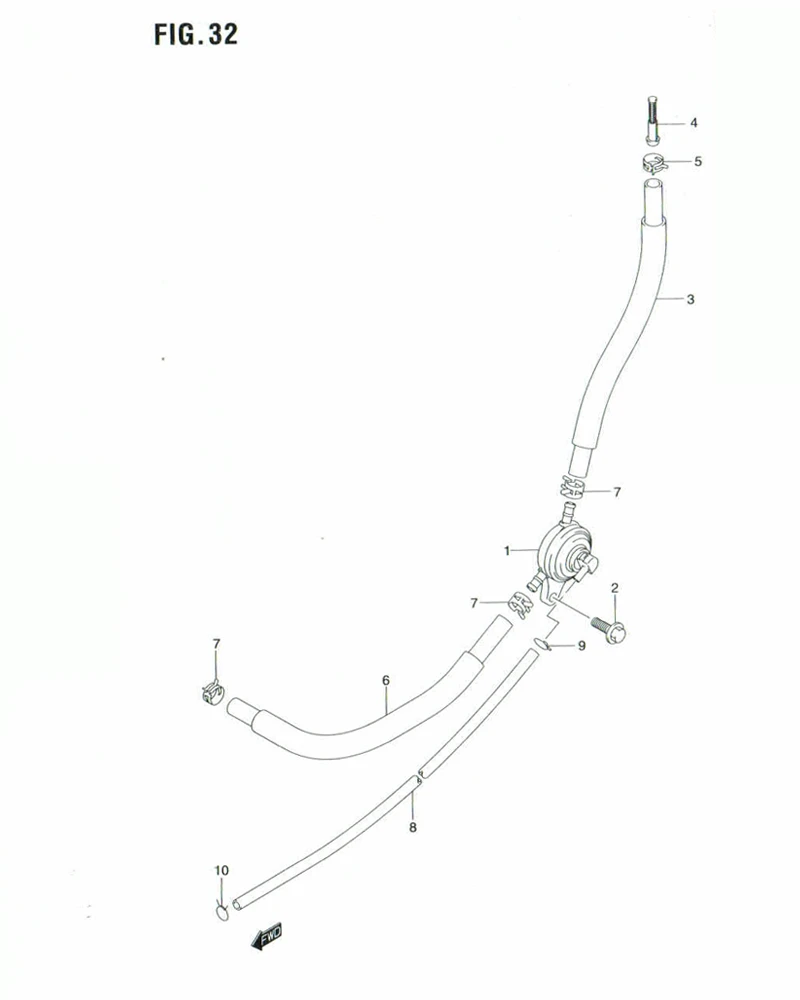

FIG. 32 FUEL COCK

FIG. 32 FUEL COCK
No No. Part Description Qty Price Per Pcs Remarks
1 44300-09G00-000
SUB: 44300B09G00N000		 COCK ASSY, FUEL 1 Rp278.000
2 01550-0616B-000 BOLT, COCK 1 Rp5.500
3 44421-25G00-000
SUB: 44421B25G00N000		 HOSE, TANK & COCK 1 Rp22.000
4 44322-27001-000
SUB: 44322B27001N000		 FILTER 1 Rp16.500
5 09401-10409-000
SUB: 09401B10409N000		 CLIP 1 Rp7.500
6 44422-25G00-000
SUB: 44422B25G00N000		 HOSE, COCK & CARB 1 Rp20.000
7 09401-09403-000 CLIP 3 Rp3.500
8 09359-40702-390
SUB: 09359B40702N390		 HOSE, VACUUM 1 Rp8.500
9 09401-06101-000
SUB: 09401B06101N000		 CLIP, VACUUM HOSE NO.1 1 Rp2.000
10 09401-08402-000
SUB: 09401B08402N000		 CLIP, VACUUM HOSE NO.2 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
