Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

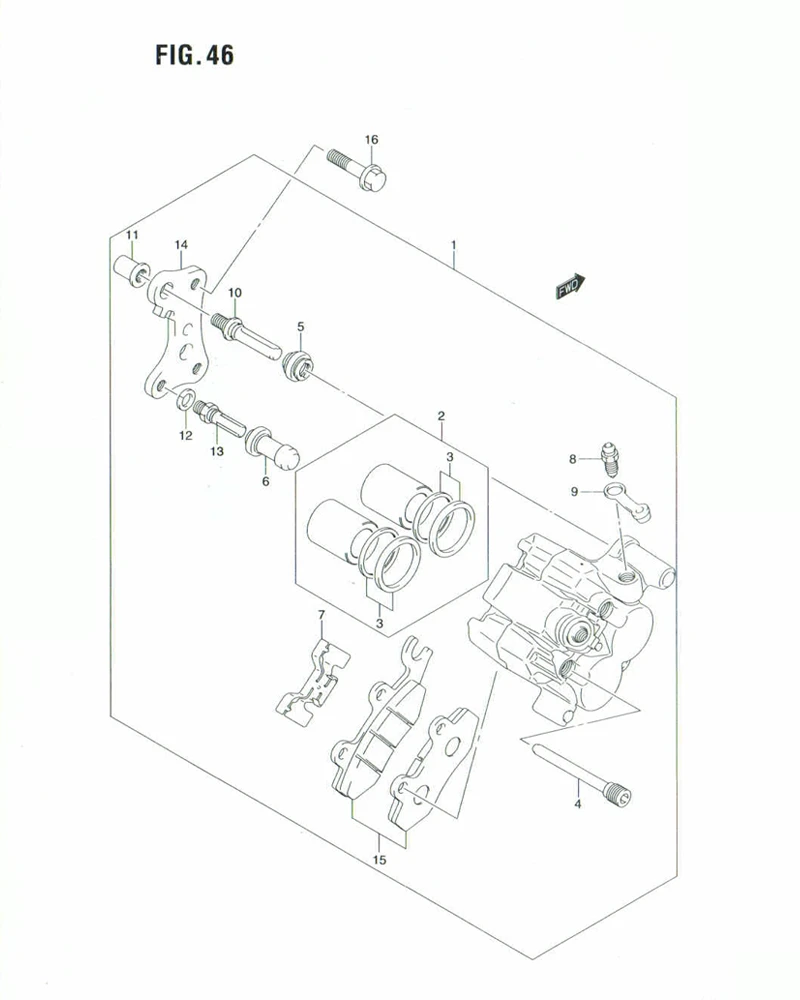

FIG. 46 FRONT CALIPER

FIG. 46 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-25G30-000
SUB: 59100B25G01NZ00		 CALIPER ASSY, FRONT RH 1 Rp844.000
2 69100-31810-000
SUB: 69100-31810L000		 .PISTON SET 1 Rp166.500
3 59300-13820-000
SUB: 59300-13820L000		 ..SEAL SET, PISTON 1 Rp37.000
4 59345-14600-000
SUB: 59345-14600L000		 .PIN 2 Rp35.000
5 59303-14500-000
SUB: 59303B14500N000		 .BOOT 1 Rp12.500
6 59386-13A00-000
SUB: 59386B13A00N000		 .BOOT 1 Rp14.000
7 69115-31D10-000
SUB: 69115-31D10L000		 .SPRING 2 Rp26.500
8 59121-01A00-000
SUB: 59121B01A00N000		 .BLEEDER 1 Rp14.500
9 59122-01A00-000
SUB: 59122B01A00N000		 .CAP, BLEEDER 1 Rp3.000
10 59387-00B20-000
SUB: 59387B00B20N000		 .PIN 1 Rp25.500
11 59388-00B20-000
SUB: 59388B00B20N000		 .NUT 1 Rp28.500
12 59314BB13A00N .WASHER 1 -
13 59382-13A00-000
SUB: 59382B13A00N000		 .BOLT 1 Rp13.500
14 59351-21D00-000
SUB: 59351B21D00N000		 .BRACKET 1 Rp96.500
15 59100-25810-000
SUB: 59100B25810N000		 .PAD SET 1 Rp90.000
16 09103-08107-000
SUB: 09103B08107N000		 BOLT (8X33) 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
