Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

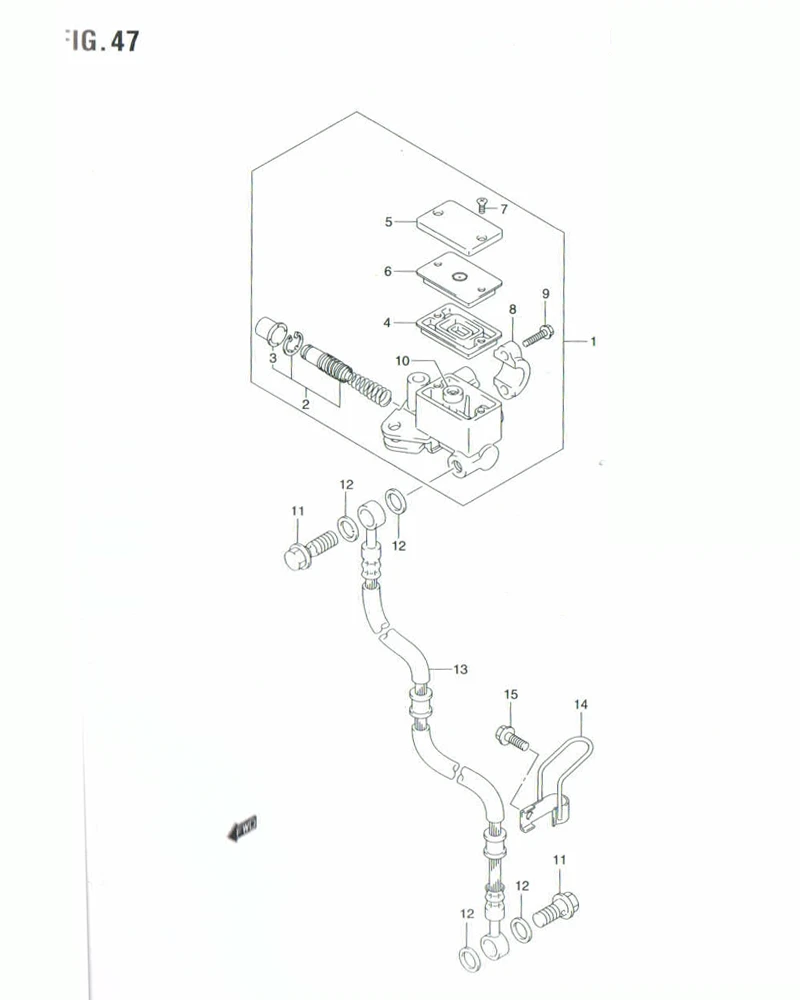

FIG. 47 FRONT MASTER CYLINDER

FIG. 47 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-21D30-000
SUB: 59600B21D30N000		 CYLINDER ASSY, FRONT MASTER 1 Rp1.081.000
2 59600-21810-000
SUB: 59600B21810N000		 .PISTON/CUP SET 1 Rp73.500
3 59666-44300-000
SUB: 59666B44300N000		 ..BOOT 1 Rp16.000
4 59667-44B00-000
SUB: 59667B44B00N000		 .DIAPHGRAM 1 Rp13.000
5 59669-21D20-000
SUB: 59669B21D20N000		 .CAP 1 Rp40.000
6 59668-21D20-000
SUB: 59668B21D20N000		 .PLATE, DIAPHGRAM 1 Rp3.000
7 69689-49300-000
SUB: 69689B49300N000		 .SCREW 2 Rp3.000
8 59671-36500-000
SUB: 59671B36500N000		 .HOLDER 1 Rp23.000
9 59675-02FA0-000
SUB: 59675B02FA0N000		 .BOLT 2 Rp9.000
10 59664-32F00-000
SUB: 59664B32F00N000		 .SEPARATOR 1 Rp20.500
11-1 DISCONTINUE
SUB: 59263B23F00N000		 BOLT, BRAKE FLUID 2 -
11-2 09360-10062-000
SUB: 09360B10062N000		 BOLT, BRAKE FLUID 2 Rp13.000
12 09168-10033-000
SUB: 09168B10033N000		 WASHER 4 Rp8.500
13 59480-25G00-000
SUB: 59480B25G00N000		 HOSE, FRONT BRAKE 1 Rp127.000
14 59260-25G00-000
SUB: 59260B25G00N000		 CLAMP, HOSE LOWER 1 Rp3.500
15 01550-0610B-000
SUB: 01550B0610BN000		 BOLT, LOWER HOSE 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
