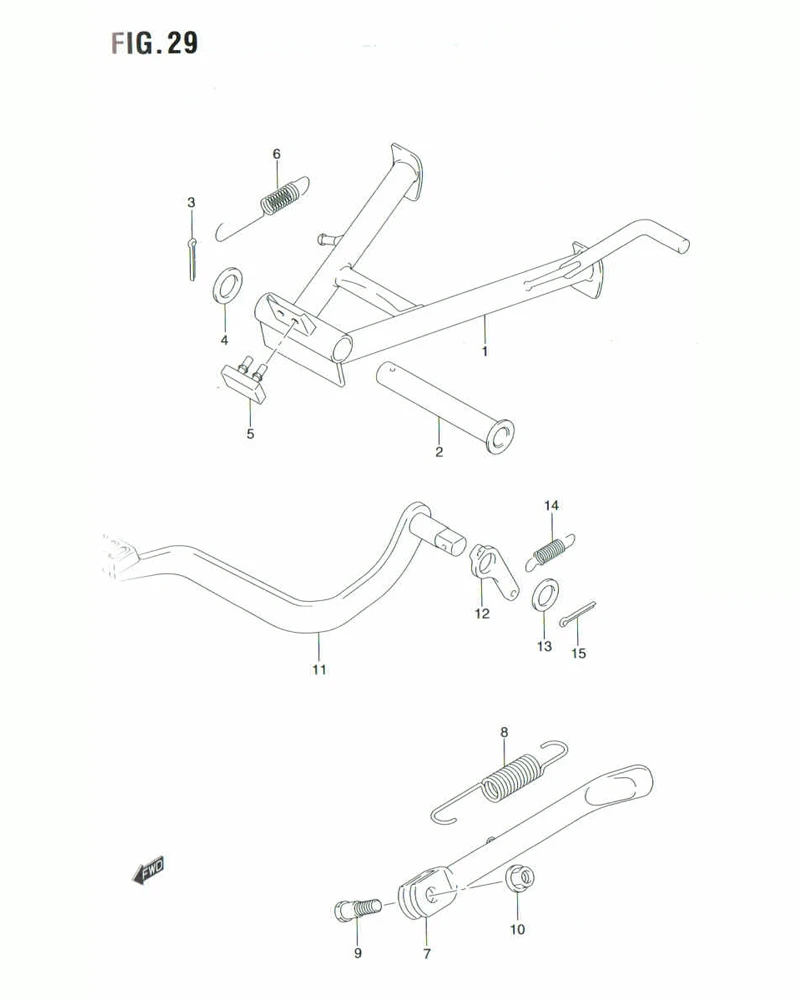

FIG. 29 STAND/BRAKE PEDAL

FIG. 29 STAND/BRAKE PEDAL
No No. Part Description Qty Price Per Pcs Remarks
1-1 42100-25G11-000 STAND, CENTER 1 Rp106.000
1-2 42100-25G11-000
SUB: 42100B25G11N000		 STAND, CENTER 1 Rp106.000
2 42211-25G00-000
SUB: 42211B09G00N000		 SHAFT, CENTER STAND 1 Rp23.500
3 04111-3025A-000
SUB: 04111B3025AN000		 COTTER PIN 1 Rp3.500
4 08322-0116B-000 WASHER 1 Rp3.500
5 42272-09G00-000
SUB: 42272B09G00N000		 CUSHION, CENTER STAND 1 Rp4.500
6 42241-09G00-000
SUB: 42241B09G00N000		 SPRING 1 Rp9.000
7 42310B47E10N000 STAND, PROP 1 -
8 09443-14022-000
SUB: 09443-14022L000		 SPRING 1 Rp5.000
9 42341-25G10-000
SUB: 42341-25G00-000		 NBOLT 1 Rp5.000
10 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
11 43110-25G00-000
SUB: 43110B25G00N000		 PEDAL, BRAKE 1 Rp124.000
12 4312B25G00N-000 PLATE, RETURN SPRING 1 -
13 DISCONTINUE
SUB: 09160B15049N000		 WASHER 1 -
14 43211-25G00-000
SUB: 43211B25G00N000		 SPRING 1 Rp4.000
15 04111-3025A-000
SUB: 04111B3025AN000		 COTTER PIN 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
