Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

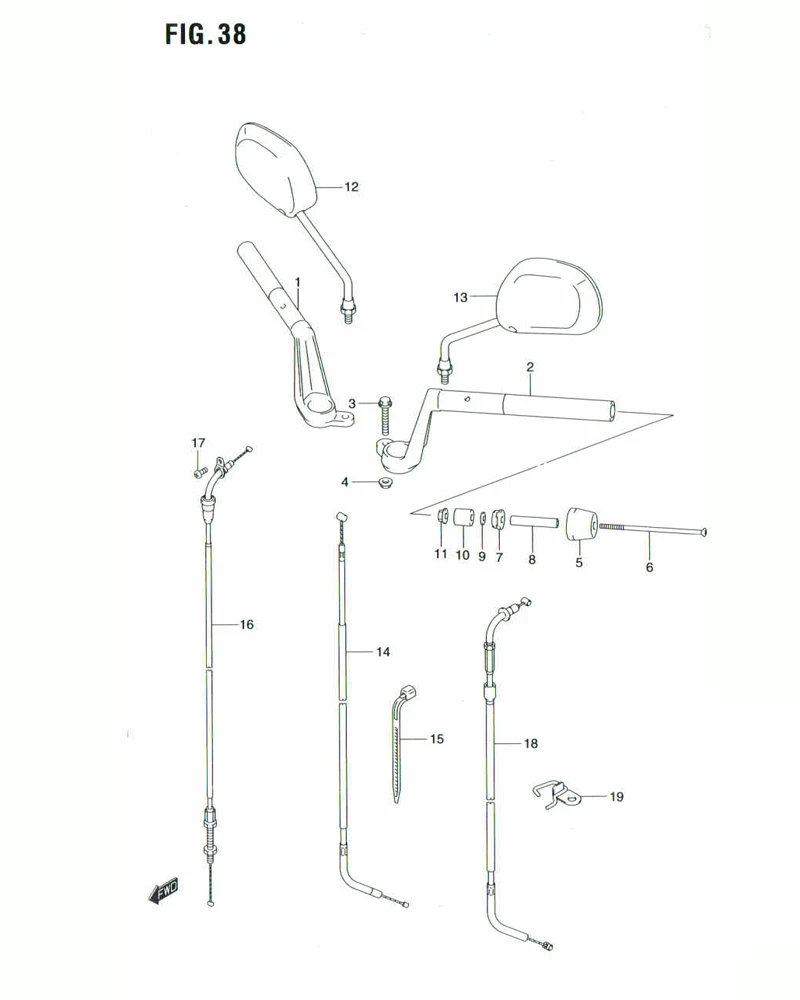

FIG. 38 HANDLEBAR

FIG. 38 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1-2 56110-25G20-000
SUB: 56110B25G20N000		 HANDLEBAR, RH 1 Rp148.000
1-1 DISCONTINUE
SUB: 56110B25G10N000		 HANDLEBAR, RH 1 -
2-1 56150-25G10-13L
SUB: 56150B25G10N000		 HANDLEBAR, LH 1 Rp141.000
2-2 56150-25G00-019
SUB: 56150B25G00N000		 HANDLEBAR, LH 1 Rp134.000
3 09103-08353-000 BOLT, HANDLEBAR 2 Rp8.500
4 08139B3108AN000 NUT, HANDLEBAR HOLDER 2 -
5 56278-47E00-000
SUB: 56278B47E00N000		 BALANCER, HANDLEBAR 2 Rp63.000
6 09127-06018-000
SUB: 09127B06018N000		 SCREW 2 Rp4.000
7 56272-23F00-000
SUB: 56272B23F00N000		 EXPANDER, OUTER 2 Rp3.000
8 56276-16H00-000 SPACER 2 Rp10.000
9 09160-06126-000
SUB: 09160B06126N000		 WASHER 2 Rp3.000
10 56272-23F10-000
SUB: 56272B23F10N000		 EXPANDER, INNER 2 Rp4.500
11 09159-06024-000
SUB: 09159B06024N000		 NUT 2 Rp4.000
12 56500-28F20-000
SUB: 56500B28F10N000		 MIRROR ASSY, REAR VIEW RH 1 Rp79.500
13 56600-28F20-000
SUB: 56600B28F10N000		 MIRROR ASSY, REAR VIEW LH 1 Rp79.500
14 58410-25G01-000 CABLE, STARTER 1 Rp45.000
15 09407-18402-000 CLAMP 1 Rp8.000
16-1 58300-25G10-000
SUB: 58300-25G00-000		 CABLE ASSY, THROTTLE 1 Rp119.000
16-2 58300-25G10-000
SUB: 58300B25G10N000		 CABLE ASSY, THROTTLE 1 Rp119.000
17 02112-0512A-000
SUB: 02112B05123N000		 SCREW 1 Rp2.500
18 58200A25G01U000
SUB: 58200-25G00-000		 CABLE ASSY, CLUTCH 1 Rp101.500
19 58620-25G00-000
SUB: 58620B25G00N000		 GUIDE, CABLE 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
