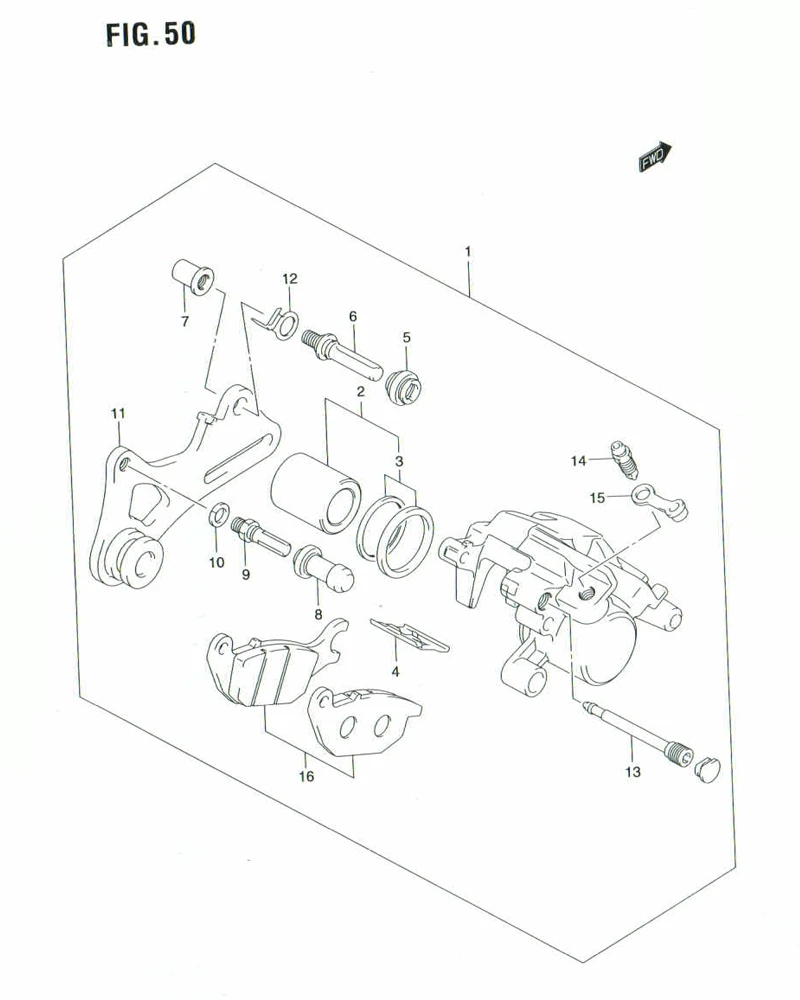

FIG. 50 REAR CALIPER

FIG. 50 REAR CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 69100B25G10N000 CALIPER ASSY, REAR 1 -
2 69100-28510-000
SUB: 69100B28510N000		 .PISTON SET 1 Rp131.500
3 59100-38860-000
SUB: 59100B38860N000		 ..SEAL SET, PISTON 1 Rp37.500
4 69115-20G01-000
SUB: 69115B20G01N000		 .SPRING 1 Rp35.000
5 59303-14500-000
SUB: 59303B14500N000		 .BOOT 1 Rp12.500
6 59387-00B20-000
SUB: 59387B00B20N000		 .PIN 1 Rp25.500
7 59388-00B20-000
SUB: 59388B00B20N000		 .NUT 1 Rp28.500
8 59386-13A00-000
SUB: 59386B13A00N000		 .BOOT 1 Rp14.000
9 59382-13A00-000
SUB: 59382B13A00N000		 .PIN 1 Rp13.500
10 59314-13A00-000
SUB: 59314B13A00N000		 .WASHER 1 Rp3.000
11 69721-25G00-000 .BRACKET 1 Rp81.000
12 69116-20G00-000
SUB: 69116B20G00N000		 .RETAINER 1 Rp16.000
13 69345B20GOON000 .PIN, HANGER 2 -
14 59121-01A00-000
SUB: 59121B01A00N000		 .BLEEDER 1 Rp14.500
15 59122-01A00-000
SUB: 59122B01A00N000		 .CAP 1 Rp3.000
16 69100-20840-000
SUB: 69100B20840N000		 .PAD SET 1 Rp90.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
