Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

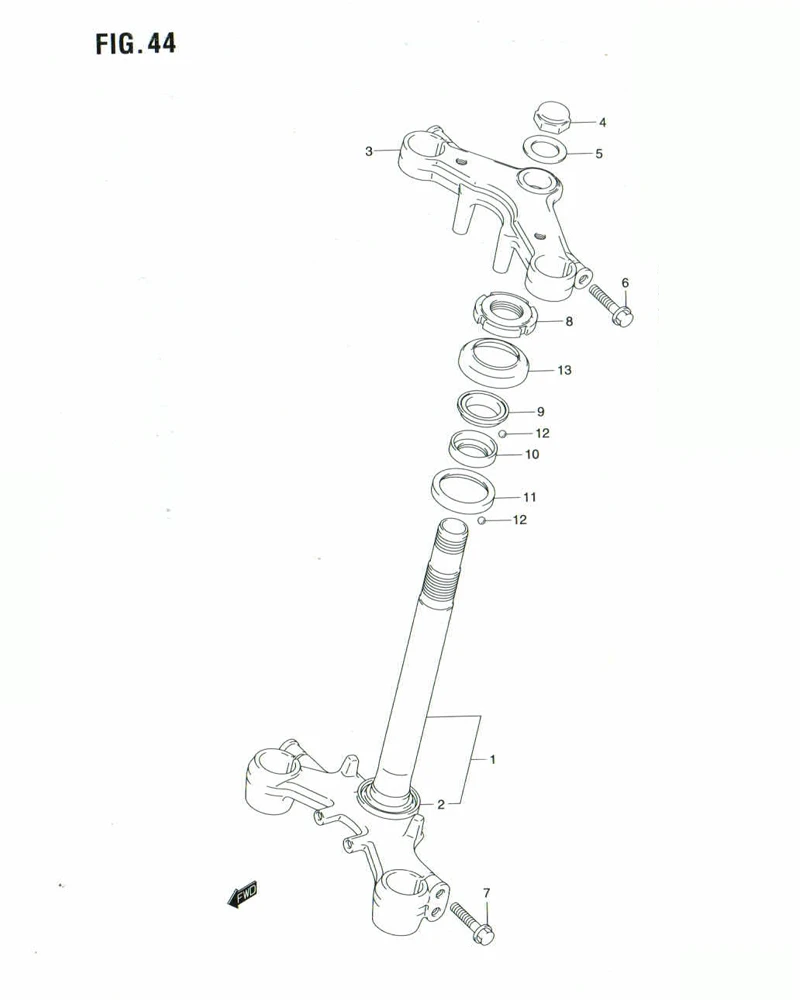

FIG. 44 STEERING STEM

FIG. 44 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410B25GOON000 STEM, STEERING 1 -
2 51622-25G00-000
SUB: 51622B25G00N000		 .RACE 1 Rp48.000
3-1 51311-25G00-000
SUB: 51311B25G00N000		 HEAD, STEERING STEAM 1 Rp320.000
3-2 51311-25G60-000
SUB: 51311B25G30N000		 HEAD, STEERING STEAM 1 Rp451.000
4 51353-26F00-000 NUT 1 Rp91.000
5 51356-10D03-000 WASHER 1 Rp10.500
6 01550-0835B-000
SUB: 01550B0835BN000		 BOLT, HEAD 2 Rp4.500
7 01550-0835B-000
SUB: 01550B0835BN000		 BOLT, STEM 4 Rp4.500
8 51631-28000-000
SUB: 51631B28000N000		 NUT, STEERING STEM 1 Rp27.000
9 51611-09G00-000
SUB: 51611B09G00N000		 RACE, INNER UPPER 1 Rp29.000
10 51612-35400-000
SUB: 51612B35400N000		 RACE, INNER LOWER 1 Rp24.000
11 51621-28000-000
SUB: 51621B28000N000		 RACE, OUTER UPPER 1 Rp23.000
12 06111-06004-000
SUB: 06111B06003N000		 BALL, STEERING STEEL 50 Rp1.000
13 DISCONTINUE
SUB: 51643-25001L000		 DUST SEAL, UPPER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
