Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

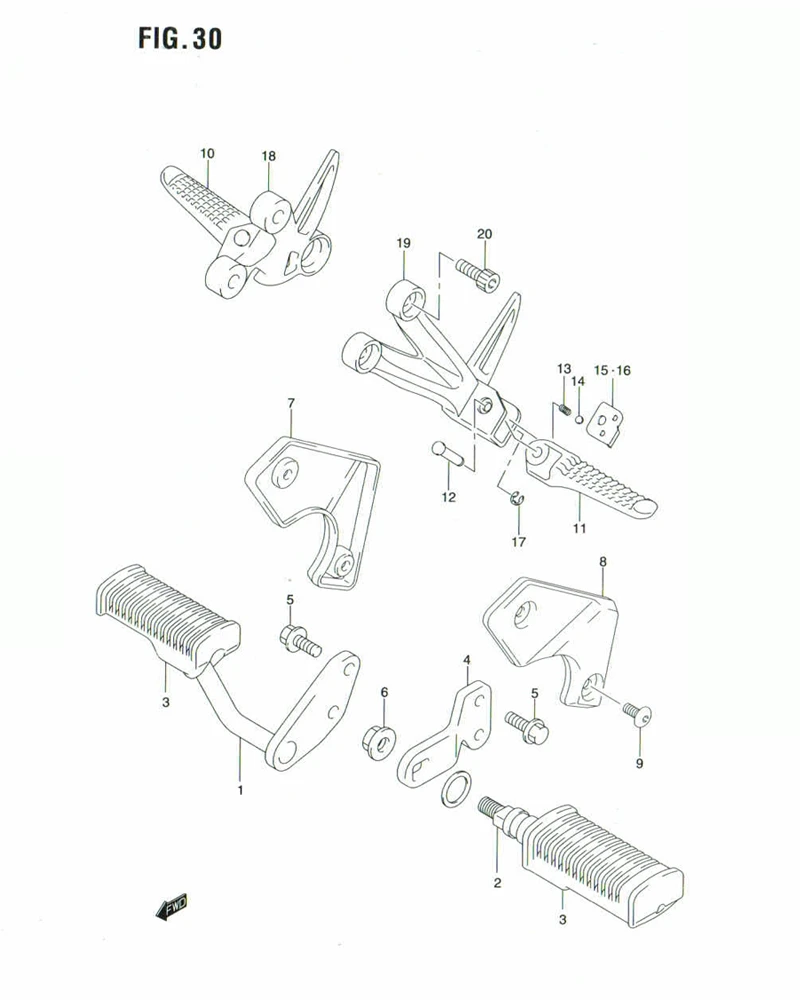

FIG. 30 FOOTREST

FIG. 30 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 43501B25G00N000		 FOOTREST ASSY, FRONT RH 1 -
2 DISCONTINUE
SUB: 43502B47E00N000		 FOOTREST ASSY, FRONT LH 1 -
3 43551-39160-000
SUB: 43551B39160N000		 .RUBBER 2 Rp18.500
4 DISCONTINUE
SUB: 43540B25G00N000		 BRACKET, FRONT TOOTREST LH 1 -
5 01550-0820B-000
SUB: 01550B0820BN000		 BOLT 4 Rp3.500
6 08319-3110A-000
SUB: 08319B3110BN000		 NUT, BAR 1 Rp4.500
7 DISCONTINUE
SUB: 43586B25G00N000		 GUARD, FOOTREST RH 1 -
8 4359B25G00N-000 GUARD, FOOTREST LH 1 -
9 09139-06167-000
SUB: 09139B06167N000		 SCREW 4 Rp4.000
10 43611-25G01-000
SUB: 43611B25G00N000		 BAR, PILLOW RH 1 Rp21.500
11 43621-25G01-000
SUB: 43621B25G00N000		 BAR, PILLOW LH 1 Rp21.500
12 87529-85510-000 PIN 2 -
13 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000
14 09440-05005-000
SUB: 09440B05005N000		 SPRING 2 Rp6.500
15 43816-33E21-000
SUB: 43816B33E21N000		 PLATE, RH 1 Rp5.500
16 43826-33E22-000
SUB: 43826B33E22N000		 PLATE, LH 1 Rp5.000
17 08332-1104A-000
SUB: 08332B1104AN000		 E RING 2 Rp9.500
18-1 DISCONTINUE
SUB: 43811B25G01N000		 BRACKET, PILLION RH 1 -
18-2 DISCONTINUE
SUB: 43811B25G10N000		 BRACKET, PILLION RH 1 -
19-1 DISCONTINUE
SUB: 43821B25G01N000		 BRACKET, PILLION LH 1 -
19-2 DISCONTINUE
SUB: 43821B25G10N000		 BRACKET, PILLION LH 1 -
20 43821B25G00N000 BOLT 4 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
