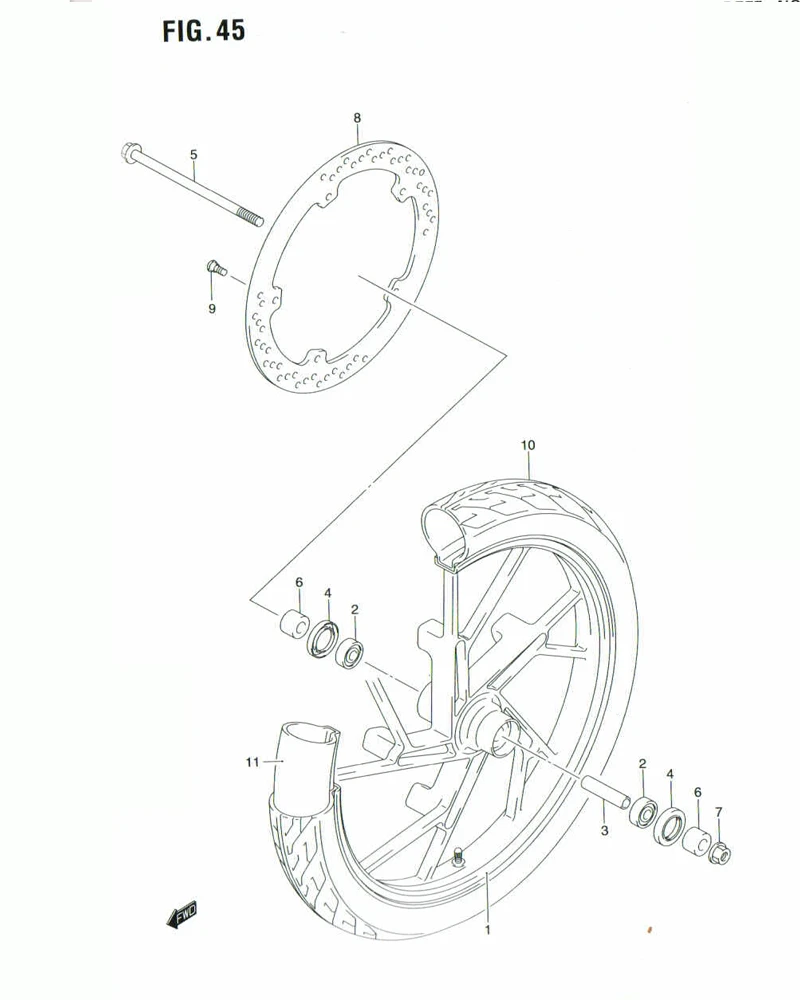

FIG. 45 FRONT WHEEL

FIG. 45 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-25G00-000 WHEEL, FRONT (17X1.40) 1 -
1-2 DISCONTINUE
SUB: 54111B25G31N000		 WHEEL, FRONT (17X1.40) 1 -
2 08113-63017-000
SUB: 08113-63010L000		 BEARING 2 Rp29.500
3 09180-12145-000
SUB: 09180B12145N000		 SPACER, FRONT HUB 1 Rp9.500
4 09285-25008-000
SUB: 09285-25003L000		 SEAL, FR WHEEL BEARING 2 Rp8.000
5 64711B09GOON000 AXLE, FRONT 1 -
6 54751-25G01-000
SUB: 54751B25G01N000		 SPACER, FRONT AXLE RH 2 Rp17.500
7 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
8-1 59211-25G40-000
SUB: 59211B25G00N000		 DISC, FRONT BRAKE 1 Rp333.000
8-2 59211-25G50-000
SUB: 59211B25G10N000		 DISC, FRONT BRAKE 1 Rp293.500
9 59218-09G10-000
SUB: 59218B09G00N000		 BOLT 5 Rp7.000
10 55110-20GG0-000
SUB: 55110B20G80N000		 TIRE, FRONT (70/90-17 38P) IRC 1 Rp272.500
11 DISCONTINUE
SUB: 55200B20G81N000		 TUBE ASSY, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
