Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

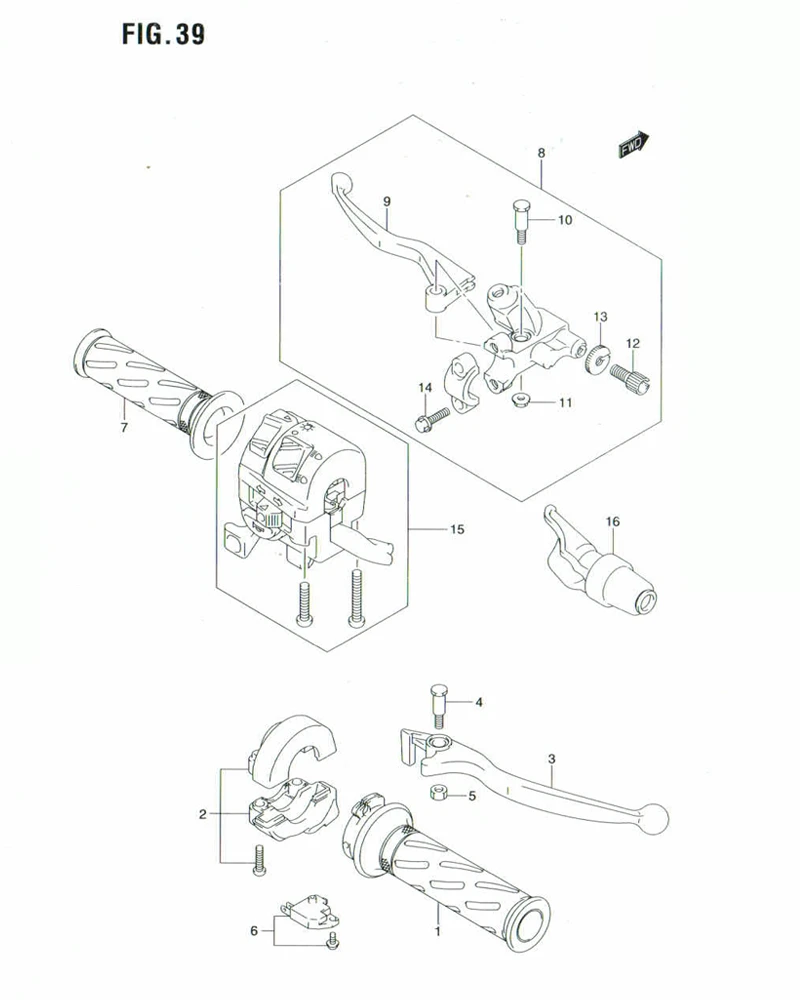

FIG. 39 HANDLE LEVER

FIG. 39 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-23F10-000
SUB: 57110-23F10L000		 GRIP, THROTTLE 1 Rp32.500
2-1 57100-09G11-000
SUB: 57100B09G10N000		 CASE ASSY, THROTTLE 1 Rp19.500
2-2 57100-09G01-000
SUB: 57100B09G01N000		 CASE ASSY, THROTTLE 1 Rp49.000
3 57421-21D10-100
SUB: 57421-21D10L000		 LEVER, BRAKE 1 Rp35.000
4 09111-06076-000
SUB: 09111B06076N000		 BOLT 1 Rp7.000
5 08319-2106B-000
SUB: 08319B2106BN000		 NUT 1 Rp4.000
6 57460-41H00-000
SUB: 57460B17C01N000		 SWITCH ASSY, STOP 1 Rp69.500
7 57211-22D01-000
SUB: 57211-22D01L000		 GRIP, LH (BLACK) 1 Rp38.500
8 57500-25G30-000
SUB: 57500-25G11-000		 LEVER ASSY, CLUTCH 1 Rp424.000
9 57620-23F00-000 .LEVER, CLUTCH 1 Rp59.000
10 57431-23F00-000 .BOLT 1 Rp8.500
11 57513-23F00-000 .NUT 1 Rp4.000
12 57441-11010-000 .ADJUSTER 1 Rp43.000
13 57442-11010-000 .NUT 1 Rp22.000
14-1 57512-21D10-000
SUB: 57512-21D00-000		 BOLT, HOLDER 2 Rp3.500
14-1 57512-21D10-000 BOLT, HOLDER 2 Rp3.500
15 37400-25G20-000
SUB: 37400-25G00-000		 SWITCH ASSY, HANDLE LH 1 Rp318.000
16 57661-25G00-000 COVER, CLUTCH LEVER 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
