Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

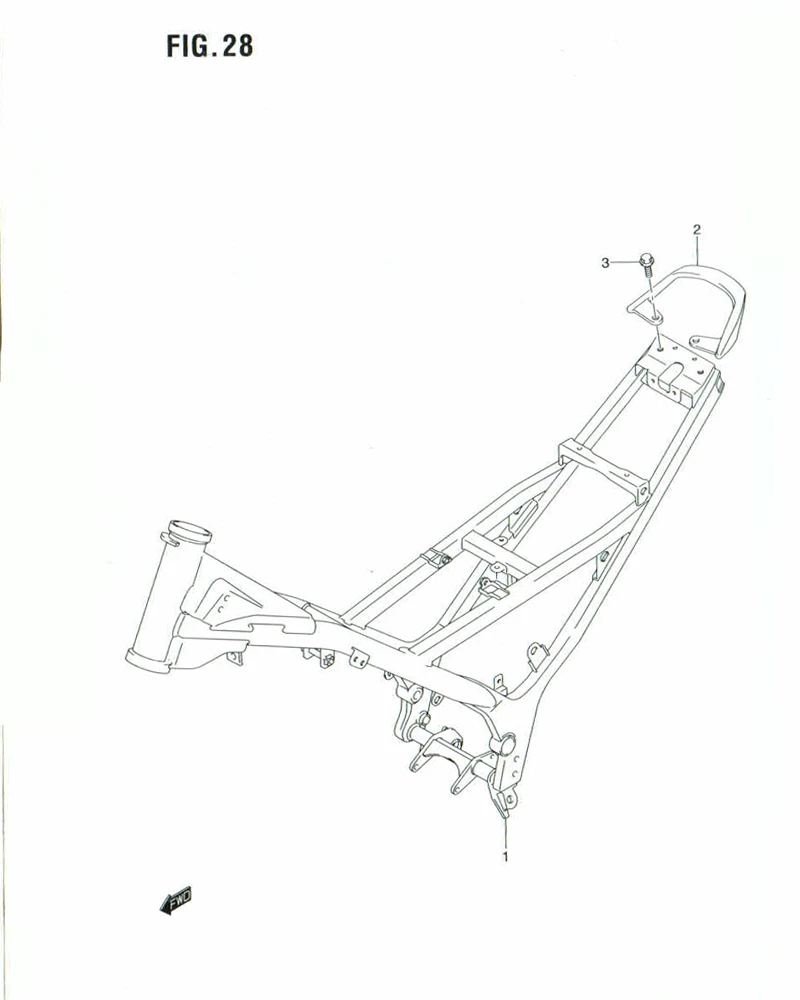

FIG. 28 FRAME

FIG. 28 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 41100-25G10-000		 FRAME 1 -
1-2 41100-25G20-000
SUB: 41100B25G20N000		 FRAME 1 Rp2.301.000
1-3 41100B25G40N000 FRAME 1 -
2-1 DISCONTINUE
SUB: 46211B25G00N000		 HANDLE, PILLION RIDER 1 -
2-2 46211-25G10-X8E
SUB: 46211B25G10N000		 HANDLE, PILLION RIDER 1 Rp374.000
3 01550-1025A-000
SUB: 01550-10253-000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
