Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

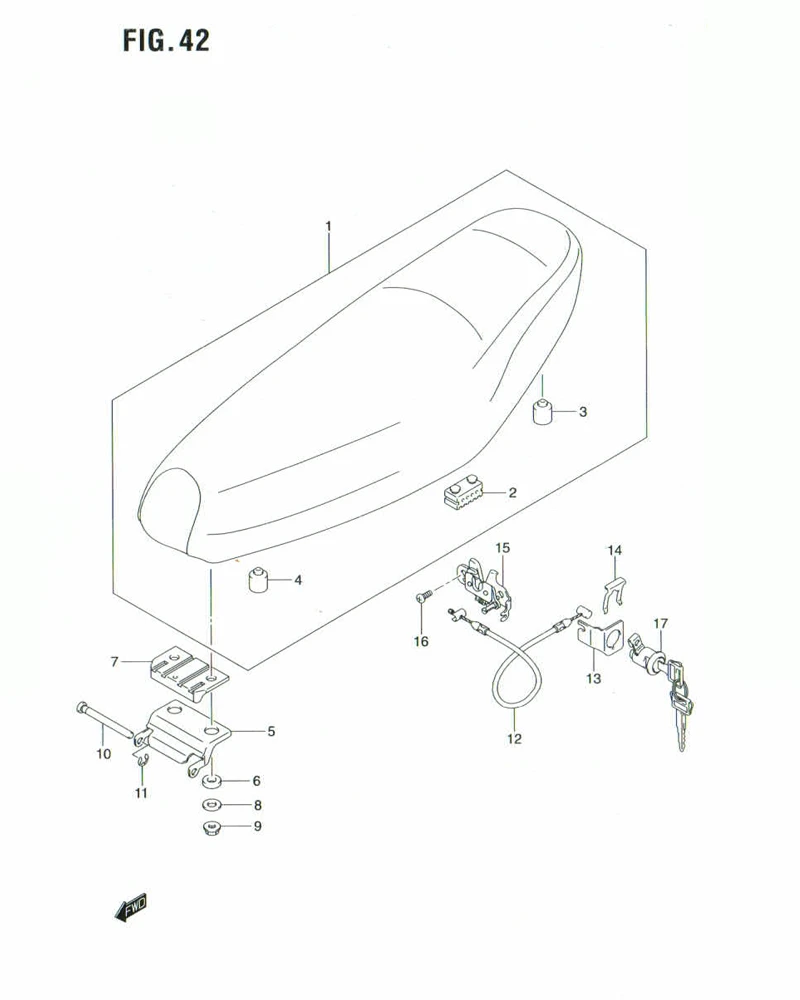

FIG. 42 SEAT

FIG. 42 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 45100-25G01-HES
SUB: 45100B25G10N000		 SEAT ASSY 1 Rp271.500
1-1 45100-25G01-HES
SUB: 45100-25G01-000		 SEAT ASSY 1 Rp271.500
2 45419B09G00N000 .CUSHION 4 -
3 45149-25G00-000
SUB: 45149B25G00N000		 .CUSHION 2 Rp6.500
4 45419B3540N-000 .CUSHION 1 -
5 45285-25G00-000
SUB: 45285B25G00N000		 BRACKET, SEAT HINGE UPPER 1 Rp24.000
6 45148-09G00-000
SUB: 45148B09G00N000		 CUSHION, SEAT HINGE LOWER 2 Rp5.000
7 45287-23F10-000
SUB: 45287C23F10C000		 CUSHION, SEAT HINGE UPPER 1 Rp11.000
8 09160-06027-000
SUB: 09160-06077-000		 WASHER, SEAT HINGE BRACKET 2 Rp6.500
9 08310-0006B-000
SUB: 08310B0006BN000		 NUT, SEAT HINGE UPPER 2 Rp4.500
10 45215-09G10-000 PIN, SEAT HINGE 1 Rp6.500
11 08332-1106A-000
SUB: 08332B1106AN000		 E RING 1 Rp8.500
12 45280-25G10-000
SUB: 45280B25G10N000		 CABLE, SEAT LOCK 1 Rp16.500
13 4528820G00N-000 GUIDE, SEAT LOCK CABLE 1 -
14 45289-11F00-000
SUB: 45289B11F00N000		 PLATE, SEAT LOCK ASSY 1 Rp4.000
15 45700-09G30-000
SUB: 45700B09G10N000		 BRACKET, STRIKER SUPPORT 1 Rp33.500
16 02112-0610B-000
SUB: 02112B0610BN000		 SCREW 2 Rp5.500
17-1 95700-14F60-000
SUB: 95700B14810N000		 LOCK SET, SEAT 1 Rp75.500
17-2 95700-14F60-000
SUB: 95700B14F00N000		 LOCK ASSY, SEAT 1 Rp75.500
18 45160-25G10-000
SUB: 45160B25G10N000		 COVER COMP SEAT TRIM 1 Rp168.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
