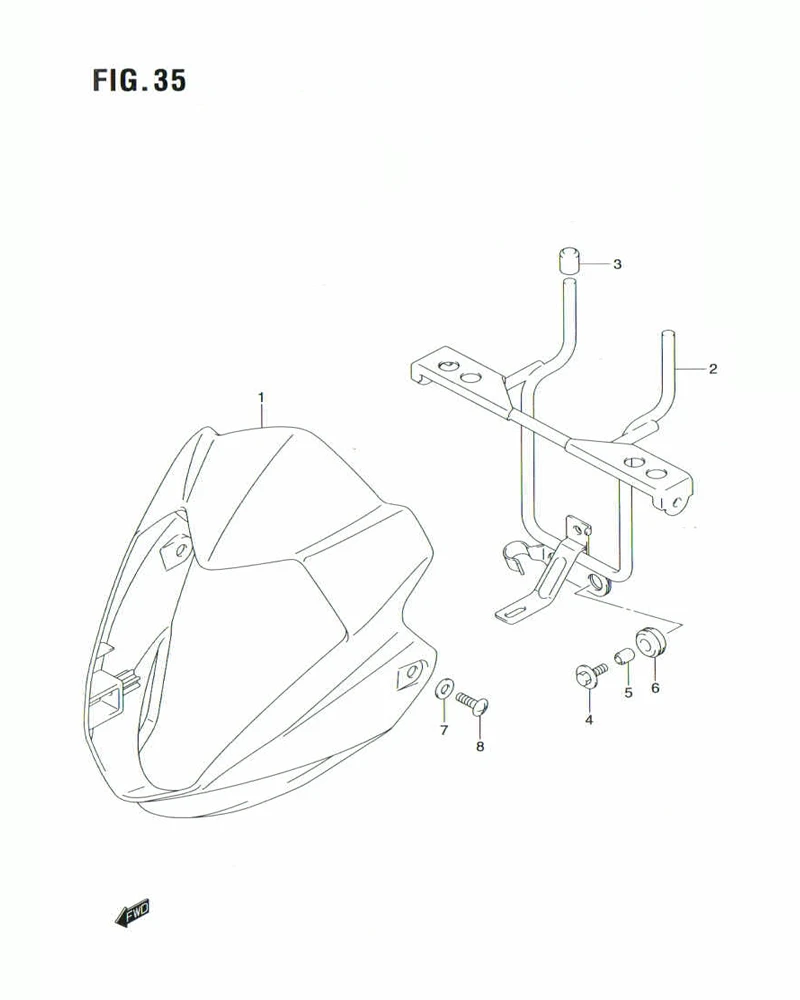

FIG. 35 HEADLAMP HOUSING (MODEL K3/K6)

FIG. 35 HEADLAMP HOUSING (MODEL K3/K6)
No No. Part Description Qty Price Per Pcs Remarks
1 51811B25G00N000 HOUSING, HEADLAMP 1 -
2 51850-25G20-000
SUB: 51850B25G10N000		 BRACE, HOUSING 1 Rp58.000
3 51831-25G00-000 CUSHION 2 Rp14.500
4 09116-06152-000 BPLT, LOWER 2 Rp12.500
5 51832-25G00-000
SUB: 51832B25G00N000		 SPACER 2 Rp6.500
6 09320-09026-000
SUB: 09320B09026N000		 CUSHION 2 Rp12.500
7 09169-06011-000 WASHER 2 Rp42.000
8 09139-06145-000
SUB: 09139B06145N000		 SCREW 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
