Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

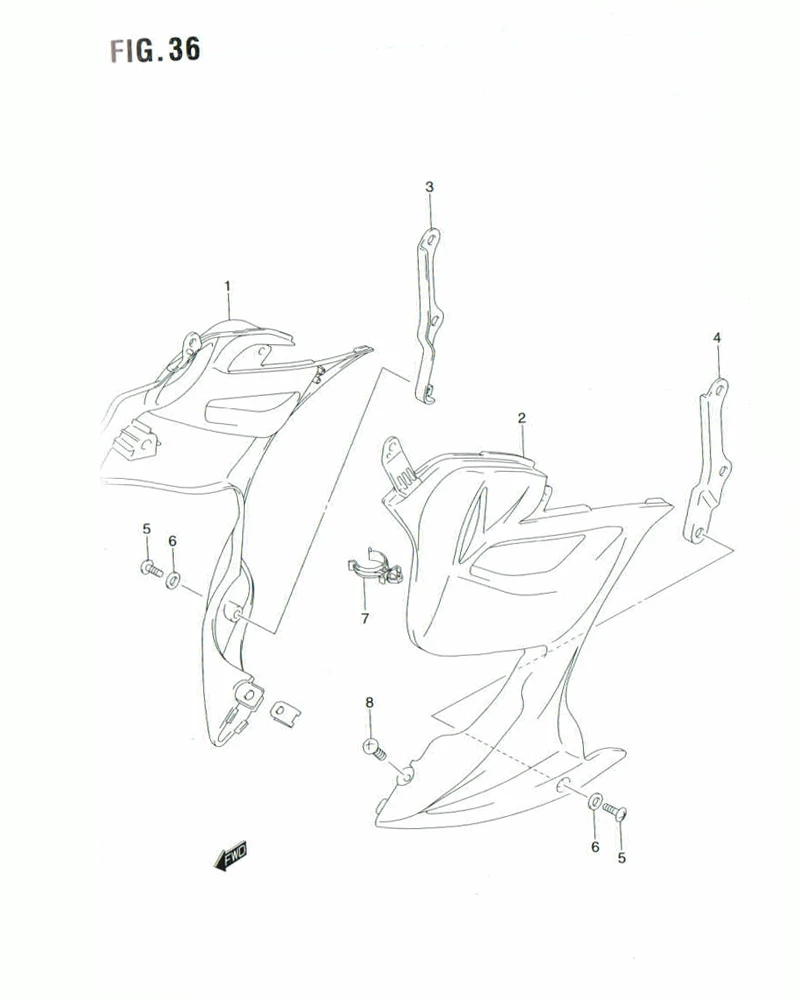

FIG. 36 LOWER COWLING

FIG. 36 LOWER COWLING
No No. Part Description Qty Price Per Pcs Remarks
1 94471B25G10N000 COWLING, LOWER RH 1 -
2 94481B25G10N000 COWLING, LOWER LH 1 -
3 94510-25G10-000
SUB: 94510B25G10N000		 BRACKET, SIDE RH 1 Rp12.500
4 94520-25G10-000
SUB: 94520B25G10N000		 BRACKET, SIDE LH 1 Rp12.500
5 09139-06145-000
SUB: 09139B06145N000		 SCREW, NO.1 4 Rp6.500
6 09169-06011-000 WASHER 2 Rp42.000
7 48211-25G01-000
SUB: 48211B25G01N000		 CLIP 2 Rp6.000
8 02142-0612A-000
SUB: 02142B06123N000		 SCREW, NO.2 2 Rp4.000
9 94541-25G00-000
SUB: 94541B25G00N000		 BRACKET, SIDE UPPER 2 Rp7.500
10 09136-05052-000
SUB: 09136B05052N000		 SCREW, UPPER 1 Rp6.500
11 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000
12 03541-0516A-000
SUB: 03541B0516BN000		 SCREW, LOWER 1 Rp3.500
13 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
