Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

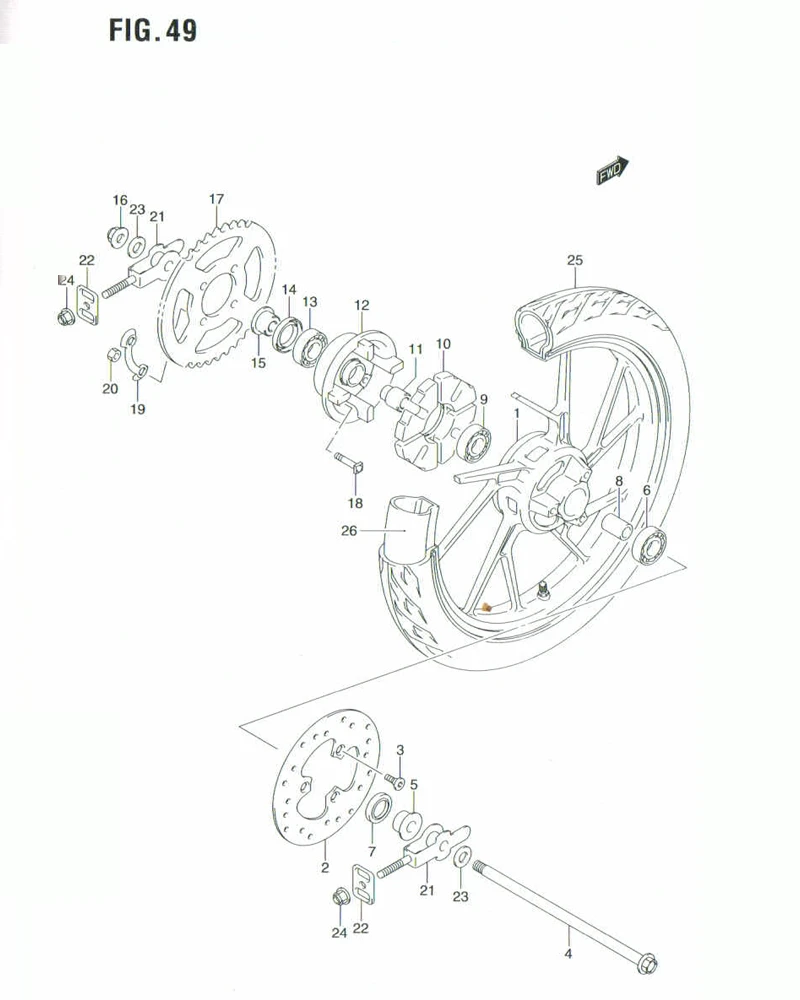

FIG. 49 REAR WHEEL

FIG. 49 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 64111B25G20N000		 WHEEL, REAR (17X1.85) 1 -
1-1 64111-25G00-000 WHEEL, REAR (17X1.85) 1 -
2-1 69211-25G40-000
SUB: 69211B25G00N000		 DISC, REAR BRAKE 1 Rp240.500
2-2 69211-25G40-000
SUB: 69211B25G10N000		 DISC, REAR BRAKE 1 Rp240.500
3 59218-09G10-000
SUB: 59218B09G00N000		 BOLT 3 Rp7.000
4 64711B25G00NN AXLE, REAR 1 -
5 64741-25G00-000
SUB: 64741B25G00N000		 SPACER, REAR AXLE, RH 1 Rp18.500
6 08113-63017-000
SUB: 08113-63010L000		 BEARING, RH 1 Rp29.500
7 09285-25008-000
SUB: 09285-25003L000		 SEAL, OIL (25X40X6) 1 Rp8.000
8 09180-12086-000
SUB: 09180B12086N000		 SPACER, BEARING 1 Rp44.000
9 08143-62017-001
SUB: 08143-62017L000		 BEARING, LH 1 Rp24.500
10 64651-30D00-000
SUB: 64651B30D00N000		 ABSORBER, REAR HUB SHOCK 1 Rp27.000
11 64733-43000-000
SUB: 64733B43000N000		 RETAINER, REAR SPROCKET DRUM 1 Rp15.500
12 64611-39200-000
SUB: 64611B39200N000		 DRUM, SPROCKET MOUNTING 1 Rp122.000
13 08113-62037L000 BEARING 1 Rp34.000
14 09285-25008-000
SUB: 09285-25003L000		 OIL SEAL (25X40X6) 1 Rp8.000
15 64741-25G00-000
SUB: 64741B25G00N000		 SPACER, REAR SPROCKET DRUM 1 Rp18.500
16 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
17 64511-21D13-000
SUB: 64511B21D13N000		 SPROCKET, REAR (NT:43) 1 Rp148.000
18 09105-08011-000
SUB: 09105-08011L000		 BOLT (8X36) 4 Rp6.500
19 09169B088011N LOCK WASHER 2 -
20 08310-0008B-000 NUT 4 Rp15.500
21 61410-28F00-000
SUB: 61410B28F00N000		 ADJUSTER, CHAIN 2 Rp26.000
22 61421-05F00-000
SUB: 61421B05F00N000		 PLATE, CHAIN ADJUSTER GUIDE 2 Rp24.000
23 09160-12085-000
SUB: 09160B12085N000		 WASHER 2 Rp6.500
24 08319-3108A-000
SUB: 08319B3108AN000		 NUT 2 Rp4.000
25 65110-20GG0-000
SUB: 65110B20G20N000		 TIRE, REAR (80/90-17 44P)IRC 1 Rp329.000
26 DISCONTINUE
SUB: 65200B20G81N000		 TUBE ASSY, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
