Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 28 FRAMEFIG. 29 STAND/BRAKE PEDALFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 HEADLAMP HOUSING (MODEL K3/K6)FIG. 35A HEADLAMP HOUSING (MODEL K9)FIG. 36 LOWER COWLINGFIG. 37 FRONT FENDERFIG. 38 HANDLEBARFIG. 39 HANDLE LEVERFIG. 39A HANDLE SWITCH (FU150SCDK6/K9)FIG. 40 REAR FENDERFIG. 41 LABELFIG. 42 SEATFIG. 43 FRONT DAMPERFIG. 44 STEERING STEMFIG. 45 FRONT WHEELFIG. 46 FRONT CALIPERFIG. 47 FRONT MASTER CYLINDERFIG. 48 REAR SWINGING ARMFIG. 49 REAR WHEELFIG. 50 REAR CALIPERFIG. 51 REAR MASTER CYLINDER

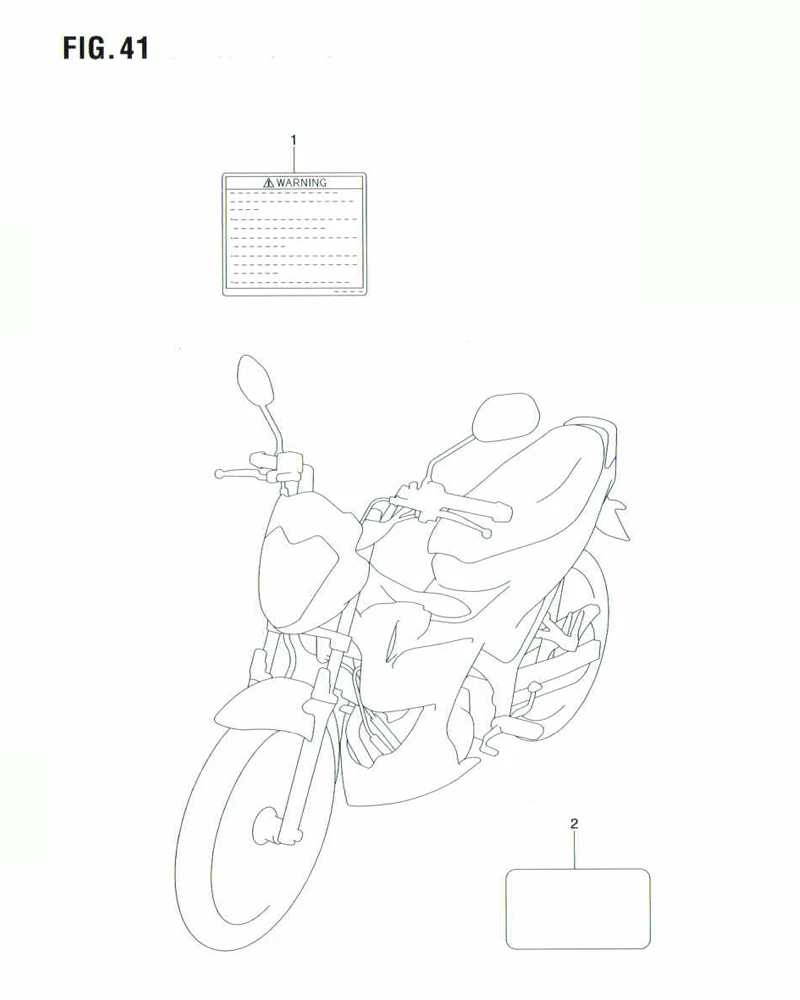

FIG. 41 LABEL

FIG. 41 LABEL
No No. Part Description Qty Price Per Pcs Remarks
1 68319-29F01-000
SUB: 68319-29F00-000		 LABEL, WARNING 1 Rp43.500
2 68332-25G00-000 LABEL, TIRE 2 -
3-1 99011-47E60-12A MANUAL, OWNER'S 3 -
3-2 99011-47E61-12A MANUAL, OWNER'S 3 -
3-3 99011-47E61-SCD MANUAL, OWNER'S 3 -
3-4 99011-47E62-SCD MANUAL, OWNER'S 3 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
