Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

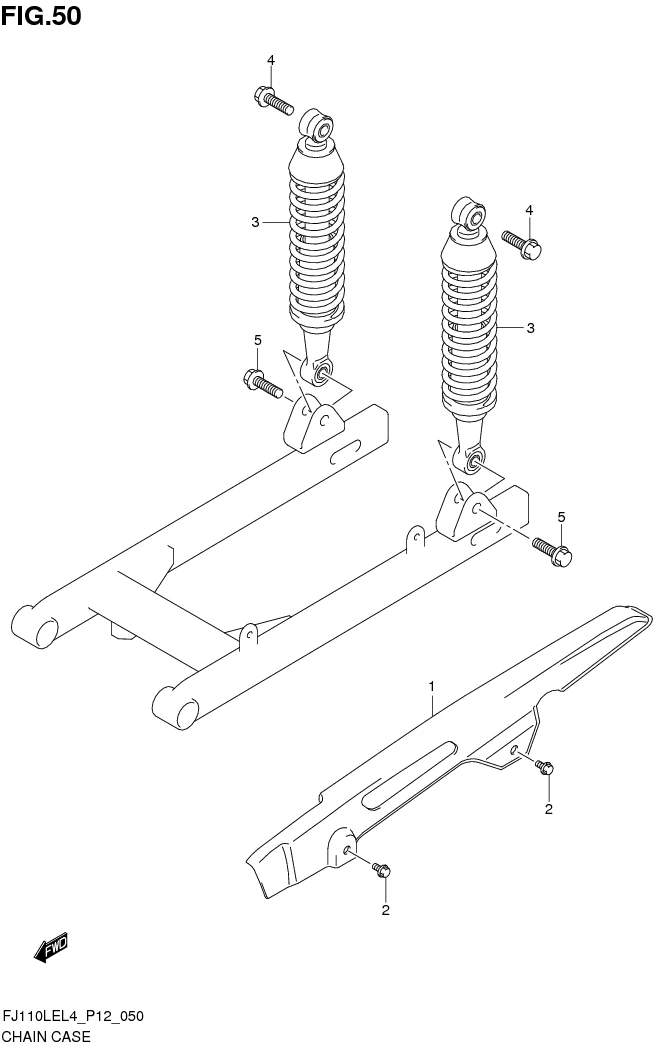

FIG. 50 CHAIN CASE

FIG. 50 CHAIN CASE
No No. Part Description Qty Price Per Pcs Remarks
1 61311-22J00-000
SUB: 61311B22J00N000		 CASE, CHAIN 1 Rp26.000
2 09111-06107-000
SUB: 09111B06107N000		 BOLT (6X12) 2 Rp4.000
3 62100-22J00-019
SUB: 62100B22J00N019		 ABSORBER ASSY, REAR SHOCK (BLACK) 2 Rp293.500
4 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 2 Rp5.500
5 09103-10229-000
SUB: 09103B10229N000		 BOLT (10X32) 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
