Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

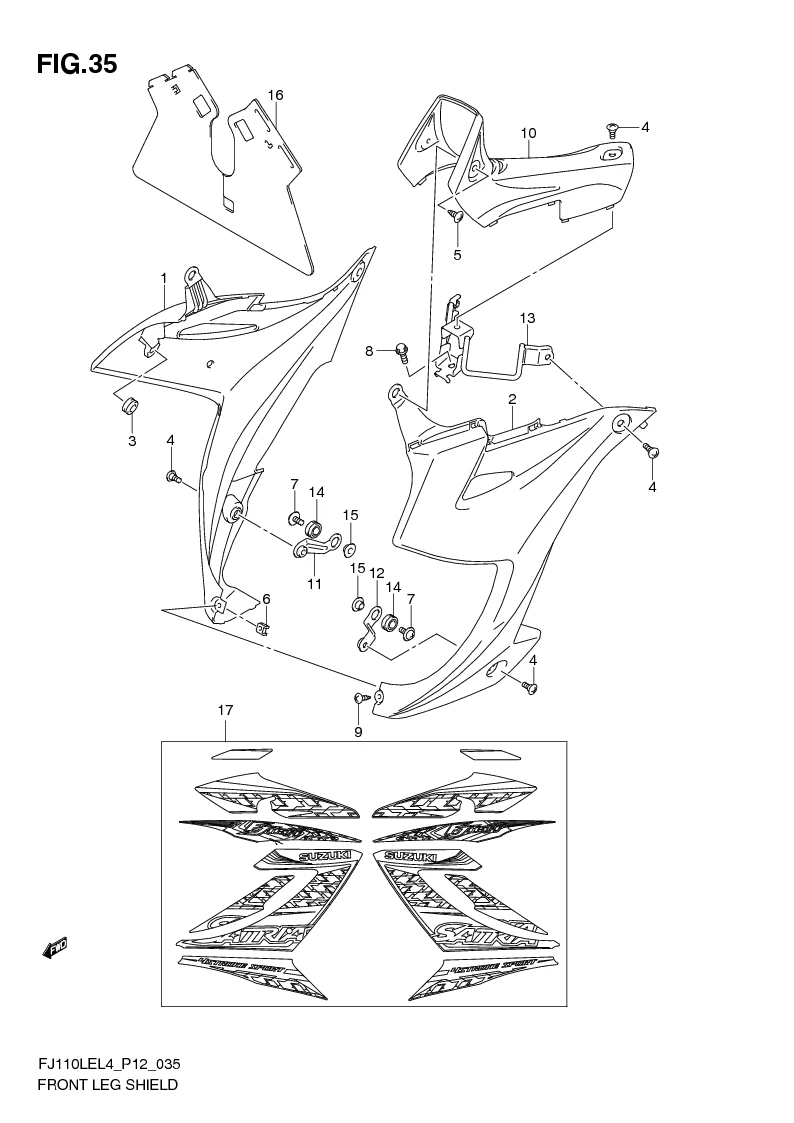

FIG. 35 FRONT LEG SHIELD

FIG. 35 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111-32J00-YVU SHIELD, LEG RH (BLACK)FOR YVU,AFJ 1 Rp289.500 FOR YVU,AFJ
2 48121-32J00-YVU SHIELD, LEG LH (BLACK)FOR YVU,AFJ 1 Rp289.500 FOR YVU,AFJ
3 48278-16H00-000 CUSHION, LEG BRACE 2 Rp38.000
4 53274-09G00-000
SUB: 53274B09G00N000		 SCREW 5 Rp7.000
5 09139-06083-000
SUB: 09139B06083N000		 SCREW (6X16) 2 Rp6.500
6 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000
7 09136-06158-000
SUB: 09136B06158N000		 SCREW (6X16) 2 Rp7.000
8 01550-0616A-000 BOLT 1 Rp3.500
9 03541-0516A-000 SCREW 1 Rp3.500
10-1 48131-32J00-PV5 SHIELD, LEG CENTER (RED)FOR AFJ 1 Rp234.500 FOR AFJ
10-2 48131-32J00-YVU SHIELD, LEG CENTER (BLACK)FOR YVU 1 Rp234.500 FOR YVU
11 48140-32J00-000 BRACKET, LEG SHIELD RH 1 Rp6.000
12 48150-32J00-000 BRACKET, LEG SHIELD LH 1 Rp6.000
13 48160-32J00-000 BRACE, LEG SHIELD CENTER 1 Rp29.000
14 48278-16H10-000
SUB: 48278B16H10N000		 CUSHION, LEG SHIELD BRACE 2 Rp11.000
15 09180-06325-000
SUB: 09180B06325N000		 SPACER (6.2X8.4X6.9) 2 Rp5.500
16 48139-32J00-000 GUARD, MAD 1 Rp26.000
17-1 68000-32J00-AFJ STRIPPING SET (RED/BLACK)FOR AFJ 1 Rp152.000 FOR AFJ
17-2 68000-32J00-YVU STRIPPING SET (BLACK)FOR YVU 1 Rp152.000 FOR YVU

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
