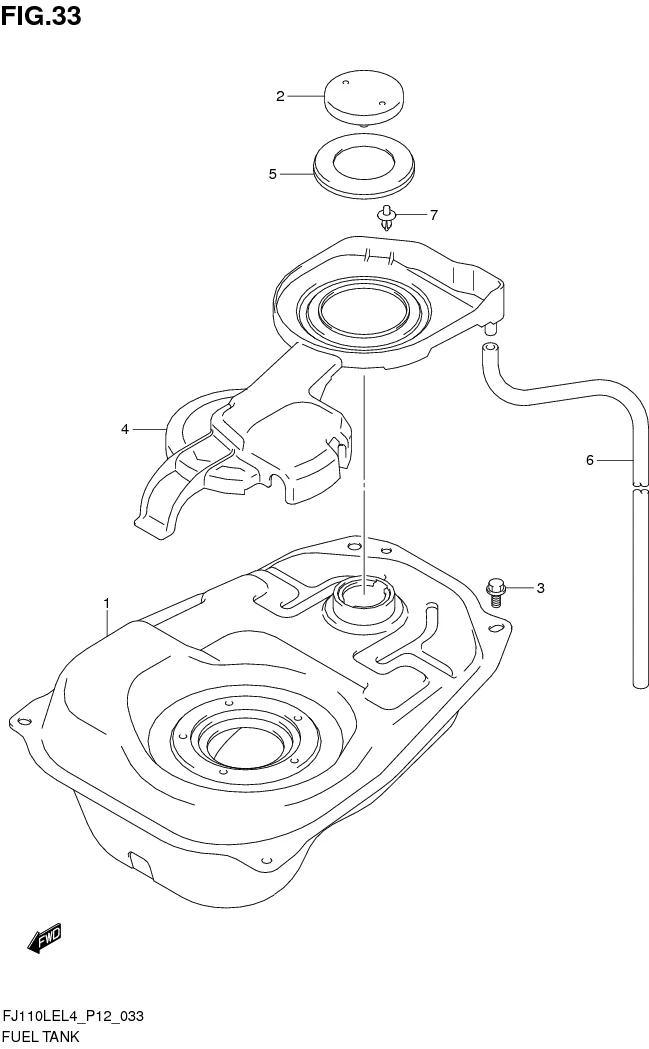

FIG. 33 FUEL TANK

FIG. 33 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-22J20-000
SUB: 44110B22J00N000		 TANK, FUEL 1 Rp283.500
2-1 44210-09J00-000 CAP, FUEL TANK FILLER CNC 1 Rp19.500 CNC
2-2 44210-09J00-000
SUB: 44210-09J10-000		 CAP, FUEL TANK FILLER INDTA PRATAMJAYA 1 Rp19.500 INDTA PRATAMJAYA
3 01550-0612A-000 BOLT 4 Rp3.500
4 DISCONTINUE
SUB: 44271B22J00N000		 COVER, FUEL TANK 1 -
5 44261-41H10-000 RUBBER, FUEL TANK INLET 1 Rp5.500
6 09352-70L05-450
SUB: 09352B70L05N450		 HOSE (7X11X450) 1 Rp9.500
7 09409-06314-5PK CLIP (BLACK) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
