Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

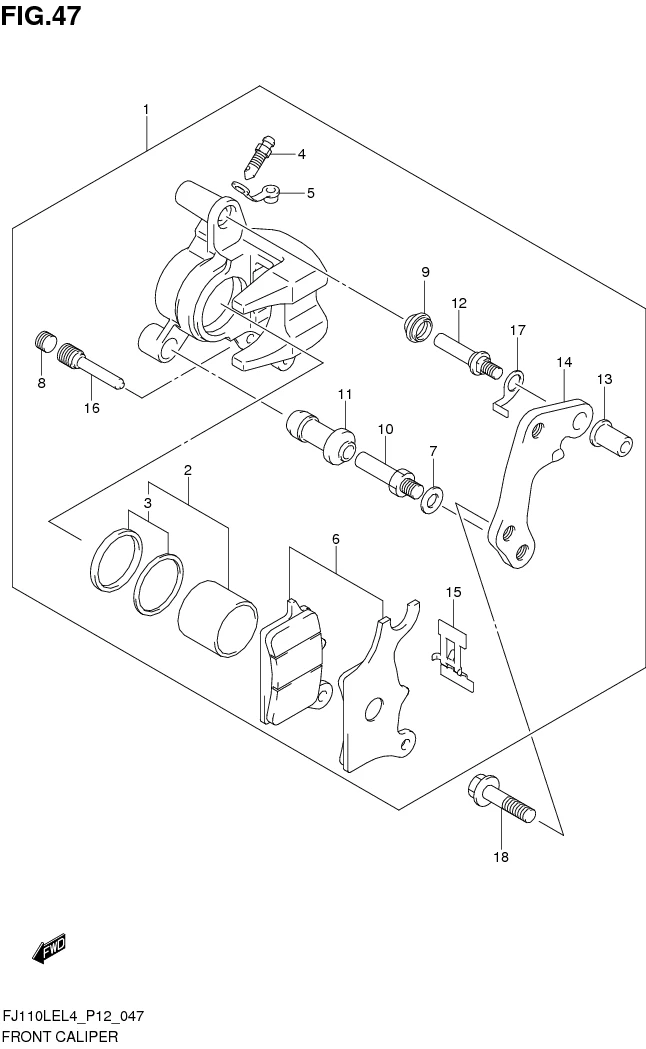

FIG. 47 FRONT CALIPER

FIG. 47 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 59100-45HA0-000		 CALIPER ASSY, FRONT 1 -
2 59100-41840-000
SUB: 59100B41840N000		 .PISTON SET 1 Rp150.500
3 59100-38860-000
SUB: 59100B38860N000		 ..SEAL SET, PISTON 1 Rp37.500
4 59121-01A00-000
SUB: 59121-01A00L000		 .BLEEDER 1 Rp14.500
5 59122-01A00-000
SUB: 59122B01A00N000		 .CAP, BLEEDER 1 Rp3.000
6 59101-45810-000 .PAD SET 1 Rp101.000
7 59314-13A00-000
SUB: 59314B13A00N000		 .WASHER 1 Rp3.000
8 59146-21E10-000
SUB: 59146B21E10N000		 .PLUG, PIN 1 Rp5.500
9 59303-14500-000
SUB: 59303B14500N000		 .BOOT 1 Rp12.500
10 59382-13A00-000
SUB: 59382B13A00N000		 .PIN 1 Rp13.500
11 59386-13A00-000
SUB: 59386B13A00N000		 .BOOT 1 Rp14.000
12 59387-41HA0-000
SUB: 59387B41HA0N000		 .PIN 1 Rp15.000
13 59388-41HA0-000
SUB: 59388B41HA0N000		 .NUT 1 Rp13.000
14 DISCONTINUE
SUB: 59351B45H10N000		 .BRACKET 1 -
15 59115-41HA0-000
SUB: 59115B41HA0N000		 .SPRING, PAD 1 Rp28.500
16 59345-41HA0-000
SUB: 59345B41HA0N000		 .PIN, HANGER 1 Rp29.500
17 59133-41HA0-000
SUB: 59133B41HA0N000		 .RETAINER, BRACKET 1 Rp7.500
18 01550-0835A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
